Vantec Multi-Size M.2 NVMe to U.2 (SFF-8639) 2.5"" SSD Adapter (MRK-NVM2U2-BK), Convert M.2 NVMe into U.2 not for SATA, Black

vantec multi-size m.2 nvme to u.2 (sff-8639) 2.5"" ssd adapter (mrk-nvm2u2-bk), convert m.2 nvme into u.2 not for sata, black

item condition: new

brand: vantec
model: mrk-nvm2u2-bk
color: black
product dimension: 3.94 x 2.76 x .37

product information

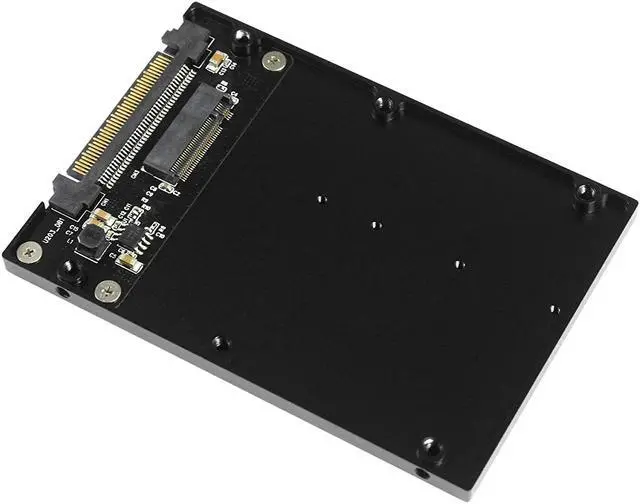

• convert m.2 nvme (pcie gen3 x4) module into a u.2 (sff-8639) 2.5" ssd factor with 9.5mm thickness; same standard size, u.2 interface location, and mounting hole locations as u.2 drive

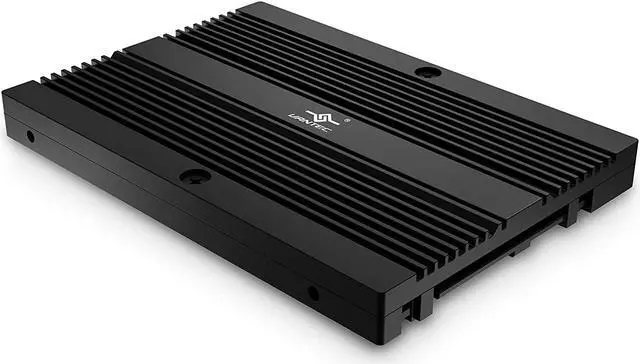

• converter design to fit any u.2 backplanes that enable mounting u.2 2.5” ssd and mobile rack; whole aluminum case for excellent heat dissipation; web like fin and use of thermal pad for heat management
• support hot-swapping (u.2 host controller must support hot-swapping); support m.2 nvme length of 2280, 2260, 2242, and 2230
• 8 mounting holes, 4 on the bottom, two on each side like standard u.2 2.5” ssd form factor; no drivers required, multi-os compatibility: windows, os x, linux
• please note: u.2 is not sata and is not plug or compatible with sata.
• connectivity technology: external u.2 (sff-8639)

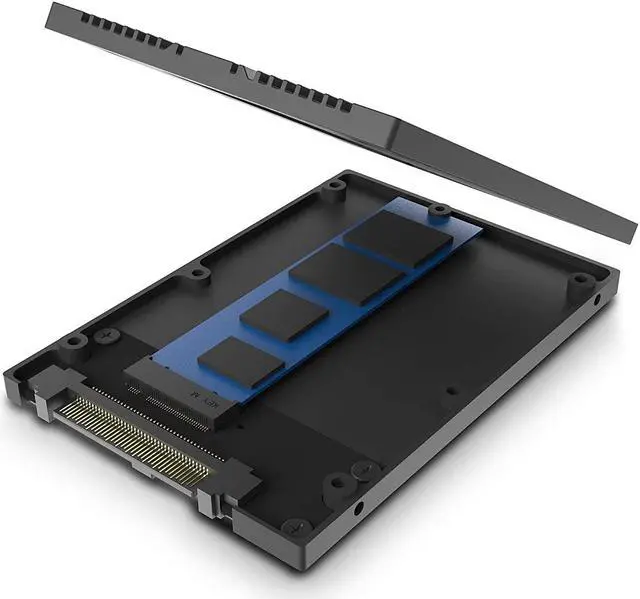

the multi-size m.2 nvme to u.2 (sff-8639) 2.5” ssd converter/adapter converts an m.2 nvme module into a u.2 2.5” drive form factor with a thickness of 9.5mm. the cg dimension and u.2 interface are on the same location as a standard u.2 2.5” drive allowing for easy insertion into the u.2 mounting bracket and u.2 rackmount backplane. the unique cg is mill out of aluminum using the cnc method for excellent heat management; it comes with a thermal pad and the fin-like design on the cg to help dissipate heat. this converter allows for different size m.2 nvme module 80mm, 60mm, 42mm, and 30mm in length to be fitted into the converter. the converter is hot-swappable ready and comes with many more features. hot-swap requires a hotswap ready u.2 host
