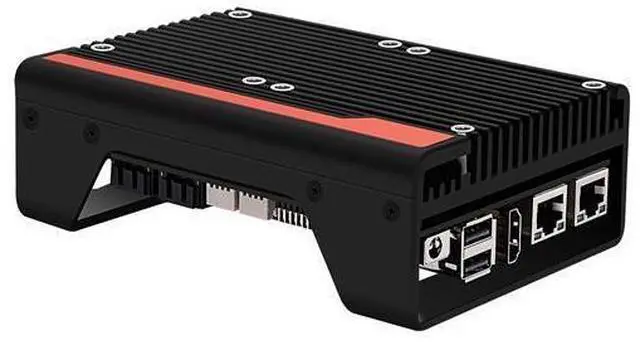

HUNSN Micro Firewall Appliance, Mini PC, VPN, Router PC, N100, RJ57, 2 x 2.5GbE LAN, 2 x HDMI, DP, Designed for DIY / 3D Printing Enthusiasts, Barebone, NO RAM, NO Storage, NO System
- HUNSN RJ57 equipped with processor n100, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support aes new instructions
- Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
- Compact aluminum, 12v3a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
- RJ57 designed with power on/off, clr cmos, tf slot for data/some system boot, type-c, 4 x usb2.0, 2 x hdmi1.4, dp 1.4, dc_in, 2 x lan, size at 144 x 100 x 48mm, 0.8kgs
- Quiet, fanless design silent 100%, 0.00db noise makes an ideal deployment in small offices, open source drawings suitable for 3D printing DIY enthusiasts
+
+
Overview
Specs
Reviews
Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ57
Chassis: Aluminum
CPU: Intel® Processor N100 6M Cache, up to 3.40 GHz
Memory: 1 x SO DIMM DDR5 4800 MT/s, up to 32GB
Storage: 1 x M.2 2242/2280 PCIe3.0 x1 NVME SSD, not support internal SATA SSD/HDD,
support knock-out holes DIY for external 2.5 Inch or above SATA SSD/HDD, 2 x SATA3.0 socket 4pin power
Network Card: Intel 2.5GbE I226-V

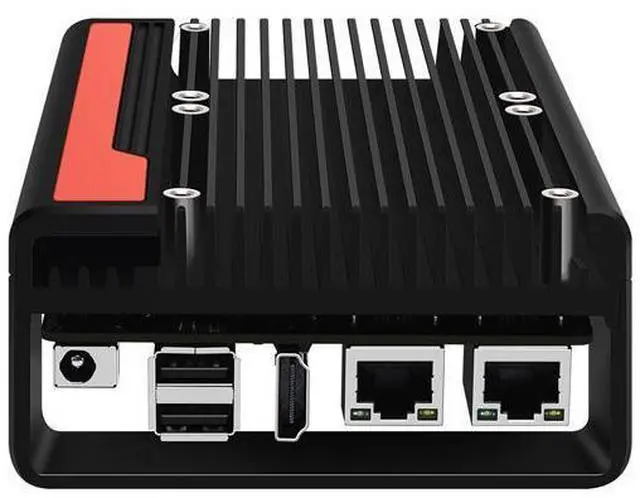

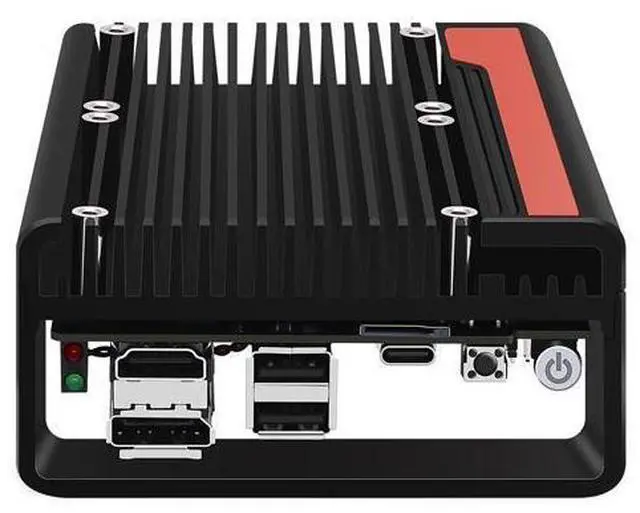

I/O Interface: Power ON/OFF, CLR CMOS, TF Slot for data/some system boot, Type-C, 4 x USB2.0, 2 x HDMI1.4, DP 1.4, DC_IN, 2 x LAN

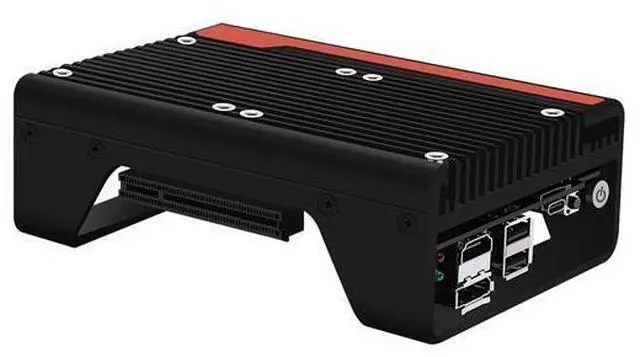

Expansion: 1 x PCle x8 slot x4 signal, 1 x TPM pin, 1 x COM pin
Power: DC100-240V AC/50-60hz, 12V-19V, 12V3A
Operating Temperature: -20°C~70°C
Storage Temperature: -20°C~75°C
Relative Humidity: 5%~90% non-condensing
TDP: 6W

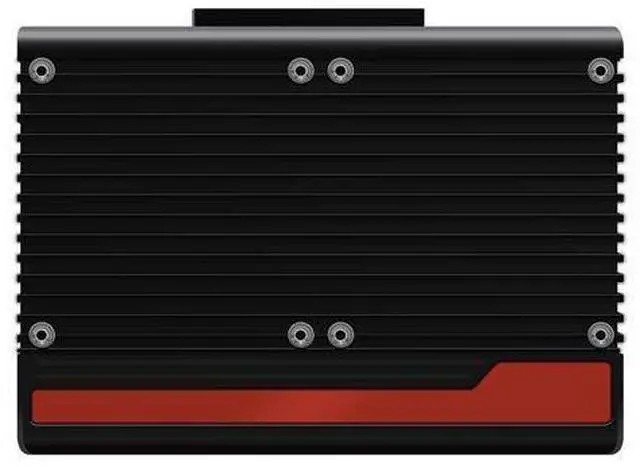

Cooling system: Fanless, support to add 1 x small 4PIN with temperature control fan, 1 x small 3pin fan, in order to better
cater to the needs of the DIY/3D printing community, the heat dissipation upper cover is embedded with
8 x M3 stainless copper pillars by default, which are compatible with 75mm fans on the market
and can achieve higher power consumption performance
Size: 144 x 100 x 48mm
Weight: 0.8kgs
Packing List: HUNSN RJ57 firewall appliance, power supply, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
Model Number: HUNSN RJ57
Chassis: Aluminum
CPU: Intel® Processor N100 6M Cache, up to 3.40 GHz
Memory: 1 x SO DIMM DDR5 4800 MT/s, up to 32GB
Storage: 1 x M.2 2242/2280 PCIe3.0 x1 NVME SSD, not support internal SATA SSD/HDD,
support knock-out holes DIY for external 2.5 Inch or above SATA SSD/HDD, 2 x SATA3.0 socket 4pin power
Network Card: Intel 2.5GbE I226-V
I/O Interface: Power ON/OFF, CLR CMOS, TF Slot for data/some system boot, Type-C, 4 x USB2.0, 2 x HDMI1.4, DP 1.4, DC_IN, 2 x LAN
Expansion: 1 x PCle x8 slot x4 signal, 1 x TPM pin, 1 x COM pin
Power: DC100-240V AC/50-60hz, 12V-19V, 12V3A
Operating Temperature: -20°C~70°C
Storage Temperature: -20°C~75°C
Relative Humidity: 5%~90% non-condensing
TDP: 6W
Cooling system: Fanless, support to add 1 x small 4PIN with temperature control fan, 1 x small 3pin fan, in order to better
cater to the needs of the DIY/3D printing community, the heat dissipation upper cover is embedded with
8 x M3 stainless copper pillars by default, which are compatible with 75mm fans on the market
and can achieve higher power consumption performance
Size: 144 x 100 x 48mm
Weight: 0.8kgs
Packing List: HUNSN RJ57 firewall appliance, power supply, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
