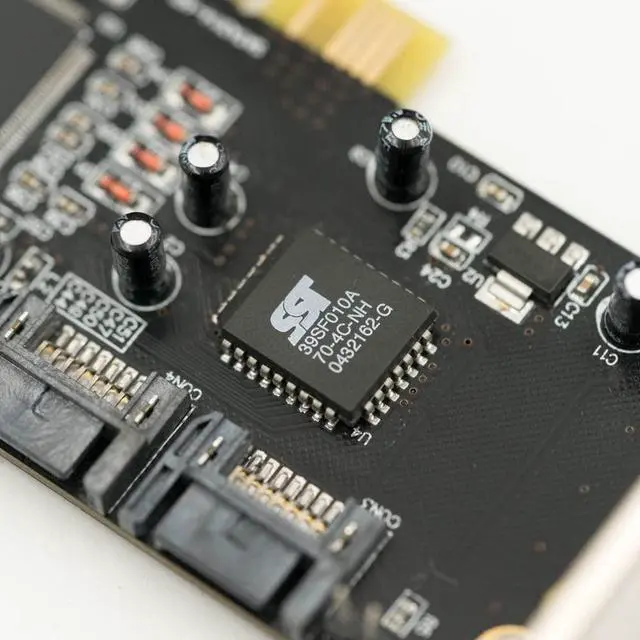

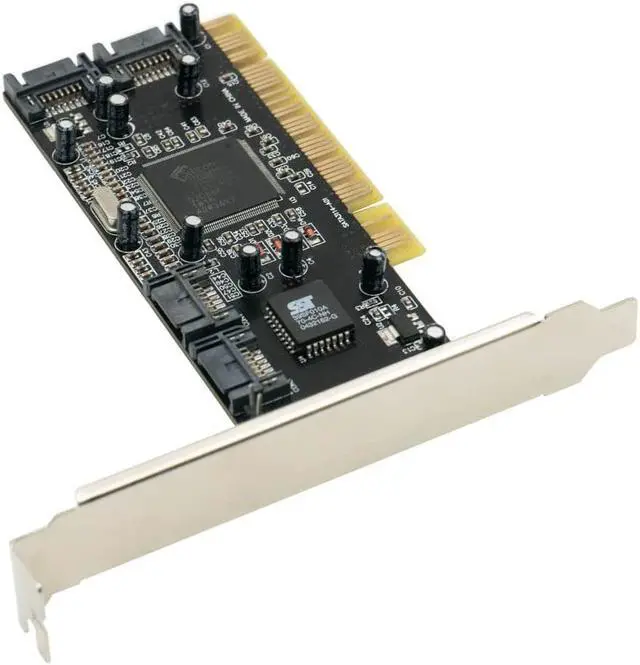

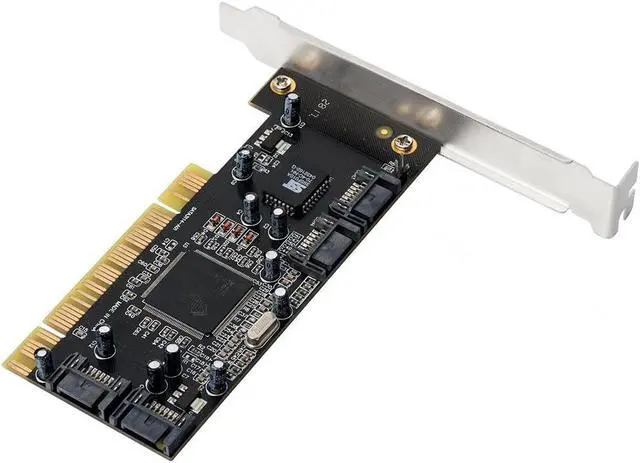

CORN 4 Ports PCI SATA Raid Controller Internal Expansion Card, PCI to SATA Adapter Converter for Desktop PC Support HDD SSD
- Add four independent SATA-I ports to your PCI equipped computer and enjoy the benefits of the optional software RAID configuration for added speed and/or data security with this adapter card.(Note it is PCI card,NOT PCIE card ).
- Plug the SATA RAID PCI card into the PCI slot on your motherboard, and connect SATA devices to the ports on the PCI card using the cables provided, or standard SATA cables of adequate length.
- SIL3114 chipset and supports two modes: 32-bit at66MHZ and 64-bit at 133MHZ.
+
+
Overview
Specs
Reviews
Features:

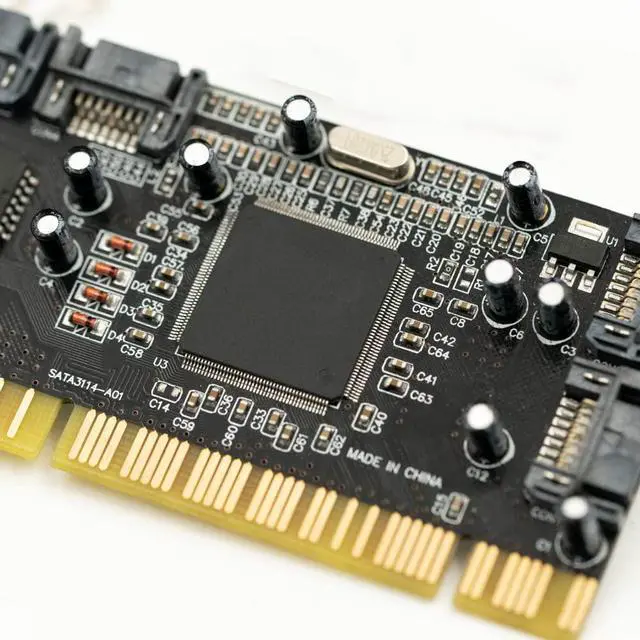

Stable and reliant Silicon Chipset SIL3114
PCI specification revision 2.3 compliant w/ 32-bit 33/66Mhz host interface
Serial ATA specification revision 1.0 compliant
Data transfer rate up to 150MB/s. (1.5Gbps)
Connect up to 4 SATA drives
Plug & Play connection
Software application included
Raid Function: Integrated SATA Transport, Link logic, and PHY layer
Supports 4 Independent Serial ATA channels
Supports RAID 0, 1, 5, 0+1, JBOD12
Supports 256-byte transmit and receive FIFOs
Supports programmable and EEPROM, FLASH & EPROM loadable PCI class mode
Supports ATAPI devices: CD-ROM, DVD-ROM, etc
48-Bit sector addressing Virtual DMA
Stable and reliant Silicon Chipset SIL3114
PCI specification revision 2.3 compliant w/ 32-bit 33/66Mhz host interface
Serial ATA specification revision 1.0 compliant
Data transfer rate up to 150MB/s. (1.5Gbps)
Connect up to 4 SATA drives
Plug & Play connection
Software application included
Raid Function: Integrated SATA Transport, Link logic, and PHY layer
Supports 4 Independent Serial ATA channels
Supports RAID 0, 1, 5, 0+1, JBOD12
Supports 256-byte transmit and receive FIFOs
Supports programmable and EEPROM, FLASH & EPROM loadable PCI class mode
Supports ATAPI devices: CD-ROM, DVD-ROM, etc
48-Bit sector addressing Virtual DMA
