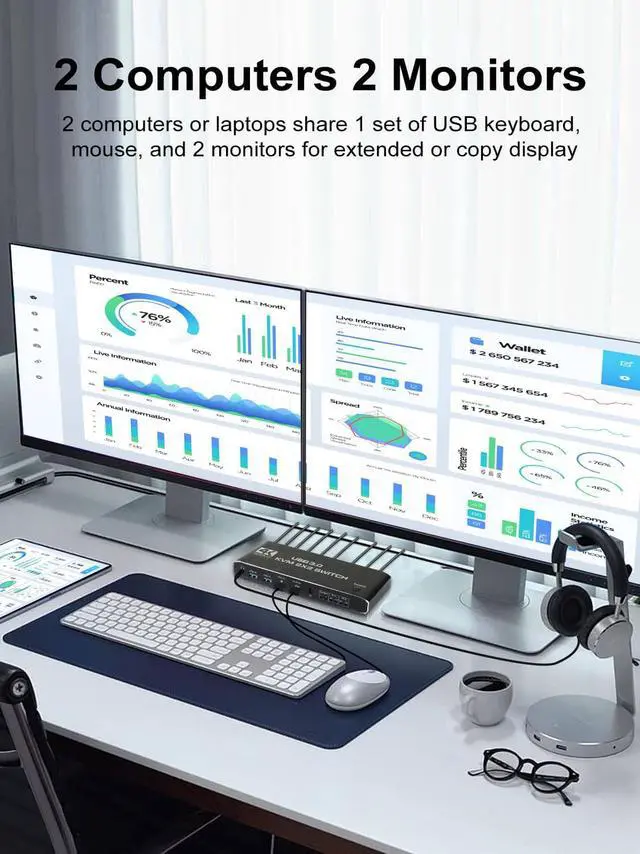

AUTYUE KVM Switches allows you to share the mouse and keyboard dual display with two computers and is an excellent accessory for home, office or games. It can share a single USB keyboard, USB mouse and HDMI monitor with two systems, saving space on the desk.
· Computers or laptops sharing dual monitors extend or copy displays.
· USB3.0 port would Works with all USB 3.0 devices, USB 3.0 supports ultra-fast USB 3.0 data transfer rates of up to 5Gb/s (10 times faster than USB 2.0)
· Support 4K60Hz HDCP2.3 3.5mm JACK (PCM/LPCM) audio output.
1. Turn off all devices and unplug all the cables;
2. Plug HDMI cables and USB cables into KVM switch and your computers/laptops ( HDMI cables not included):
Please check the PC1-"HDMI IN 1 & IN 2", and PC2-"HDMI IN 1 & IN 2"USB IN1 & IN2 is corresponding, HDMI OUTPU 1, HDMI OUTPU 2 is corresponding, NOT support mixed insertion.
PC1 HDMI IN 1 + PC1 HDMI IN 2 +PC1 USB IN=PC1
PC2 HDMI IN 1 + PC2 HDMI IN 2 +PC2 USB IN=PC1
3. Plug mouse and keyboard into KVM switch;
4. Plug HD-MI cables and USB cables into KVM switch and monitors;
5. Plug power supply into KVM switch;
6. Boot computers/laptops.

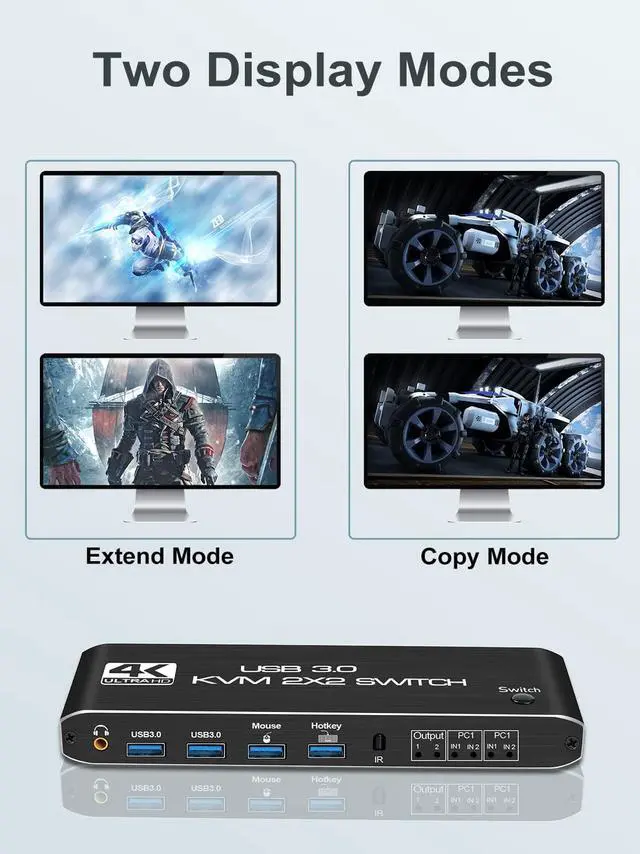

This HDMI kvm switch kit support mirror mode,extend mode and crisscross mode
- This dual monitor KVM has dedicated mouse and keyboard ports and 2 extra USB 3.0 hubs, supporting a variety of USB devices such as printers, hard disks, cameras, etc. Plug and play, no driver required.
- KVM Switch comes with a 3.5mm Audio Jack port , which can be inserted into a 3.5mm device.
- Button Switch: freely switching between 2 computers by pressing a button.
- Hotkey switch: Ctrl+shift+1/2=PC1 /2,Ctrl+Ctrl=PC1/2; Ctrl+Shift+K= enable/disable hotkey function.
- Remote Control: The included remote control can quickly and easily switch the host.
Features:
- Support HDMI 2.0b HDCP 2.2
- Resolution: Support 1080P/1080@144Hz, 3840x2160p, 4K/60Hz resolution, adaptive screen resolution
- Support system: Windows XP, Windows7, Windows10, Apple MAC, Linux, Unix and other operating systems
- Supports high current hard disk devices

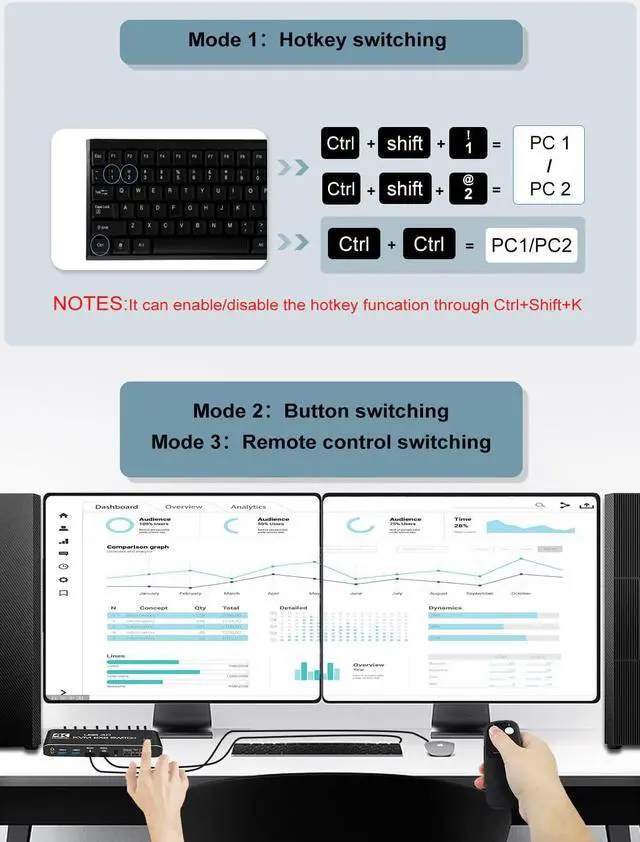

- Three Switching Method:
1.Press the "Select" button on the KVM switch panel to switch between the two source devices;
2.use hotkey switch(Ctrl+Shift+ 1 / 2 to PC1 / PC2 or Ctrl + Ctrl),Ctrl+Shift+ K to turn off hotkey;
3.use IR remote contrl to switch PC 1/ PC 2.
Specifications:
- Product Type: HDMI USB 3.0 KVM Switch (2 in 2 out)
- Input Port: HDMI 2.0 x 4,USB-C x2, USB 3.0 x 4
- Output Port: 2 x HDMI 2.0,1 x L/R audio
- Dimensions: 111.8x63.2x24.5mm
- Material: Aluminum Alloy shellanti-rust, anti-corrosion, anti-interference, fast transmission, surtace oxidation
Package contents:
1 x HDMI KVM USB Switch
2 x USB data cable
1 x USB power cable
1 x IR Remote Control(Without AAA battery)
1 x User Manual
1) To support dual display, your pc's video card must be capable of supporting 2 HDMI out simutaneously.
2) to use the extended and spliced display function, your video card must be capable of doing so.As the dual monitor HDMI KVM Switch display only what was connected to the input.It is a bypass swicth and it can not processing those function by itself.
3) This is a HDMI KVM dual monitor switch, it is not a HDMI KVM Matrix.
