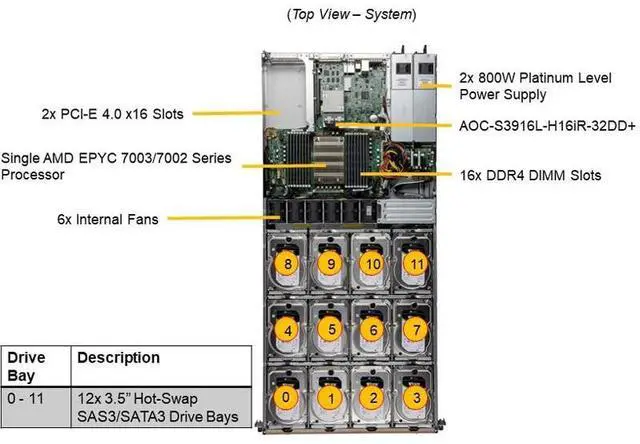

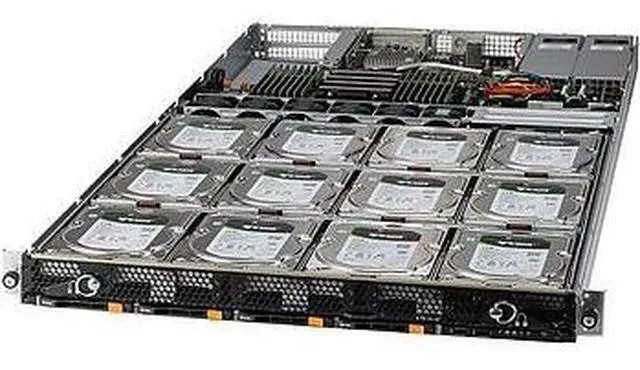

ASG-1014S-ACR12N4H Storage 1U Barebone Single EPYC 7003/7002 Series Processors
- ASG-1014S-ACR12N4H Storage 1U Barebone Single EPYC 7003/7002 Series Processors
+
+
Overview
Specs
Reviews
1. Single AMD EPYC 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
2. 16 DIMMs; Up to 4TB 3DS ECC Registered DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCIe 4.0 x16 (FHHL) Slots, 1 PCIe 4.0 x16 (LP) Slot
4. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller

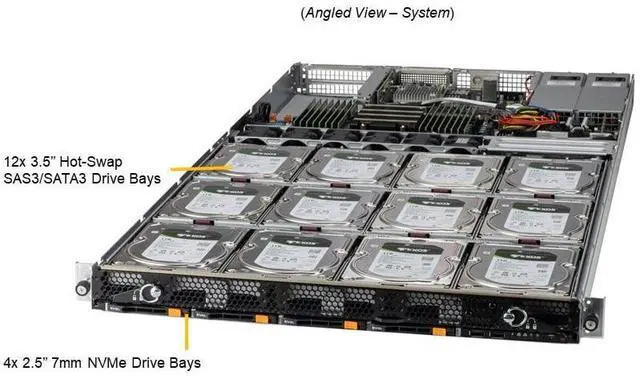

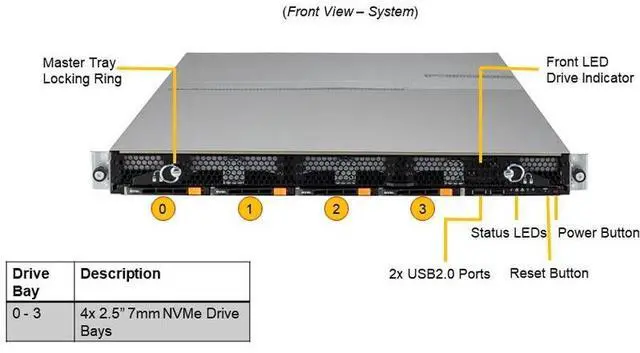

5. 12x 3.5" SAS3/SATA3 Hot-Swap Drive Bays, 4x 2.5" 7mm U.2 NVMe Hot-Swap Drive Bays
6. 800W Redundant Power SuppliesPlatinum Level High-efficiency(Full redundancy based onconfiguration and application load.)
7. RAID support via Broadcom® 3916

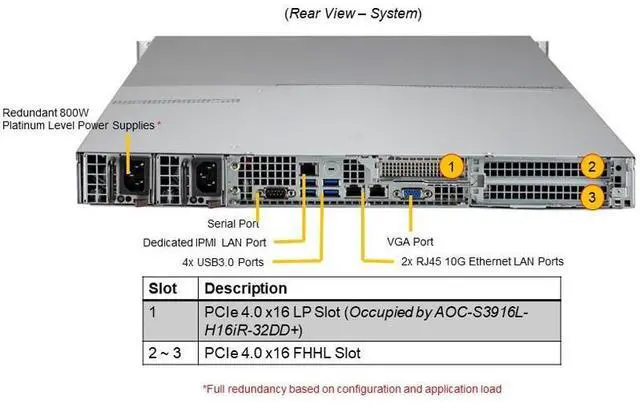

8. 1 VGA, 1 COM, 4 USB3.0 (4 Rear, 1 Type A), 2 USB2.0 (2 Front)
| Motherboard | |||
| Motherboard | Super H12SSW-NTR | ||
| Processor | |||
| CPU | Single Socket SP3 | ||
| Support CPU TDP 120-240W | |||
| AMD EPYC 7003/7002 Series Processors | |||
| System Memory | |||
| Memory | Memory Capacity: 16 DIMM slots | ||
| Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM | |||
| Up to 4TB: 16x 256 GB DRAM | |||
| Memory Voltage | 1.2 V | ||
| Error Detection | ECC | ||
| On-Board Devices | |||
| Chipset | System on Chip | ||
| Network Connectivity | 2x 10GbE BaseT with Broadcom | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | ||
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |||
| Input / Output | |||
| LAN | 1 RJ45 Dedicated IPMI LAN port | ||
| 2 RJ45 10GBase-T LAN Ports | |||
| USB | 2 USB 2.0 port(s) (2 Front_USB) | ||
| 4 USB 3.0 port(s) (4 Rear_USB) | |||
| Video | 1 VGA port(s) | ||
| Serial Port | 1 Serial | ||
| System BIOS | |||
| BIOS Type | AMI 256MB SPI Flash EEPROM | ||
| Management | |||
| Software | Watch Dog | ||
| KVM with dedicated LAN | |||
| SuperDoctor® 5 | |||
| IPMI 2.0 | |||
| SUM | |||
| Power Configurations | ACPI / APM Power Management | ||
| PC Health Monitoring | |||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | ||
| 4+1 Phase-switching voltage regulator | |||
| FAN | Status monitor for speed control | ||
| Pulse Width Modulated (PWM) fan connectors | |||
