1MHz to 6GHz SDR Radio Development Board for Hackrf One Open Source Software Radio Platform SDR Radio Motherboard

Features: Half-duplex transceiver.
Operating freq: 1 MHz to 6 GHz
Supported sample rates: 2 Msps to 20 Msps (quadrature), Resolution: 8 bits.
Interface: High Speed USB (with USB Micro-B connector)
Power supply: USB bus power, Software-controlled antenna port power (max 50 mA at 3.3 V), SMA female antenna connector (50 ohms)
SMA female clock input and output for synchronization, Convenient buttons for programming, Pin headers for expansion, Portable, Open source
Description:
for HackRF One is the current hardware platform for the HackRF project. It is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.

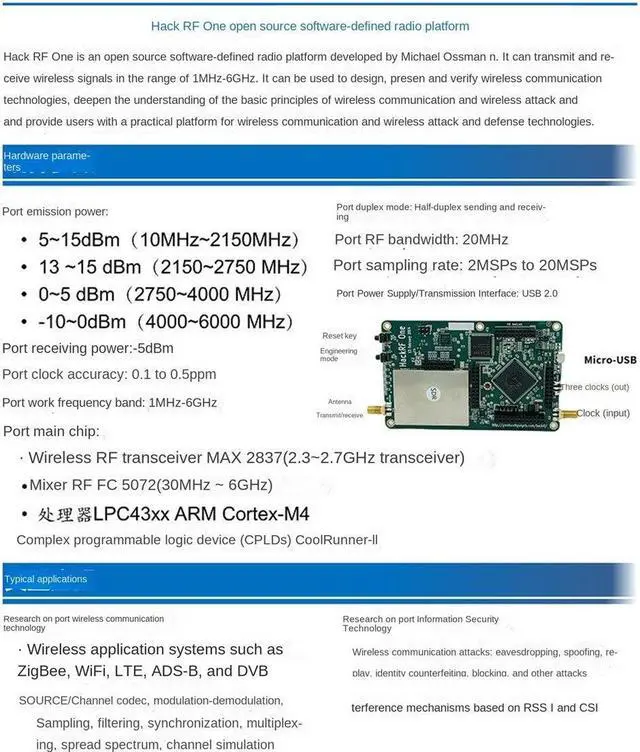

Transmission power:
5 - 15 dBm(10MHZ-2150MHZ)
13 - 15 dBm(2150MHZ-2750 MHZ)
0 - 5 dBm(2750MHZ-4000 MHZ)
-10 - 0dBm(4000MHZ-6000 MHZ)
Receiving power: - 5 dBm
Clock accuracy: 0.1 - 0.5 ppm
Operating frequency band: 1MHZ-6GHZ
Duplex mode: half duplex transceiver
RF bandwidth: 20MHz
Sampling rate: 2Msps~20Msps
Power supply/transmission interface: USB 2.0
Main chip:
Radio frequency transceiver MAX2837 ( 2.3 ~ 2.7GH z transceiver)
Mixer RFFC5072 (30MHz-6GHz)
Processor LPC43 XX ARM Cortex-M4
Complex Programmable Logic Device CPLD CoolRunner II
Material: PCB + metal
colour: Green
Package Contents:

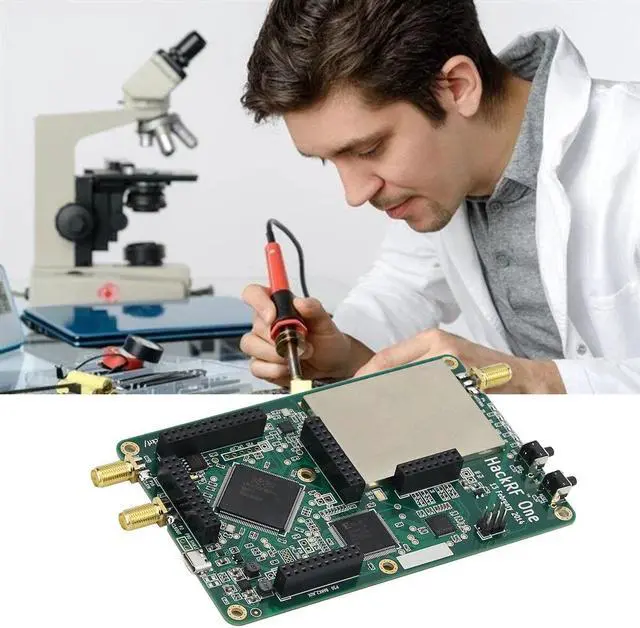

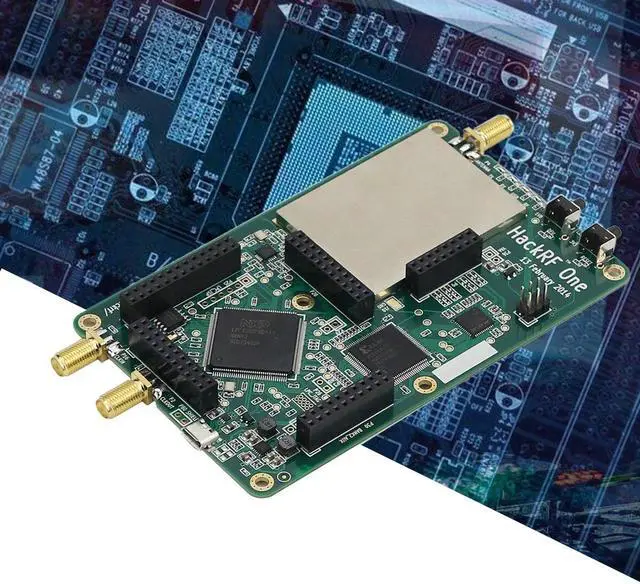

1 x For Hackrf One motherboard
Only the above package content, other products are not included.
