Original Mean Well Uninterruptable Power Supply DC Input 24-29V 40A DC UPS Module Uninterrupted Switching Power Supply Battery Controller for DIN Rail UPS System
- Model DR-UPS40 DC UPS Module Battery controller for DIN Rail UPS system
- DC input/DC bus: 24-29V, 40A max.
- Battery input voltage: 21-29V
- Battery input current: 0-40A
- Charge current(typ.): 2A
- External battery (typ.): 24V, 4AH/7AH/12AH
+
+
Overview
Reviews
Features
Battery controller for DIN Rail UPS system
Parallel connection to DC BUS
Suitable for 24V system up to 40A
Installed on DIN Rail TS35/ 7.5or 15
Built-in battery test function
Battery polarity protection
Relay contact signal output and LED indicator for DC BUS OK,Battery Fail, and Battery Discharge
Cooling by free air convection
3 years warranty Description

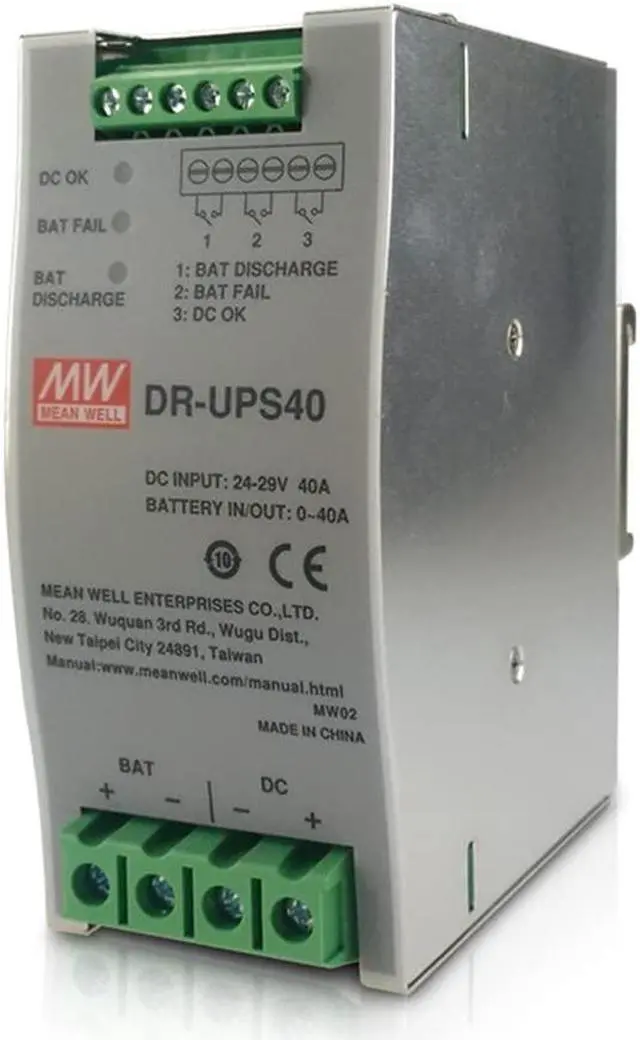

The DR-UPS-40 is a DC current UPS (Battery Control) module with a maximum current of 40A. It is used in a 24Vdc power supply system with an external battery.
It can provide a backup time for the maximum load system of 40A according to the capacity of the battery.
Perfect monitoring signal and LED indicator, users can monitor DC bus OK, battery damage and battery power status at any time; uninterrupted battery test function can monitor the status of external battery at any time, users can conveniently customize their own DC UPS system backups critical loads and captures the operating status of the entire system
Battery controller for DIN Rail UPS system
Parallel connection to DC BUS
Suitable for 24V system up to 40A
Installed on DIN Rail TS35/ 7.5or 15
Built-in battery test function
Battery polarity protection
Relay contact signal output and LED indicator for DC BUS OK,Battery Fail, and Battery Discharge
Cooling by free air convection
3 years warranty Description
The DR-UPS-40 is a DC current UPS (Battery Control) module with a maximum current of 40A. It is used in a 24Vdc power supply system with an external battery.
It can provide a backup time for the maximum load system of 40A according to the capacity of the battery.
Perfect monitoring signal and LED indicator, users can monitor DC bus OK, battery damage and battery power status at any time; uninterrupted battery test function can monitor the status of external battery at any time, users can conveniently customize their own DC UPS system backups critical loads and captures the operating status of the entire system
