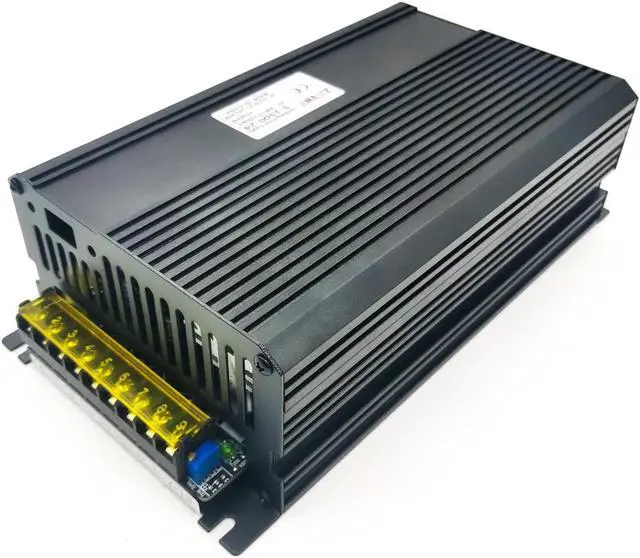

1500W Switching Power Supply AC-DC SMPS Output 90v 16A dc Power Supply Input 110VAC (90VDC)

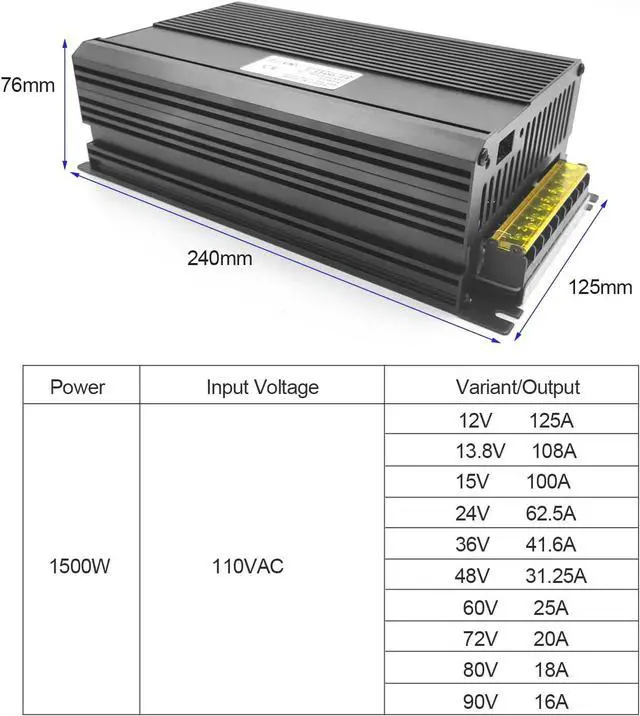

Model SpecificationS-1500-12 S-1500-13.8 S-1500-15S-1500-24S-1500-27 S-1500-36DC Output voltage(V) 12 13.5 1524 27 36Rated output current(A) 125108 100 62.5 5541.6Output current range(A)0~1250~1080~1000~62.50~550~41.6Wave and noise(mVp-p)200200 200 200200 200Inlet stability(%)±0.5±0.5 ±0.5±0.5±0.5±0.5Load stability(%)±0.5±0.5 ±0.5±0.5±0.5 ±0.5DC output power(W)15001500150015001500 1500Efficiency(%)84 84 8585.586.587AC input voltage range200~240VAC 47~63Hz ( 220Vac or 110vac, when you make order please choose it.) Input current7A/230V AC Inrush current50A/230V Leakage current<3.5mA/240VAC Overload protection105%-150% Type:pulsing hiccup shutdown Reset:auto recovery Over-voltage protection13.8~16.2v15.5~18.2v 18~21v27.6~32.4v 31~34V 41.6-51VTemperature coefficient±0.03%/(0~50) Setup, rise, hold up time1.5s, 50ms, 20ms Vibration10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes Withstand voltageI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC Isolation resistanceI/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC Working temperature/ humidity-10~+60,10%~95%RH Store temperature and humidity-20~+85,10%~95%RH product size240*125*76mm New weight:1.95kgsPage 11 Next pageZJIVNV 1500W Switching Power Supply AC-DC SMPS Output 90v 16A dc Power Supply Input 110VAC (90VDC)
