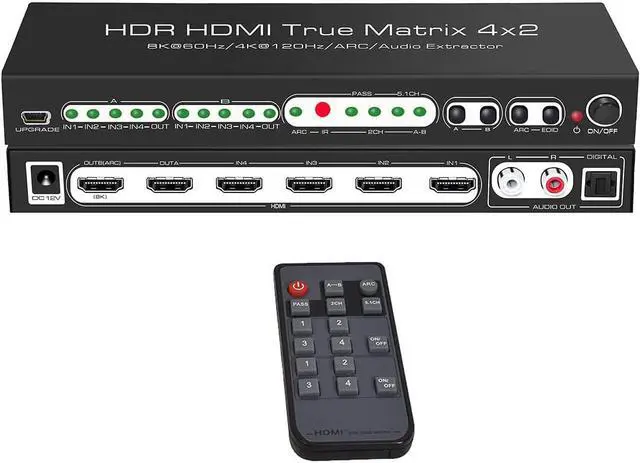

HDMI 2.1 HDMI Matrix 4x2 8K @30HZ 60HZ 4K@ 60HZ 120HZ HDR ARC/CEC Switch Splitter 4 In to 2 Out SPDIF Optical + Stereo RCA L/R Audio Extractor with Remote Control

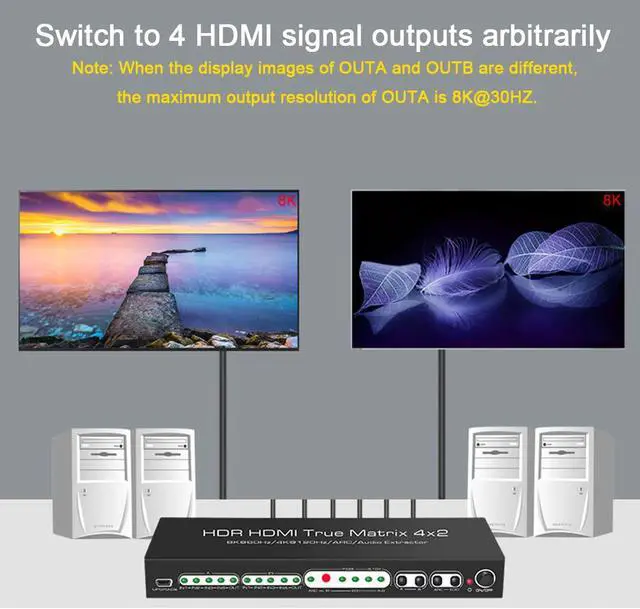

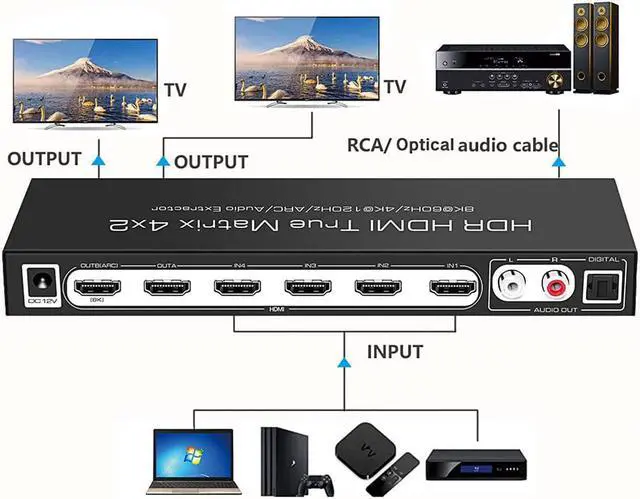

  • 1. This 4x2 hdmi matrix can switch between 4 input signal sources and distribute the signal to 2 monitors (2 monitors can display the same image or different images), the output port OUTA or OUTB can achieve independent audio output via Optical SPDIF or RCA stereo.

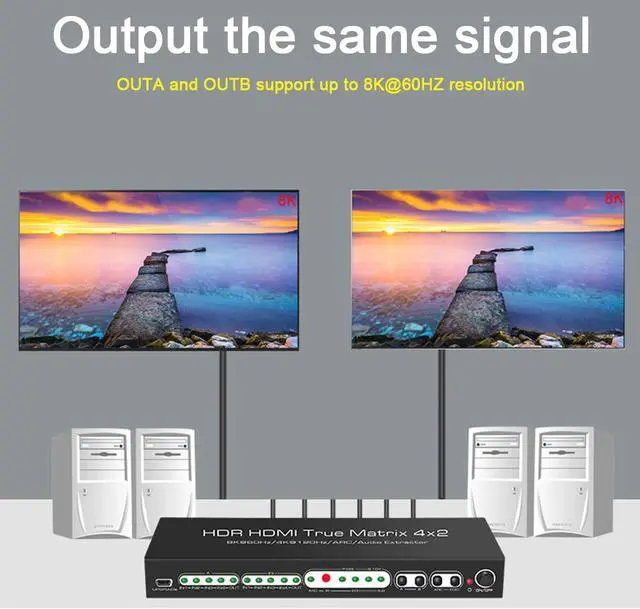

  • 2. Please connect 8K TV to OUTB preferably. OUTA outputs 8K@60HZ or 4K@120HZ resolution only in Split mode (In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30HZ or 4K@60HZ in other modes.

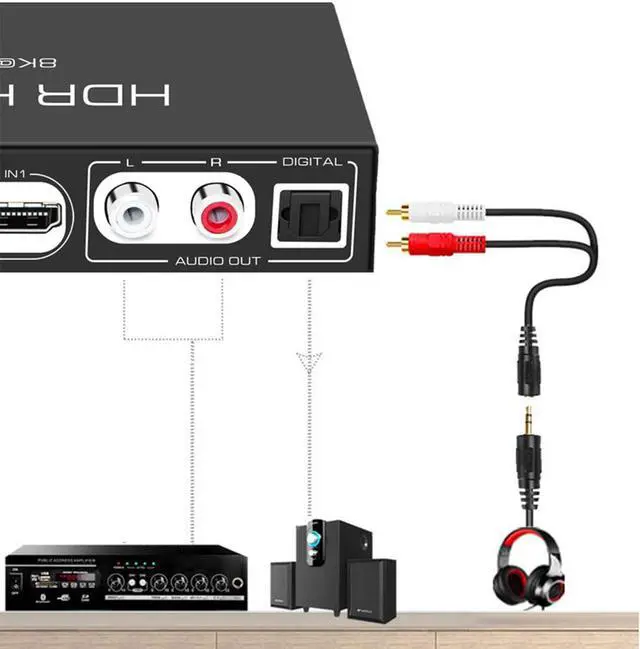

  • 3. HDMI Matrix 4x2 can extract audio signals from HDMI input source and output via optical SPDIF (supports 5.1CH Dolby HD, DTS HD, Dolby Atoms, Dolby AC3, DTS or 2CH LPCM) and analog RCA (only supports 2CH LPCM).
  • 4. If you need to use ARC or CEC function, you need to connect TV to OUTB port. When using the ARC function, the TV must support HDMI input and the ARC function must be switched on
  • 5. Wide Compatibility: This audio splitter works with all kinds of HDMI source devices.
+
+
Overview
Specs
Reviews
Warm Tips:

1. Description of the ARC (Audio
Return) function: When using the ARC function, the TV must support HDMI input and the ARC function has been activated. SPDIF and RCA output TV's ARC audio.
2. Please connect 8K TV to OUTB preferably. OUTA outputs 8K@60HZ or 4K@120HZ resolution only in Split mode (In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30HZ or 4K@60HZ in other modes.

Product parameters:
HDMI version: HDMI 2.1 (backwards compatible)
HDCP version: HDCP 2.3 (backwards compatible)
Resolution: Up to 8K@60Hz (YCC420) (backwards compatible)
Audio formats supported: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc.
Video formats: HDR, UHD, HLG, Dolby Vision
Input interface: HDMI x 4
Output Interface: HDMI x 2, SPDIF, RCA
ARC: support (connection to OUTB interface)

Package included:
1X HDMI Matrix
1 x power adapter
1 X remote control (without battery)
1 X English Manual
