8K @60Hz HDR UHD HDMI Matrix Switcher 4x2, Dolby Version 48Gbps CEC ARC 8K 7680x4320P HDMI Splitter Switch 4 in 2 Out, 4K @120Hz VRR HDMI Matrix Support PS5 Xbox
- [Advanced high-tech high-quality products] This 4X2 HDMI matrix can switch between 4 input signal source devices and distribute the signal to 2 monitors (2 monitors can display the same picture or different pictures)With audio extractor. Extract audio from HDMI outputs and output to optical audio and L/R audio
- [8K60Hz/4K120Hz High Resolution] Supports 480P/720P/1080P/2160P @24/25/30/50/60/ 100/120Hz;Up to 4320P@50/60Hz.Support HDR10/Dolby Vision Support HDMI 2.1 and HDCP2.3,Support 40Gbps data rate and tmds clock up to 1Ghz.

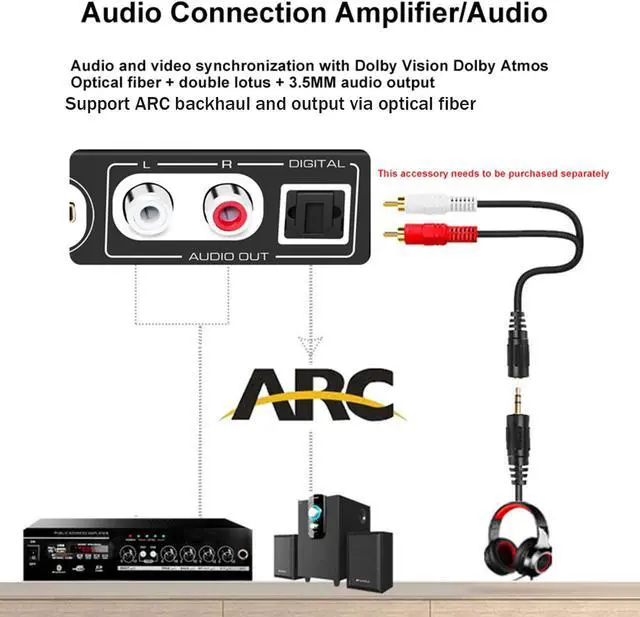

- [Supports audio independent EDID] HDMI Matrix 4x2 can extract audio signal from HDMI input source and output via optical SPDIF (supports 5.1CH Dolby HD, DTS HD, Dolby Atoms, Dolby AC3, DTS or 2CH LPCM) and analog RCA (supports 2CH LPCM only).
- [Support ARC or CEC function] If you need to use the ARC or CEC function, you must connect the TV to the OUTB port.
- [Wide Compatibility] This audio splitter works with all kinds of HDMI source devices.
+
+
Overview
Specs
Reviews (1)
Product parameters:
Model name: 8K HDR HDMI True Matrix 4x2
Input ports: HDMIX4
Output ports: HDMIX2; RCAX2, Optical X1
Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz, Support HDR/Dolby Vision
Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1200MHz Max.
Transmission rate: 40 Gbps Max.
Power adapter specification: Input: AC 100~240V Output: DC 12V/ 1.5A
Size: 250x75x30 (mm)
Weight: 440g
Notice:
1) All HDMI 2.1 video devices has very high requirements on HDMI cables. Pls uses HDMI ATC Certified ultra high speed HDMI 2.1 cable.

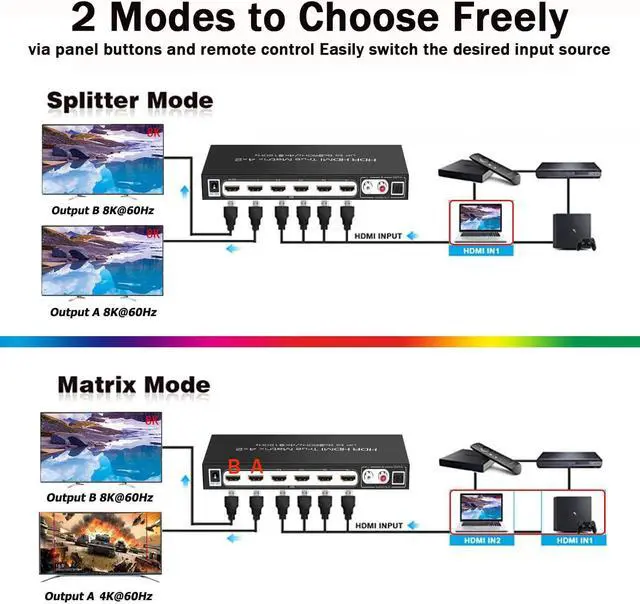

2) In matrix mode(In this mode, the outputs of A and B are different), output ports A and B cannot output 8K signals at the same time. Only one group B is allowed to output 8K@60HZ or 4K@120HZ and the other group output 4K60HZ or less.
3) The product has power off memory function. After the power is off, the saved data will be automatically retrieved for configuration.
4) The AUDIO OUTis a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the "A-B" key.
5) The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B.
6) Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output.
7) If you want to use ARC or CEC, you must connect the TV to the OUT B port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.

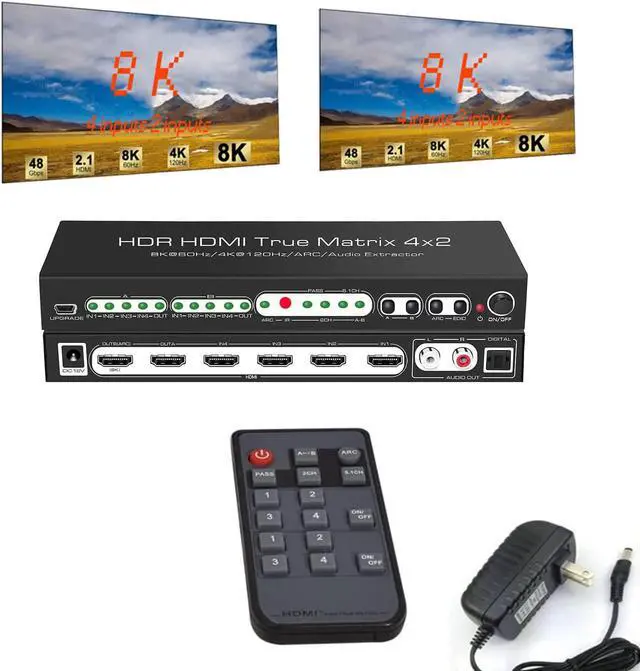

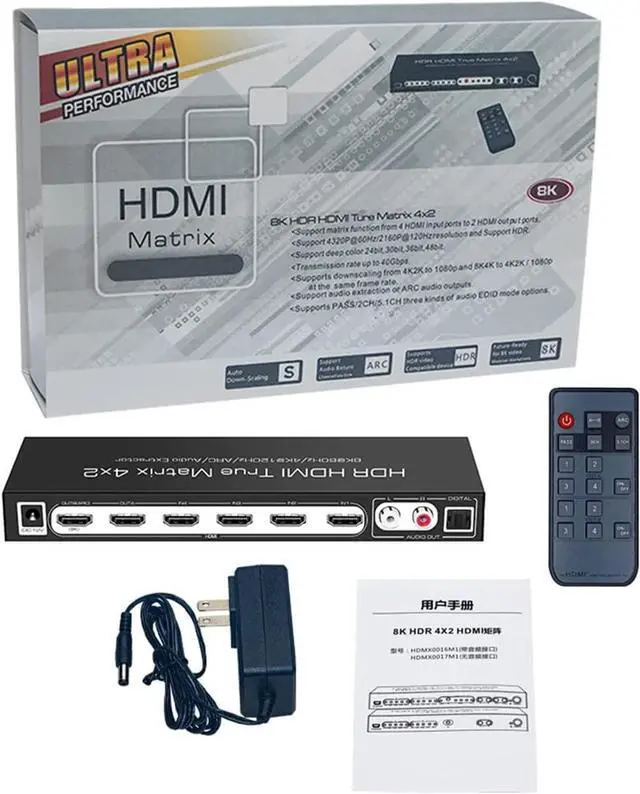

Package included:
1 X HDMI Matrix
1 X Power Adapter
1 X Remote Control (without battery)
1 X English manual
Model name: 8K HDR HDMI True Matrix 4x2
Input ports: HDMIX4
Output ports: HDMIX2; RCAX2, Optical X1
Video format: 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz
Up to 4320P@50/60Hz, Support HDR/Dolby Vision
Deep color: 8/10/12/16Bit@2160P 8/10bit@4320P
Audio format: Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc.
Transmission bandwidth: 1200MHz Max.
Transmission rate: 40 Gbps Max.
Power adapter specification: Input: AC 100~240V Output: DC 12V/ 1.5A
Size: 250x75x30 (mm)
Weight: 440g
Notice:
1) All HDMI 2.1 video devices has very high requirements on HDMI cables. Pls uses HDMI ATC Certified ultra high speed HDMI 2.1 cable.
2) In matrix mode(In this mode, the outputs of A and B are different), output ports A and B cannot output 8K signals at the same time. Only one group B is allowed to output 8K@60HZ or 4K@120HZ and the other group output 4K60HZ or less.
3) The product has power off memory function. After the power is off, the saved data will be automatically retrieved for configuration.
4) The AUDIO OUTis a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the "A-B" key.
5) The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B.
6) Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output.
7) If you want to use ARC or CEC, you must connect the TV to the OUT B port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
Package included:
1 X HDMI Matrix
1 X Power Adapter
1 X Remote Control (without battery)
1 X English manual
