4x2 HDMI Matrix, UHD 8K @60Hz HDMI Matrix Switcher 4 in 2 Out 4K @120Hz HDR HDMI Splitter HDMI Scaler 8K 60Hz Sync, HDCP2.3 HDMI2.1 40 Gbps HDMI 2.1 Matrix 4x2 IR and Power Adapter

Be the first to review this product...

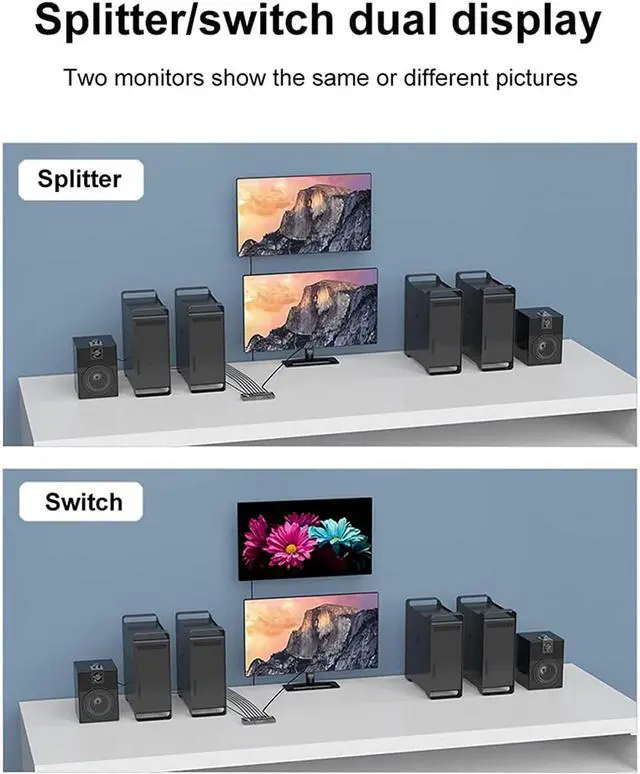

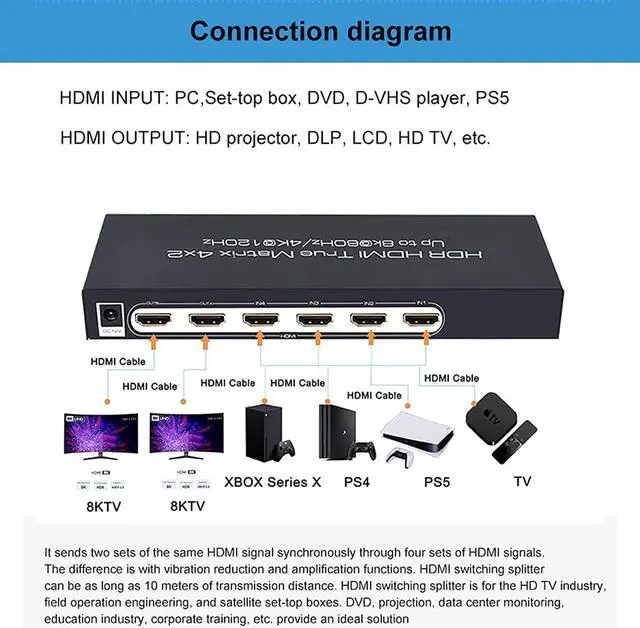

  • [8K 4 IN 2 OUT Matrix] Can connect up to 4 HD Source to 2 HDMI Display terminals with optical fiber or stereo headphone output,it allows 4 HDMI devices to be switched or split easily to 2 HDMI compatible monitors or projectors.Ideal solution for home theater, office, school, conference room etc.
  • [8K60HZ/4K120HZ High Resolution] Supports a multitude of video resolutions, including 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz;Up to 4320P@50/60Hz, Support HDR/Dolby Vision.Support 8/10/12/16Bit@2160P ;8/10bit@4320P Deep color.
  • [HDR10 and Dolby Vision HDR] support ensure that every moment of the video is displayed on a scene-by-scene or even frame-by-frame basis with its ideal depth, detail, brightness, contrast, and wider color gamut.
  • [Audio Split&EDID With power-off memory function] Supports Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc. the setting status of the selected channel and function will be saved, and the saved data will be automatically recalled for configuration
+
+
Overview
Specs
Reviews
Features:
Compatible with HDMI 2.1, HDCP 2.3 and 40 Gbps
Up to 8K60 YCBCR 4: 2: 0 10-bit, 8K30 RGB /
YCBCR 4: 4: 4 10-bit or 4K120 RGB /
YCBCR 4: 4: 4 10-bit
Pass HDR, HDR10, HDR10 +, Dolby Vision and ALLM / VRR (variable refresh rate)
Fast frame transmission (QFT)
· Up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
· HDMI 4-8K input and HDMI 2-8K output
· Integrated equalizer, retiming and driver
· Automatic EDID management
Compact aluminum housing design

Note: This device does not support Atmos audio

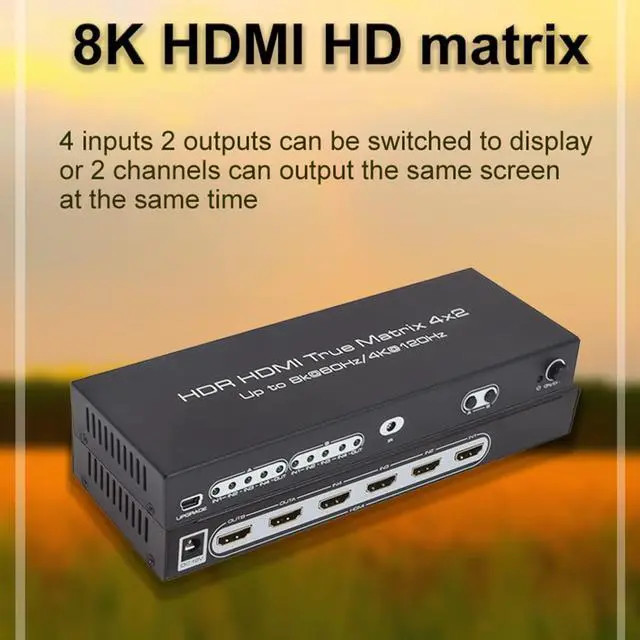

This 4x2 8K HDMI matrix can switch between 4-8K video devices to 2-8K TVs or any combination of other 2 8K devices. It will not reduce the output to 4K or 1080p



Specifications

:
Model name: 8K HDR HDM?? I True Matrix 4x2
Input port: HDMIX4
Output port: HDMIX2
Video format:
480P / 720P / 1080P / 2160P @ 24/25/30/50/60/100 / 120Hz, up to 4320P @ 50 / 60Hz, supports HDR /
Dolby Vision Color depth: 8/10/12 / 16Bit @ 2160P / 8 / 10 bit @ 4320P
Audio Format: Suitable for Dolby HD / DTS HD / Dolby Atoms / Dolby AC3 / DTS / LPCM, etc.
Transmission bandwidth: 1200 MHz max.
Transmission speed: 48 Gbps
Maximum.
Infrared distance: 5m
Input cable length: 2160P / AWG 26 5m; 1080P / AWG 26 =10m
Output cable length: 2160P / AWG 26 5m; 1080P / AWG 26 =12m
Power adapter input: AC 100 ~ 240V
Output: DC 12V / 1.5A

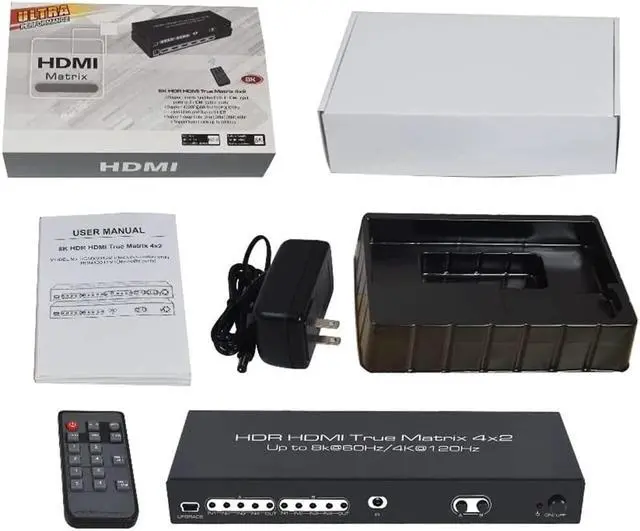

Package Contents
HDMI Matrix X1
Remote control x1 (without batteries)
User Manual x1
Power adapter x1
