4K@60Hz 2x1 HDMI Switch audio extractor converter with the most advanced features - eARC. It can extract audio signals from any HDMI compliant source which without dedicated audio output.
HDMI splitter supports HDMI 7.1CH Atmos, all 5.1CH, PCM 2.0 audio out which can connect to your Sound Bar/Amplifier/AV receiver and more, enjoy stereo output and uncompressed and compressed audio.
Remote switch via the IR receiver box and easily select the HDMI inputs. Also can select the audio format at will by remote.
- Support 4K x 2K@60Hz, Support 3D.

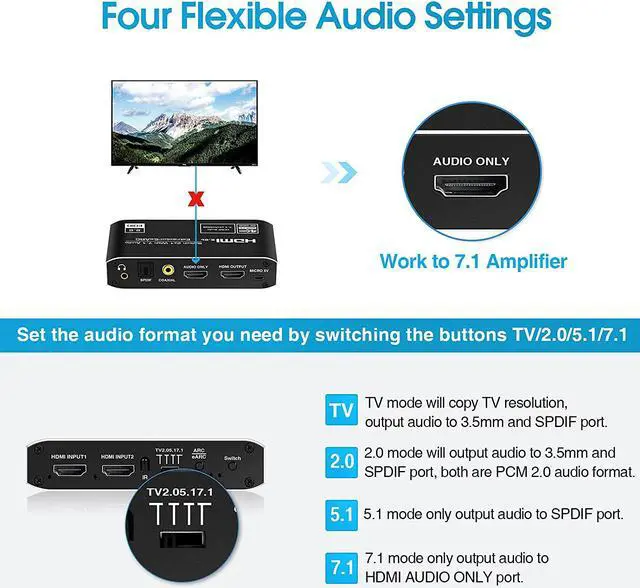

- 4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
- HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dollby Digital, Dolby Digital plus, Dollby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

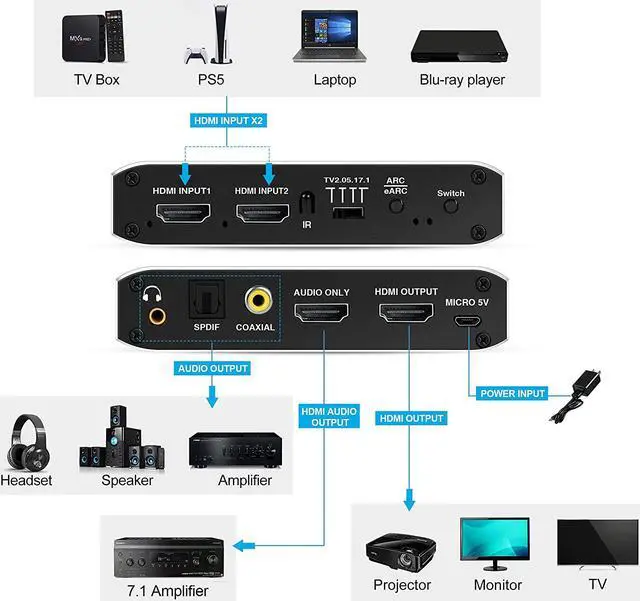

- HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Specifications

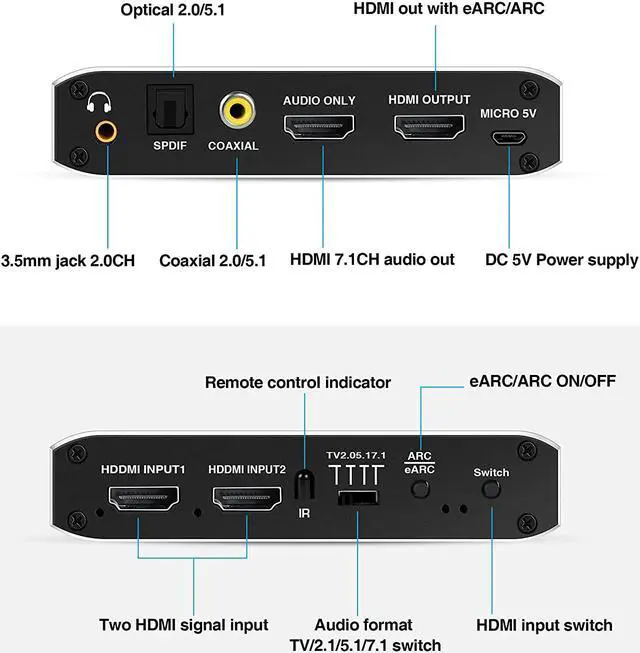

Power Supply: DC 5V/1000mA.
HDMI Output ARC/eARC: TV eARC/ARC audio output port(connect to TV with ARC function).
HDMI Audio Only Port: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dollby Digital 2.0/5.1, DTS 2.0/5.1.
Coaxial Output: LPCM 2.0/5.1,Dollby Digital 2.0/5.1, DTS 2.0/5.1.
3.5mm Audio Jack: Analog stereo 2.0ch.
Turn on/off the eARC function:Switch to "ON" position, the AUDIO ONLY port will output the eARC/ ARC audio;Switch to "OFF" position, the AUDIO ONLY port will output the audio from HDMI IN port.
Package contents
1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual
NOTE
1. When you use ARC/eARC Function, please make sure that the spdif port light is red on, that's means the converter get signal. And the TV need support ARC/eARC Function.
2. When you open the ARC/eARC, then the TV remote will can't control the volume, you can only adjust the volume on your speaker/sounder/home theater.
