HDMI 2.0 Matrix 6x2 Switch Splitter, 6 in 2 Out HDMI Video Switcher Splitter with Audio Extractor/IR Remote Controller, HDR 4K @60Hz RGB/YUV 4:4:4 SPDIF Optical + 3.5 mm Jack Audio Output

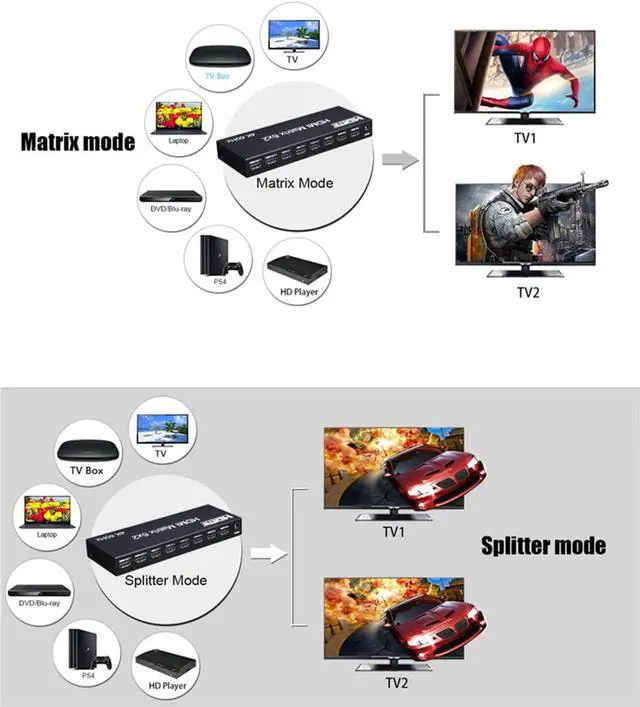

- This 6X2 HDMI matrix can switch between 6 input source devices and the signals on 2 displays (2 displays can display the same image or different images) and distribute them to any output. The ports can be output independently with audio via the SPDIF optical or 3.5mm audio jack.
- The product can enlarge the HDMI signal at the HDMI output to increase the transmission distance of the output signal, choose different resolution, transfer longer distance, 1080P can reach the transmission distance of 15 meters, 4K @30Hz transmission 10 metres, 4K @60Hz transmission 5 metres.
- Supports HDMI 2.0 and HDCP 2.2 With a resolution of up to 4K @ 60Hz (RGB/YUV 4:4:4), you can enjoy a fantastic visual feast.

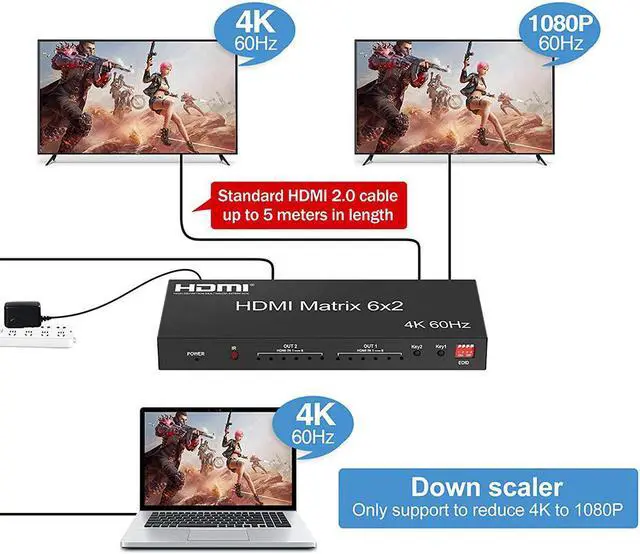

- Supports 4K (input) to 2K (output) (down scaler).
- This 6X2 HDMI matrix is ideal for entertainment centres, retail and websites, HD TV set-top boxes, DVDs, projector systems, data center control, information distribution, conference rooms, schools and business training.
+
+
Overview
Specs
Reviews
Introduction:.

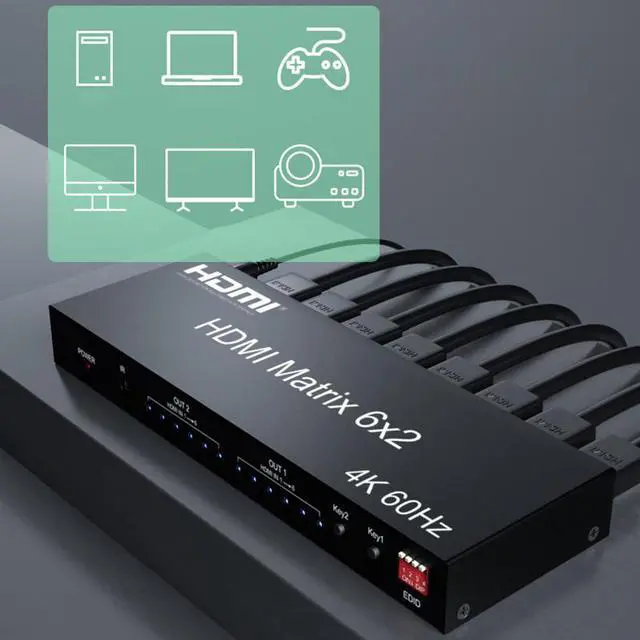

The HDMI 4K 60Hz matrix 6x2 can connect 6 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output.

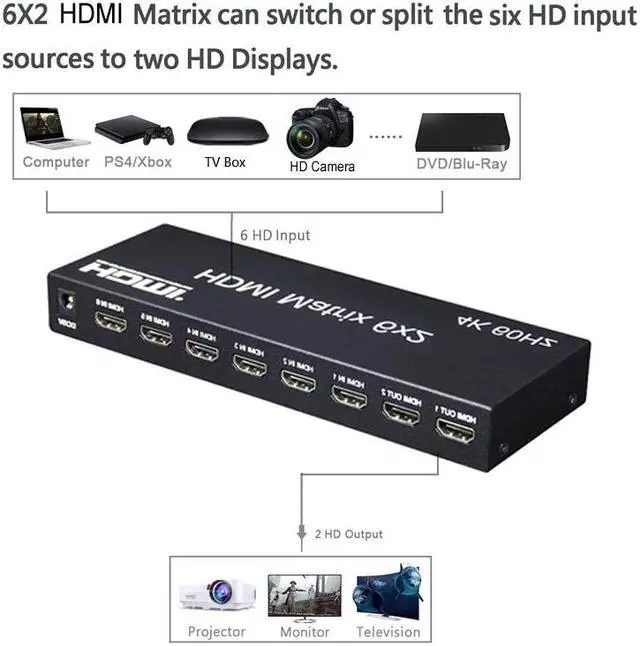

The matrix allows six HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Support 3D video format; Support 4K (input) to 2K (output) (Down scaler);
Support 2 HDMI audio extraction, 3.5 mm headphone jack and optical fiber jack output at the same time;
6 HDMI signal input switching or distribution to two HDMI displays; Support LPCM/Dolby/DTS 5.1 channel extraction;
Specification:
HDMI resolution: up to 3840x2160/60Hz
Support video format: 8/10/12 bit color depth
Support audio format: LPCM/DTS/Dolby-AC3
Maximum bandwidth transmission: 600MHz
Maximum transmission rate: 3x6Gbps
Input cable length: 4K/30HZ15m AWG26 HDMI standard cable; 4K/60HZ5m standard 2.0 cable
Output cable length: 4K/30HZ15m AWG26 HDMI standard cable; 4K/60HZ5m standard 2.0 cable
HDMI input ports: 6 HDMI
output port: 2
Maximum working current: 1A
Power adapter specifications:
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/ 1.5A
Operating temperature range: (-15 to +45)
Operating humidity range: 5 to 90%RH (non-condensing) Dimensions (length x width x height): 200x70x25 (mm)
Weight: 305g
Package included:
1 x HDMI matrix.
1 x remote control (without battery).
1 x English manual
The HDMI 4K 60Hz matrix 6x2 can connect 6 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output.
The matrix allows six HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Support 3D video format; Support 4K (input) to 2K (output) (Down scaler);
Support 2 HDMI audio extraction, 3.5 mm headphone jack and optical fiber jack output at the same time;
6 HDMI signal input switching or distribution to two HDMI displays; Support LPCM/Dolby/DTS 5.1 channel extraction;
Specification:
HDMI resolution: up to 3840x2160/60Hz
Support video format: 8/10/12 bit color depth
Support audio format: LPCM/DTS/Dolby-AC3
Maximum bandwidth transmission: 600MHz
Maximum transmission rate: 3x6Gbps
Input cable length: 4K/30HZ15m AWG26 HDMI standard cable; 4K/60HZ5m standard 2.0 cable
Output cable length: 4K/30HZ15m AWG26 HDMI standard cable; 4K/60HZ5m standard 2.0 cable
HDMI input ports: 6 HDMI
output port: 2
Maximum working current: 1A
Power adapter specifications:
Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/ 1.5A
Operating temperature range: (-15 to +45)
Operating humidity range: 5 to 90%RH (non-condensing) Dimensions (length x width x height): 200x70x25 (mm)
Weight: 305g
Package included:
1 x HDMI matrix.
1 x remote control (without battery).
1 x English manual
