| HDMI version | HDMI 2.1 |
|---|---|
| Input ports | HDMI female *4 |
| Output ports | HDMI female *2 RCA *2, Optical *1 |
| Video format | 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz Up to 4320P@50/60Hz(YCC420), Support HDR/Dolby Vision |
| Deep color | 8/10/12/16Bit@2160P 8/10bit@4320P |
| Audio format | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc. |
| Transmission bandwidth | 1GHz Max. |
| Transmission rate | 40Gbps Max |
| IR distance | line-of-sight 16ft |
| Suggest HDMI cable length | 4320P/AWG 26 < = 3m, 2160P/AWG 26 < = 5m, 1080P/AWG 26 < = 10m |
| Product Size | 9.8*3*1.2in |
| Product Weight | 1.06lbs |

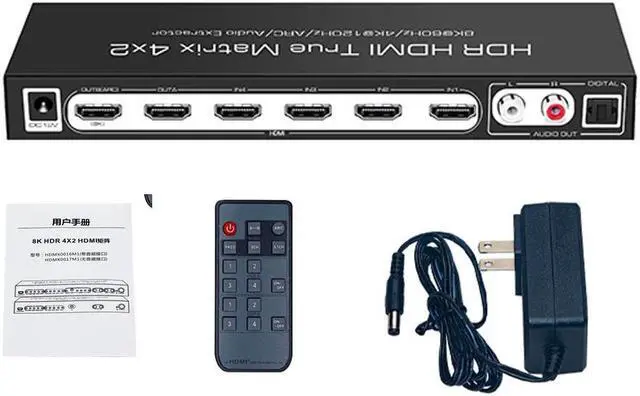

| Accessories | Manual, Remote, 12V certified Power Adaptor |
| Chipset | origin Japan |

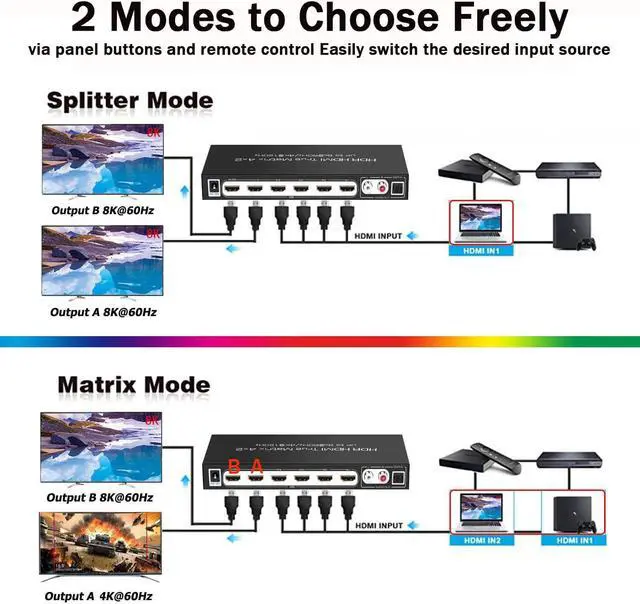

Supports splitter mode and switch mode. Split one input to two outputs simultaneously or switch one input to OUTPUT A and switch another to OUTPUT B.

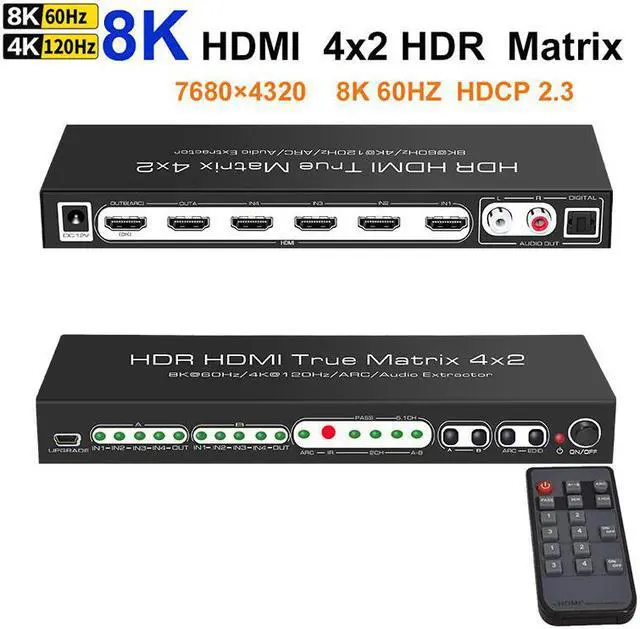

Chipset developed in Japan. Install and made in China. Supports 2k 50/60hz, 4k 50/60hz/120hz and 8K 60hz. Transmission rate up to 40Gbps.

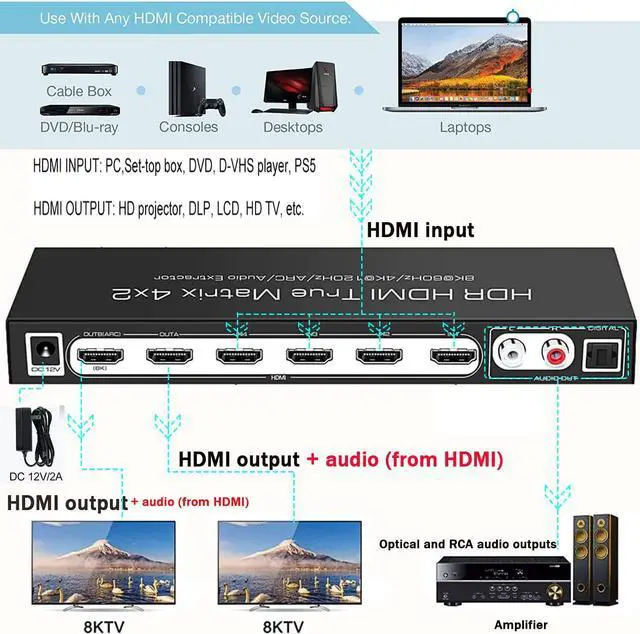

With audio extractor, splitting audio from HDMI input to SPDIF / Stereo audio output. And also supports ARC (audio return Channel), returning TV audio to SPDIF out.
Switch easily by IR remote control. Before use, please prepare CR2025 coin battery, which does not include in package.
1. Please use standard HDMI cable and connect the cable before powering the equipment.
2. Please preferentially connect 8K TV to OUTB. OUTA outputs 8K@60 or 4K@120 resolution only in split mode (In this mode, OUTA and OUTB select the same input source). The maximum output resolution is 8K@30 or 4K@60 in other modes.
3. The product has power off memory function. The setting state of the output channel is recorded and saved. After the power is off, the saved data will be automatically retrieved for configuration.
4. The AUDIO OUT is a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the "A-B" key.
5. The Audio EDID mode selection is also available for multiplexed. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B.
6. Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output.

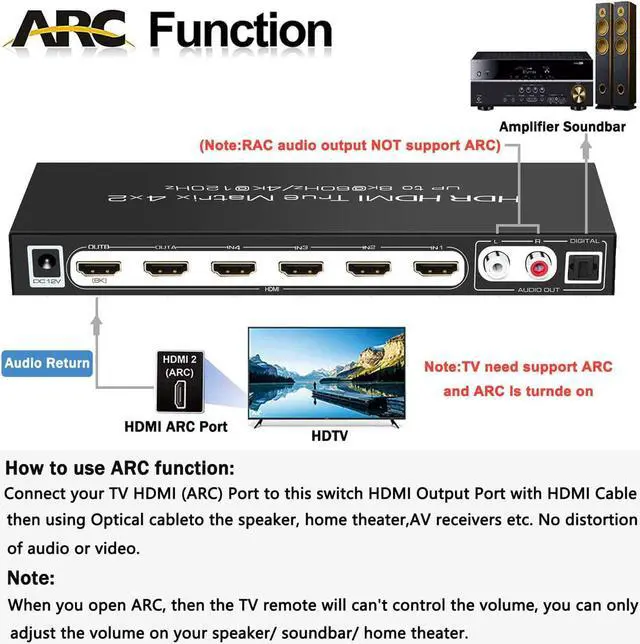

7. If you want to use ARC or CEC, you must connect the TV to the OUTB port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
8. At splitting mode, video format / audio format will smartly select the lower one to display.
