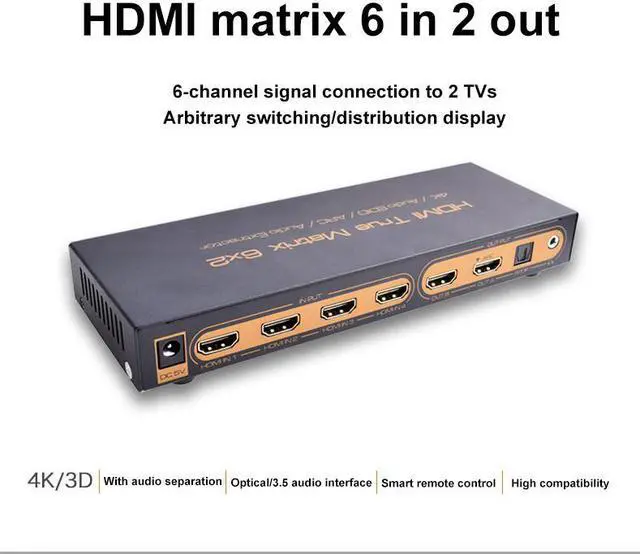

4Kx2K @30HZ 6x2 HDMI True Matrix SPDIF Splitter, HDMI Matrix Switch 6 in 2 Out with ARC/PIP Function| HDMI Audio Extractor,2.0CH/ 5.1CH/ ADV Audio Mode| SPDIF or 3.5mm Headphone Audio Output

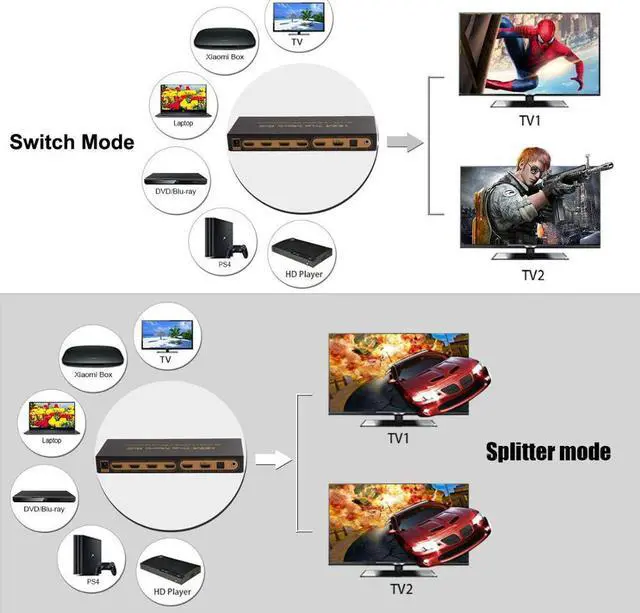

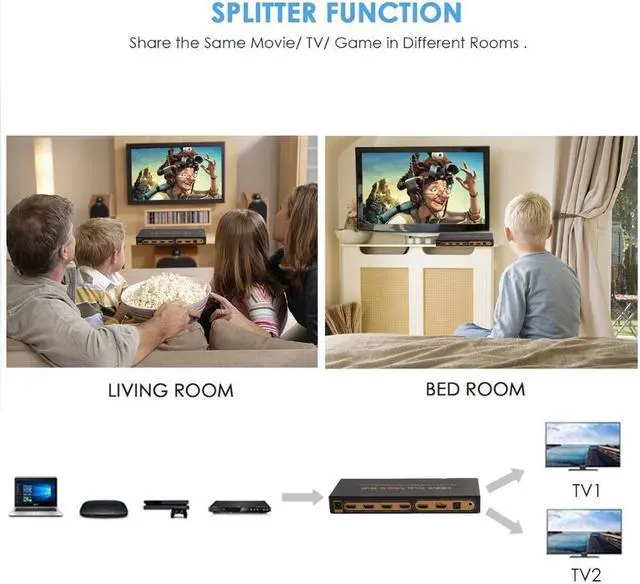

- [HDMI Matrix 6 in 2 out]This HDMI switcher designs with six inputs and two outputs, which allows splitting the videos to two HDMI displays simultaneously. You can choose the HDMI signal source by the IR remote control.
- [4K HDMI Switch] HDMI V1.4 helps you experience favorite media through advanced crisp 4K@30hz resolution and immersive 3D content (supports 1080p as well). It also manages to extract audio by the SPDIF or 3.5mm headphone audio output port. This switcher doesn't support 4K@60hz.
- [ARC Function] Supports ARC (Audio Return Channel), Extractor the audio from TV to Soundbar or Amplifier. Connect your TV HDMI(ARC) Port to this switch HDMI "OUT A" port, then connect an optical cable to the soundbar, Speaker etc. Only the "OUT A" port supports the ARC function.

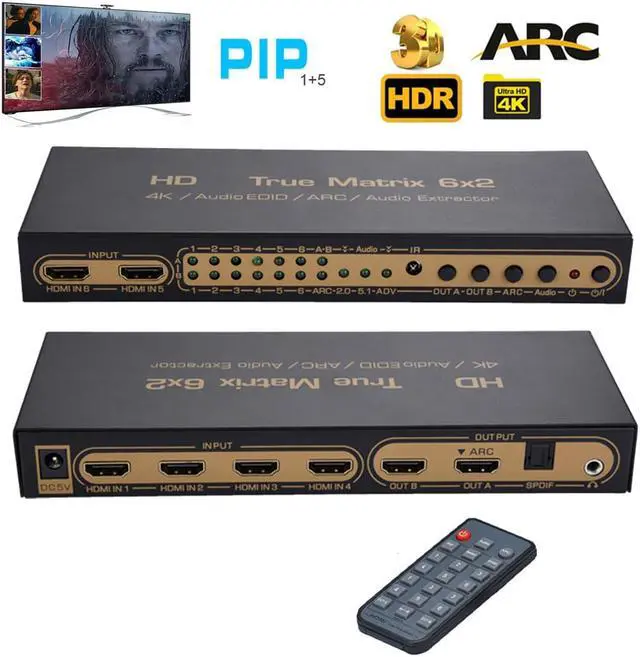

- [Picture in Picture] It will show 5 sub-screen and 1 main-screen displays with the PIP feature,which allows you to preview the devices simultaneously and switch between the signals by pressing the button or remote.
+
+
Overview
Specs
Reviews
Features:

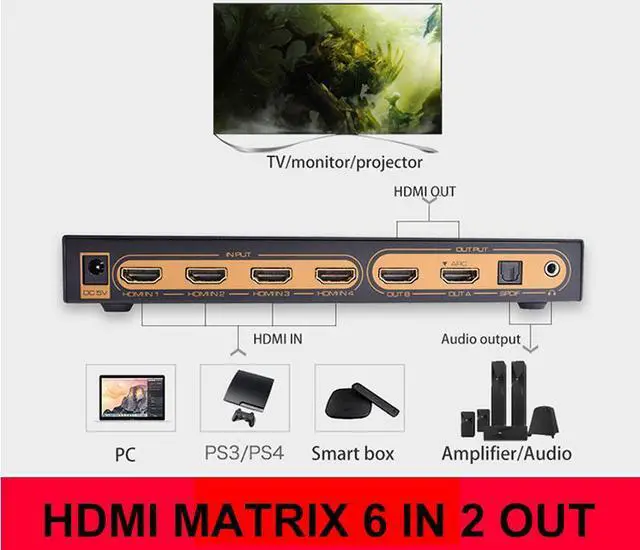

Six HDMI-Compatible Inputs switch or split to two HD Displays.
HDMI-compatible port supports Full HD, 3D and 4Kx2K video
Any input HDMI-compatible Source can do audio extract by the SPDIF or 3.5 mm Headphone audio output port.
HDMI-compatible to achieve the synchronization of audio signal separation.
Support 2.0 / 5.1 / ADV three kinds of audio mode options
Supports ARC, TV audio will return and out by the Optical Port; (only the OUT A port supports ARC function).
Supports HD audio separation, can output by optical and 3.5 mm Headphone at the same time
Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM 2.0
Support PIP function: have one main picture and five small pictures, it can do switch of input sources by press
button or remote.

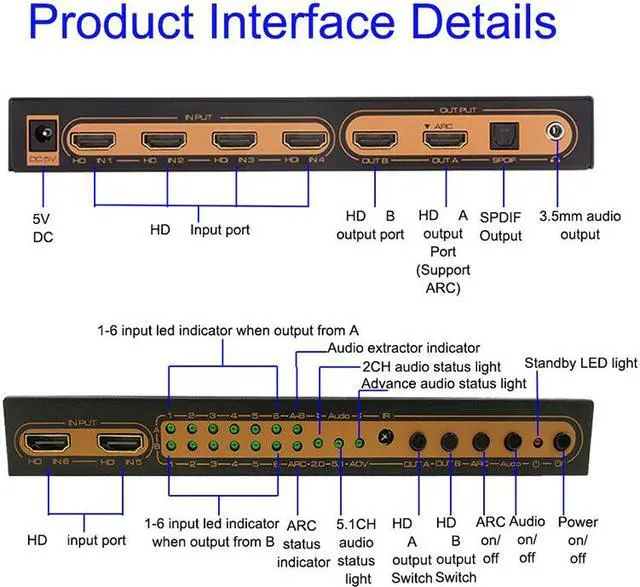

LED indication: when source or sink is working, LED related will go bright.

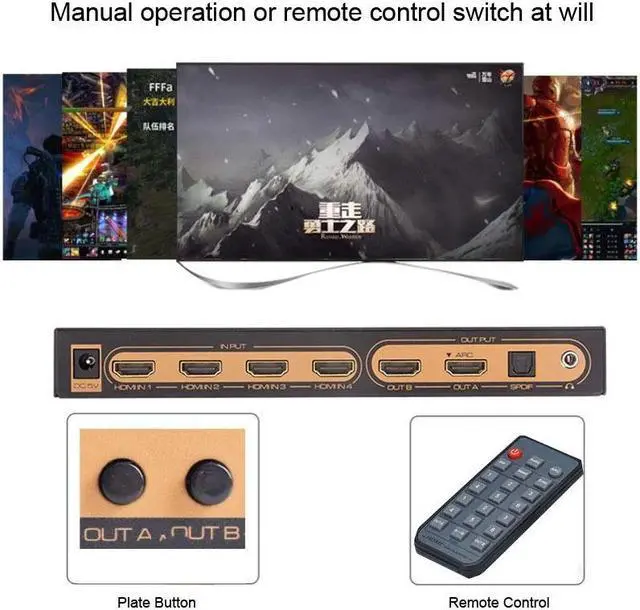

Support IR Remote Control and Push Button at device control.
Led Status Light allows the user to know the working status easily.
No loss of quality
SPECIFICATIONS:
HDMI resolution: 4KX2K/3D/1080p/1080i/720p/576p/576i/480p/480i.
Support HDMI audio format: DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD
Digital Audio Output Supported Audio Format: LPCM 2.0 /Dolby AC3/ DTS
Digital Audio Output Sampling Rate: 32KHz, 44.1KH z, 48KHz, 88.2KH z, 96KHz, 176.4KH z, 192KHz
Max transmission bandwidth: 300MHz
Max baud rate: 9.0G bps
Input/Output TMDS signal: 0.5 ~ 1.5V olts p-p
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: 10m (1080P) /5M (4K) AWG26 HDMI standard cable
Output cable distance: 15m (1080P) /5M (4K) AWG26 HDMI standard cable
Max working current: 700mA
Power adapter format:
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Dimension (L x W x H): 205x74x26 (mm)
Weight: 440g
Package Included:
1x Main unit 6x2 Matrix
1x Remote controller (no battery)
1x 5V/2A power adapter
1x User manual
Six HDMI-Compatible Inputs switch or split to two HD Displays.
HDMI-compatible port supports Full HD, 3D and 4Kx2K video
Any input HDMI-compatible Source can do audio extract by the SPDIF or 3.5 mm Headphone audio output port.
HDMI-compatible to achieve the synchronization of audio signal separation.
Support 2.0 / 5.1 / ADV three kinds of audio mode options
Supports ARC, TV audio will return and out by the Optical Port; (only the OUT A port supports ARC function).
Supports HD audio separation, can output by optical and 3.5 mm Headphone at the same time
Support SPDIF digital audio format: Dolby digital (AC3), DTS and LPCM 2.0
Support PIP function: have one main picture and five small pictures, it can do switch of input sources by press
button or remote.
LED indication: when source or sink is working, LED related will go bright.
Support IR Remote Control and Push Button at device control.
Led Status Light allows the user to know the working status easily.
No loss of quality
SPECIFICATIONS:
HDMI resolution: 4KX2K/3D/1080p/1080i/720p/576p/576i/480p/480i.
Support HDMI audio format: DTS-HD/Dolby-trueHD/LPCM/DTS/Dolby-AC3/DSD
Digital Audio Output Supported Audio Format: LPCM 2.0 /Dolby AC3/ DTS
Digital Audio Output Sampling Rate: 32KHz, 44.1KH z, 48KHz, 88.2KH z, 96KHz, 176.4KH z, 192KHz
Max transmission bandwidth: 300MHz
Max baud rate: 9.0G bps
Input/Output TMDS signal: 0.5 ~ 1.5V olts p-p
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: 10m (1080P) /5M (4K) AWG26 HDMI standard cable
Output cable distance: 15m (1080P) /5M (4K) AWG26 HDMI standard cable
Max working current: 700mA
Power adapter format:
Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Dimension (L x W x H): 205x74x26 (mm)
Weight: 440g
Package Included:
1x Main unit 6x2 Matrix
1x Remote controller (no battery)
1x 5V/2A power adapter
1x User manual
