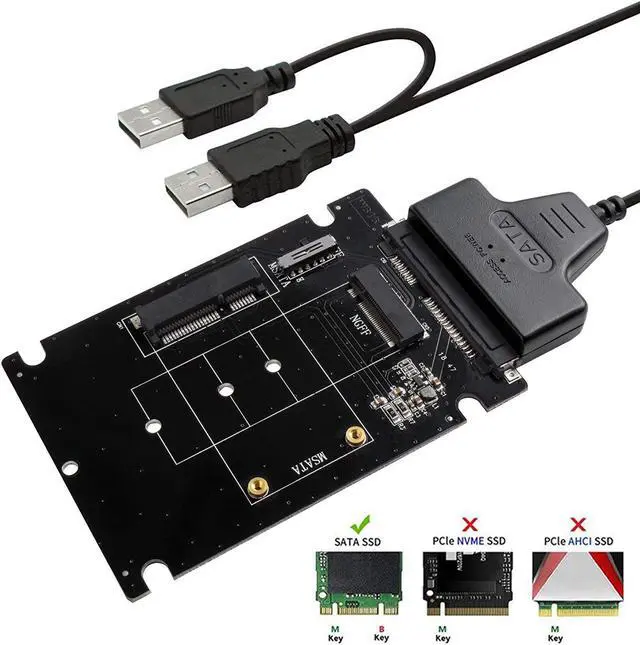

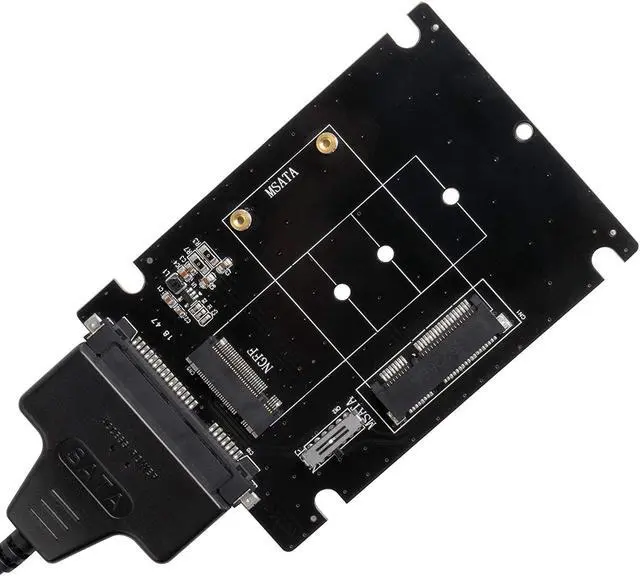

WERLEO M.2 or MSATA to USB or SATA 3.0 Adapter 2-in-1 Converter Reader Card with Cable Support Mini SATA or Ngff B Key SSD

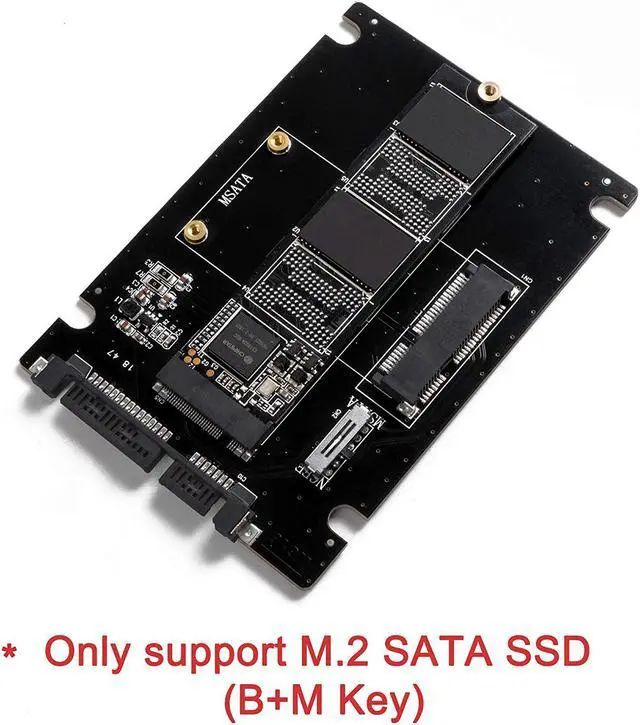

Highlights: Used for transmit data or read & test the M. 2 or Msata SSD. Support full size mSATA SSD; Support M. 2 SATA SSD (2230 2242 2260 2280) with Key B+M.
Note: DO NOT SUPPORT M KEY PCIe NVME M. 2 SSD. Before buying, Please Check Your M. 2 SSD is SATA Channel or PCI-E Channel on it's Brand Website. Jumper switch design, you could easily adjust the switch to the SSD mode installed. Support Hi-Speed SATA3 6Gbps mass storage interface. Read speed up to 520MB/s. Red LED indicates power status; Blue LED indicates active status; Thermal shutdown protection.
Package contain: 1. SATA III Board Adapter 2.

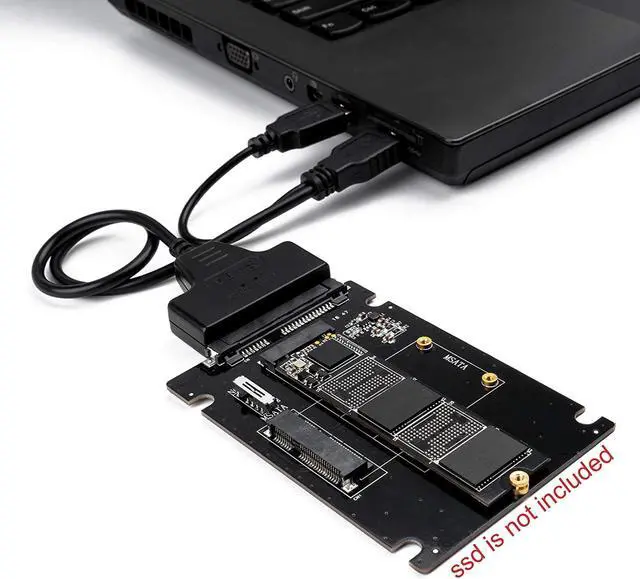

SATA Cable Features: - The all new 2-1 Thunder Board is the latest All in one M. 2 & mSATA SSD to SATA Adapter in the market. - Use it to easily connect any of the 6 different size M. 2 or mSATA SSDs to any SATA port. - Once connected the M. 2 SSD shows on your desktop or laptop computer as a new partition. - It can be used as a bootable disk and requires no extra driver. - It is suitable for both PC and Mac systems. - With read speed up to 520MB/s.

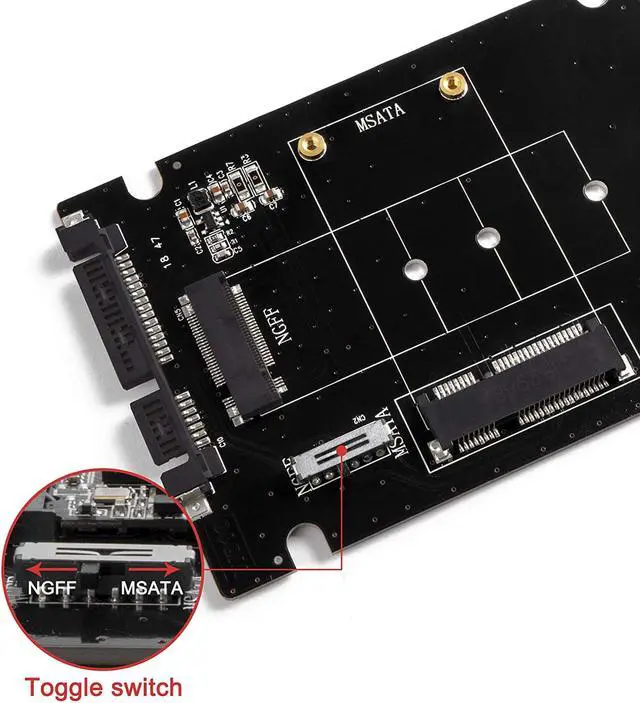

Notice: If M. 2 SSD inserted, the switch should be dialed to the NGFF. If mSATA SSD inserted, the switch should be dialed to the MSATA.
Specifications: -
Dimension: 113 x 81.5 mm. - M. 2 (NGFF) & mSATA to SATA III Adapter board. - Red LED indicates power status; Blue LED indicates active status. - Support SATA Reversion 3.2. - PCI Express M. 2 Spec. Revision 0.7, Version 1.0. - PCI Express Mini Card Electromechanical Spec. 1.2. - Thermal shutdown protection. - Short circuit protection, In-rush current suppression. Support the following form factor M.
2 (NGFF) SSD: Type
2230-D2-B-M: 30mm (L) x 22mm (W)
Type 2242-D2-B-M: 42mm (L) x 22mm (W)
Type 2260-D2-B-M: 60mm (L) x 22mm (W)
Type 2280-D2-B-M: 80mm (L) x 22mm (W) Support the following form factor

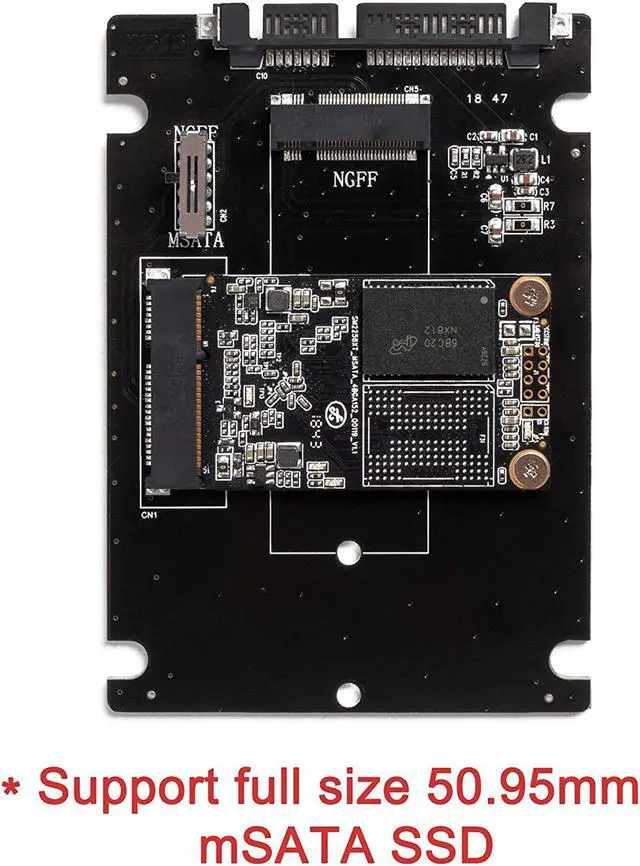

mSATA SSD: Full
size mSATA: 50.95 mm (L) x 30mm (W)
