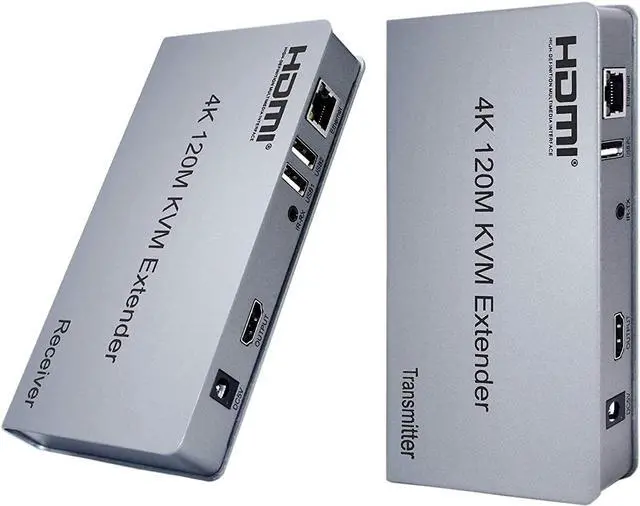

4K HD KVM HDMI Extender (Transmitter and Receiver) with HDMI Loop Out and IR Control Supports Touch Screen Function, Via Cat 5e / 6/7 Cable Up to 120M/394ft
- Can transmit HDMI signals (Full HD 4K 30Hz 3D) and KVM signals (keyboard and mouse) through a single CAT5e / CAT6 / CAT7 cable up to 120m. no delay, no loss.
- With the HDMI loop on the transmitter, users can connect to another local UHD display. The HDMI loop out and the video and audio output of the HDMI receiver are synchronized.
- Single side IR rear signal, users can control the input source on the receiver side of the far end. IR frequency supports 38 kHz.
- Both transmitter and receiver are equipped with a 3.5mm audio extractor, allowing users to connect them to an external speaker or sound box at the same time.
- Widely compatible with HDMI devices, such as computers, network players, set-top boxes, cameras and other devices.
+
+
Overview
Specs
Reviews
Features:
* Supports HDMI 1.4 / HDCP 1.4;
* With HDMI loop out;
* Support IR infrared control;
* Supports USB keyboard and mouse extension;
* Support touch screen operation;
HDMI 1.4 / HDCP 1.4 compliant.
Maximum bandwidth: 340 MHz.
Maximum transmission rate: 3x 3.4G bps
Supported HDMI resolution: 4k @ 30Hz / 1080p / 720p / 576p / 576i / 480p / 480i
Color depth: 8/10/12-bit.
Transmission distance: 120m over shielded CAT5e / CAT6 cable
TX Weight: 499g
RX Weight: 494 g.
Size: 107 x 105 x 27.3 mm.
Packaging accessories:
1: Extender transmitter X1
2: X1 Extender Receiver
3: Infrared transmission and reception line X2
4: Power supply unit 5V / 1A X2
5: User manual X1

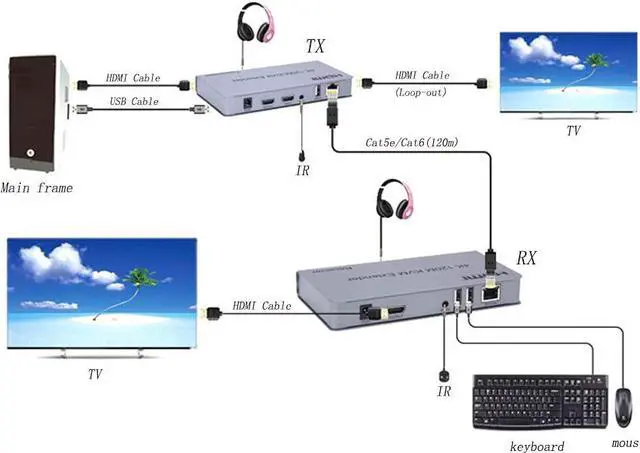

Installation:
1. Connect an HDMI cable between the source device and the TX extender. less than 10 m for AWG26.
2. Connect an HDMI cable between the display device and the RX extender, less than 10m for AWG26.
3. Connect individual Cat5e or Cat6 cables (recommended) between the TX and RX extender instead of HDMI cables. The maximum cable distance is 120m.
4. Connect the 5V power supply to TX and RX.

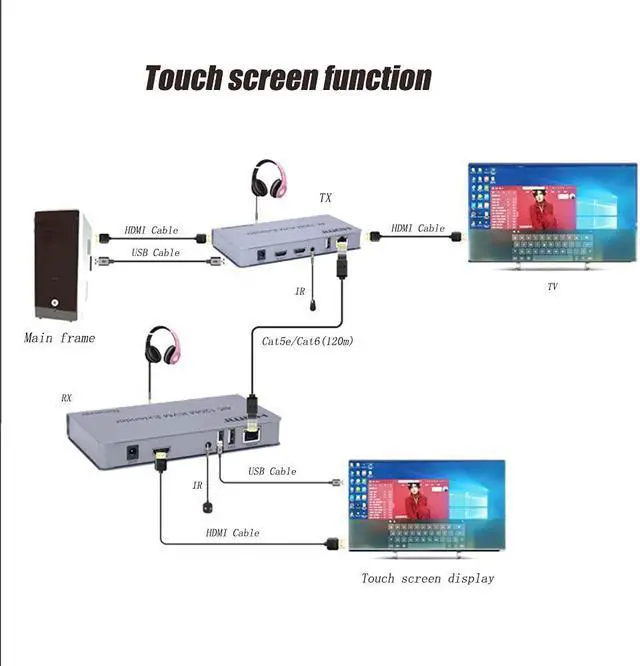

5. Connect the mouse and keyboard to the USB ports of the receiver and connect the USB port of the transmitter to the computer when you need the KVM control function. When using the touch screen function, please connect one of the receiver's ports to the touch screen's USB port.
6.
LED TX indicator light: turn it on, green light; when there is a signal input, the yellow light will flash.
7.
RX LED indicator light: turn it on, green light; when there is a signal input, the yellow light will flash.
8. If two connected displays do not have the same resolution, this extender decreases and gives the synchronized resolution and synchronization
* Supports HDMI 1.4 / HDCP 1.4;
* With HDMI loop out;
* Support IR infrared control;
* Supports USB keyboard and mouse extension;
* Support touch screen operation;
Specifications
:HDMI 1.4 / HDCP 1.4 compliant.
Maximum bandwidth: 340 MHz.
Maximum transmission rate: 3x 3.4G bps
Supported HDMI resolution: 4k @ 30Hz / 1080p / 720p / 576p / 576i / 480p / 480i
Color depth: 8/10/12-bit.
Transmission distance: 120m over shielded CAT5e / CAT6 cable
TX Weight: 499g
RX Weight: 494 g.
Size: 107 x 105 x 27.3 mm.
Packaging accessories:
1: Extender transmitter X1
2: X1 Extender Receiver
3: Infrared transmission and reception line X2
4: Power supply unit 5V / 1A X2
5: User manual X1
Installation:
1. Connect an HDMI cable between the source device and the TX extender. less than 10 m for AWG26.
2. Connect an HDMI cable between the display device and the RX extender, less than 10m for AWG26.
3. Connect individual Cat5e or Cat6 cables (recommended) between the TX and RX extender instead of HDMI cables. The maximum cable distance is 120m.
4. Connect the 5V power supply to TX and RX.
5. Connect the mouse and keyboard to the USB ports of the receiver and connect the USB port of the transmitter to the computer when you need the KVM control function. When using the touch screen function, please connect one of the receiver's ports to the touch screen's USB port.
6.
LED TX indicator light: turn it on, green light; when there is a signal input, the yellow light will flash.
7.
RX LED indicator light: turn it on, green light; when there is a signal input, the yellow light will flash.
8. If two connected displays do not have the same resolution, this extender decreases and gives the synchronized resolution and synchronization
