Mikrotik RouterBoard mAP RBmAP2nD micro Access Point wireless Dual-Chain

Model: RBmAP2nD (10 UNITS)

Mikrotik Wireless Dual-Chain 2.4GH z Micro Access Point

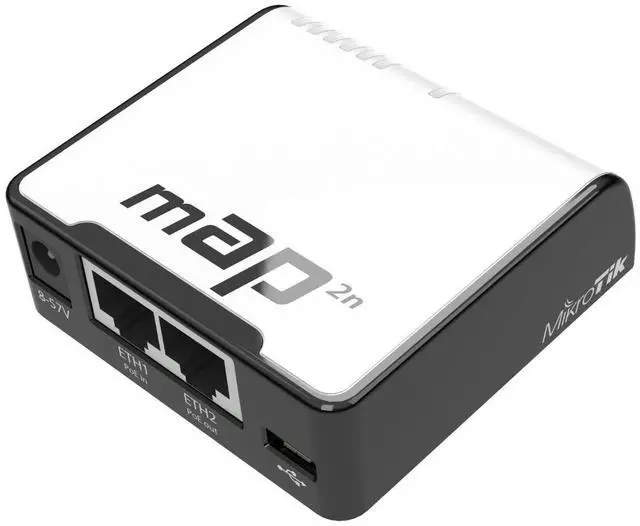

The mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GH z Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.

Technical Description
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
Dimensions 68x68x19mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -20°C to 70°C
MicroUSB input Voltage 5-5 V
PoE in 802.3 af/at
PoE in input Voltage 12-57 V
PoE out Passive PoE
PoE-out ports Ether2
Number of DC inputs 3 (PoE-IN, DC jack, MicroUSB)
DC jack input Voltage 8-57 V
Max out per port output (input <30 V) 0.5 A
Max total out (A) 0.5 A
Max power consumption 5 W
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11 b/g/n
Antenna gain dBi for 2.4 GHz 1.2
Wireless 2.4 GHz chip model QCA9531
Wireless 2.4 GHz generation Wi-Fi 4
10/100 Ethernet ports 2
Number of USB ports 1
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1
PCB temperature monitor Yes
Voltage Monitor Yes
