Specifications: Converter Type: Passive
Output Signal: DVI-D (DVI Digital)
Maximum Digital Resolutions: 1920 x 1200 / 1080p
System and Cable Requirements: DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported)
Specifications: Connector A DISPLAYPORT (MALE)
Connector B DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Connector C HD15 (FEMALE)
Connector D HDMI (FEMALE)
Specifications: Chipset: PTN3361B
Compliant with DisplayPort 1.1a receiver
Compliant with DVI 1.1 specification
Configurable 1 or 2 lane operation
Supports Down Spread Spectrum (SSC)
Display modes:
PC: VGA, SVGA, XGA, SXGA & UXGA display modes
HDTV: 480i, 576i, 480p, 576p, 1080i and 1080p
Product:
Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
Weight: 0.09 lbs
Color: Black
Material: Plastic
Connector:
Connectors: 20-Pin DisplayPort (male) to 24-pin DVI-D (female)
DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
DVI-D connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Humidity: < 85% non-condensing
Certifications/ Standards: FCC, CE, RoHS
Warranty: 3 ...
Changer Type: Mini DisplayPort to VGA / DVI / HDMI
Color: White
Specifications: Mini DP to VGA/DVI/HDMI adapter connects your Mini DisplayPort or Thunderbolt 1/2 laptop or tablet to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays-no more carrying multiple adapters
Delivers high-definition picture quality at resolutions up to 1920 x 1200, including 1080p
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation
Passive adapter requires connected computer to have DP++ port for signal pass-through
Changer Type: Mini DisplayPort 1.2 to VGA/DVI/HDMI All-in-One Converter Adapter
Color: Black
Specifications: Mini DP to HDMI/VGA/DVI adapter connects your Mini DP or Thunderbolt 1/2 laptop to a VGA, DVI or HDMI display.
Multiple video outputs connect to most displays—no more carrying multiple adapters
HDMI port delivers UHD quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
DVI and VGA ports support 1080p for sharp high-definition video presentations
Compact unit fits easily into briefcase or laptop bag for instant use anywhere
Plug-and-play operation with no software required for easy, immediate installation

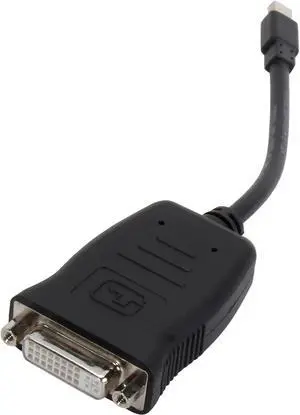

Specifications: Connect a Tablet or Smartphone to a DVI Display Monitor
Compatible with HDTV resolutions up to 1080P
View presentations, Videos or pictures on a DVI monitor or projector
Specifications: Product Type: Video Cable
Product Name: Mini DisplayPort/DVI Video Cable
Device Supported: Video Device
Connector on First End: Mini DisplayPort Male Digital Audio/Video
Connector on Second End: DVI Female Video
Cable Type: Mini DisplayPort/DVI
