    GIGABYTE Z790I AORUS ULTRA LGA 1700 Intel Z790 Mini-ITX Motherboard with DDR5, Dual M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Killer Wi-Fi 6E, Intel 2.5GbE LAN, Q-Flash Plus

    (6)(1) Write a Review

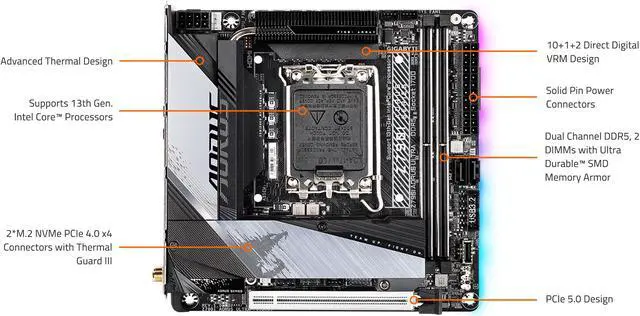

    • Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
    • DDR5 Compatible: Dual Channel DDR5
    • Commanding Power Design: 10+1+2 Direct Digital VRM Solution with 105A Smart Power Stage
    • Cutting-Edge Thermal Design: Thermal Guard III, Fins Array II, 2X Copper PCB, Ultra Durable SMD Memory Armor
    • Next Gen Connectivity: PCIe 5.0, 2* PCIe 4.0 M.2, USB 3.2 Gen 2x2 Type-C
    • Fast Networking: Intel 2.5GbE LAN, Intel Killer WiFi 6E 802.11ax
    • Dynamic Audio: Realtek ALC 4080 Audio
    • Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU"
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (6)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the GIGABYTE Z790I AORUS ULTRA

    Model
    Brand GIGABYTE
    Model Z790I AORUS ULTRA
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
    Chipsets
    Chipset Intel Z790
    Memory
    Number of Memory Slots 2x288pin (DDR5)
    Memory Standard DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400
    Maximum Memory Supported 96GB
    Channel Supported Dual Channel
    Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Expansion Slots
    PCI Express 5.0 x16 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
    Storage Devices
    Serial ATA (SATA) 2 x SATA 6Gb/s
    M.2 1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    SATA RAID RAID 0 and RAID 1 support for SATA storage devices
    Additional RAID Controller RAID 0 and RAID 1 support for NVMe SSD storage devices
    Onboard Audio
    Audio Chipset Realtek ALC4080
    Onboard LAN
    Max LAN Speed 2.5Gbps
    Wireless LAN Intel Killer Wi-Fi 6E AX1690
    Bluetooth Bluetooth 5.3
    Rear Panel Ports

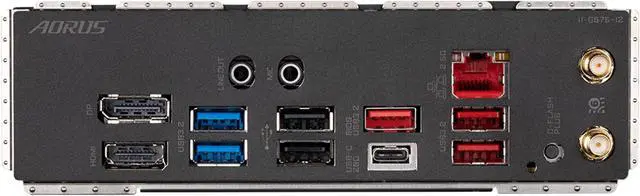

    Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Q-Flash Plus Button / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header (Note 1)
    Other Connectors 1 x external power connector (Note 1)
    1 x CPU fan header
    1 x fan/water cooling pump header
    2 x system fan headers (SYS_FAN1/SYS_FAN2 (Note 1))
    1 x addressable LED strip header (Note 1)
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors (M2A_CPU (Note 2)/M2P_SB (Note 1))
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header (routed from the adapter card on the rear panel)
    1 x speaker header
    1 x reset button (Note 1)
    1 x reset jumper
    1 x Clear CMOS jumper
    (Note 1) The connector is on the front of GC-Z790I BTB PLUG.
    (Note 2) The connector is on the back of GC-Z790I BTB PLUG.
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    Features
    Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Additional Information
    First Listed on Newegg February 12, 2025
