Question 1

Do i need am AM3+ Board for this or will an AM3 work?

Accepted Answer

The R9 isn't a CPU, it's a graphics card so it's based on your motherboards PCI Express # not your motherboards CPU type. As long as you have a 2.0 x 16 it should be fine.

Question 2

Hi I'm relatively new to the custom pc world and I've been enjoying all the help Newegg has to offer but there are some questions that only users can answer fully. I would very much appreciate the help.

How much power is needed for this particular card?

Are there any sizing issues I should be aware of when installing?

Does temperature become an issue even if it isn't overclocked?

What Pins would most benefit this card?

Accepted Answer

The card itself will pull around 170 watts max at stock clock speeds.

This card is relatively small compared to larger cards years ago, I do recommend measuring quick if you have a small case. I have had no issues fitting this card into numerous mid tower cases.

It's a pretty cool running card, so long as you have decent air flow through your case, there isn't much to worry about. (Keep your case and heatsinks clean from dust)

Pins would benefit?

Question 3

Does the code for BF4 come inside the box? Or is it shipped separately by Newegg?

Accepted Answer

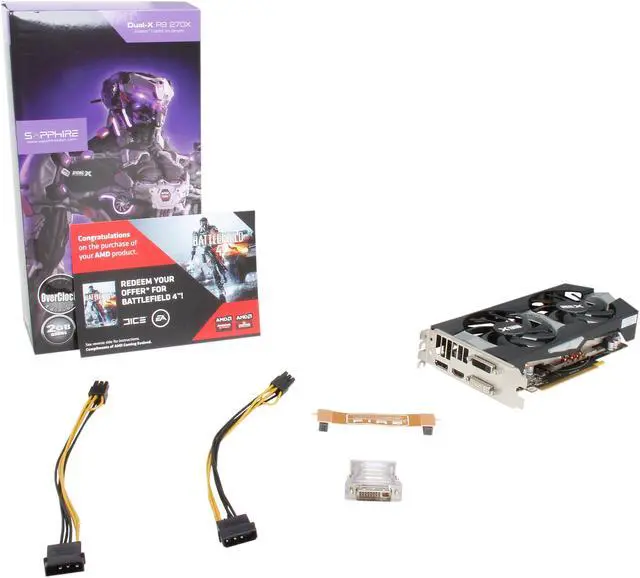

Inside the box is a card that you scratch off for a code to redeem at amd's website. The card includes instructions on how to redeem the code.

Question 4

Can you run three monitors with this?

Accepted Answer

Absolutely. You could even go up to six. But be advised that you will likely need an adaptor unless you are really lucky with the plugs on your monitors.

Question 5

if i buy this within the week will i be able to get bf4?

Accepted Answer

Yes as long as the offer stands when you order it you should be able to get free BF4 even if the offer expires the next day.

Question 6

Can I run this card on my mother board (MSI 990FXA-GD80 V2 AM3+ AMD 990FX SATA 6Gb/s USB)? Thanks Greg

Accepted Answer

Yes Gregory you can. The Radeon actually seems to work great in tandem with my AMD 8 core.  Its a great card and plays BF4 On all high settings without breaking a sweat.

Question 7

Is it possible to fit this in a PCI-E (1.x) slot?
I heard that it was on another site but I need confirmation.
I do realize that if it does fit it will lower the performance of the card by about 10-15%.

Accepted Answer

no. it has to go into the slot its meant to go in

Question 8

Also, my motherboard is only 2.0 PCI EXPRESS NOT a 3.0. Can I install this kind of video card?

Accepted Answer

Yes PCI Express 2.0 is backwards compatible with PCI Express 3.0 as long as you have a PCI Express 2.0 slot available on your MOBO you will be able to run this card no problem. For now there is no performance increases or decreases with PCI 3.0 but there might be in the future (speculation/Theory)

Question 9

The system requirements of this card say that it needs a 500W power supply, but the online power supply wattage calculator I used said that my build would only need a 430W PSU. Do I need to buy a 500W PSU to use this graphics card?

Accepted Answer

Yes, you need some overhead to be safe anyway and with the prices of good power supplies so low these days, I'd get a 550w... too high and you will lose efficiency though.

Question 10

Can this graphics card support three displays at the same time in extended mode?

Accepted Answer

Yes

Brand	SAPPHIRE
Series	DUAL-X
Model	100364BF4L

Chipset Manufacturer	AMD
GPU	Radeon R9 270X
Core Clock	1020MHz
Stream Processors	1280 Stream Processors

Effective Memory Clock	5600 MHz
Memory Size	2GB
Memory Interface	256-Bit
Memory Type	GDDR5

DirectX	DirectX 11.2
OpenGL	OpenGL 4.3

HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
DVI	1 x DVI-D 1 x DVI-I

Meet Your Seller

SAPPHIRE DUAL-X Radeon R9 270X 2GB GDDR5 PCI Express 3.0 CrossFireX Support Graphics Card 100364BF4L

Learn more about the Sapphire Tech 100364BF4L

Customer Reviews of the Sapphire Tech 100364BF4L

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Eyefinity Support	Yes
CrossFireX Support	Yes
Cooler	With Fan
Thermal Design Power	160W
System Requirements	500 Watt Power Supply is required 2 x 75 Watt 6-pin PCI Express power connector is required. 600 Watt Power Supply is recommended for CrossFireX System 4 x 75 Watt 6-pin PCI Express power connector is required for CrossFireX system.
Power Connector	2 x 6-Pin
Dual-Link DVI Supported	Yes

Card Dimensions (L x H)	9.0"(L) x 4.3"(W) x 1.4"(H)
Slot Width	2 Slots

Item#: 9SIB1PGFBY8232
