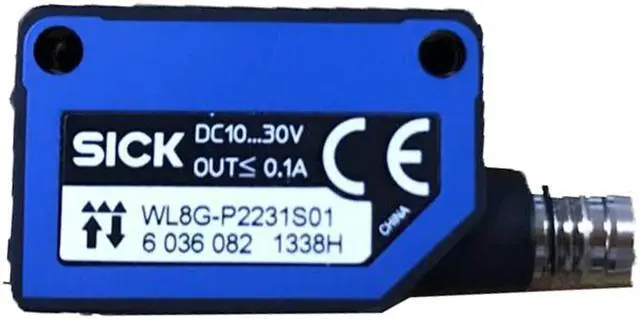

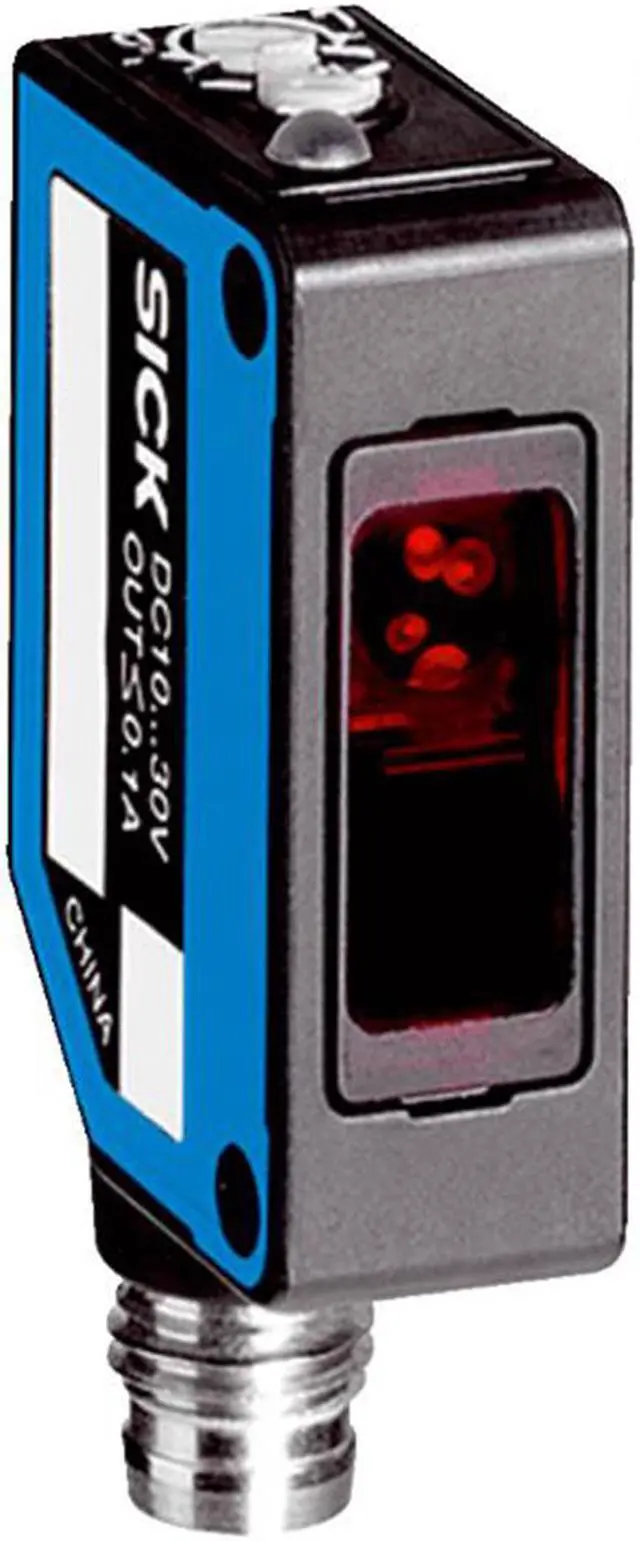

SICK WL8G-P2231S01 Photoelectric Retro-reflective Sensor ,PNP,New
- SICK WL8G-P2231S01 Photoelectric Retro-reflective Sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation

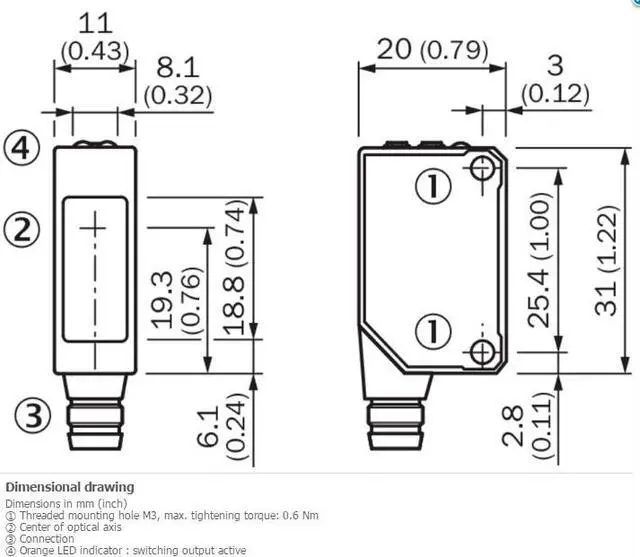

Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 3 m 1)
Sensing range 0 m ... 1.7 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 70 mm (2 m)
Wave length 650 nm
Adjustment Potentiometer, 270°
Special applications Detecting transparent objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Attenuation along light beam = 20 %
Connection type Male connector M8, 4-pin
Circuit protection
A 6)
B 7)
D 8)
Weight 10 g
Polarisation filter ?
Special device ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Detecting transparent objects
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
Sensor/ detection principle Photoelectric retro-reflective sensor, autocollimation
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 3 m 1)
Sensing range 0 m ... 1.7 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 70 mm (2 m)
Wave length 650 nm
Adjustment Potentiometer, 270°
Special applications Detecting transparent objects
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple ± 10 % 2)
Power consumption 30 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark rotary switch
Signal voltage PNP HIGH/LOW Approx. VS – 1.8 V / 0 V
Output current Imax. = 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Attenuation along light beam = 20 %
Connection type Male connector M8, 4-pin
Circuit protection
A 6)
B 7)
D 8)
Weight 10 g
Polarisation filter ?
Special device ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating IP67
Special feature Detecting transparent objects
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
