Protect your entire home theatre and a/v system with the same protection America's leading companies have trusted for more than 20 years. With more than 14 million satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a generous combination of high quality components, near indestructable all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts. Isobar's unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment. ISOBAR6DBS offers 6 outlets arranged in three filter banks to prevent crashes, reboots and performance problems common as other connected devices are powered off and on. Surge suppression rated at 2850 joules / 92,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Two built in pairs of type F coax jacks cover two coax signal lines for satellite dishes, cable TV, broadcast antenna or cable modem applications. Built-in single line phone suppression protects pay-per-view connections and dialup modems. Includes 6 foot AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of 4 child safety covers. Lifetime warranty with $50,000 Ultimate Lifetime connected equipment Insurance (USA & Canada Only).
Learn more about the Tripp Lite ISOBAR6DBS
Model
Brand
TRIPP LITE
Series
Isobar
Model
ISOBAR6DBS
Details
Outlets
6 + TEL/TV
Outlets Type
NEMA 5-15R
Cord Length
6 Feet
Input Voltage
120V
Output Amperage Capacity
12
Output Watt Capacity
1440 Watts
AC Suppression Joule Rating
2850 Joules
EMI/RFI Noise Filter
Up to 40dB / 40 - 80dB
Clamping Voltage
140 Volts - RMS
Protection Modes
H-N, N-G and H-G
Certifications
UL, FCC, cUL
Color
Black
Features
Features
2850 Joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)
Isolated Filter Banks eliminate interference between connected components
All-metal housing safely withstands the strongest surges
6 surge-protected NEMA 5-15R AC outlets safeguard an entire home/business theater system
Widely spaced outlets accommodate up to 3 transformers
Four plug-in safety covers protect against accidental contact
2 sets of 2.2 GHz gold coaxial protection to safeguard components on cable, satellite or antenna line (includes 6-ft gold coax cable)
1-line tel/modem surge protection (with included 6-ft. phone cord) safeguards personal video recorders (PVRs) on a single dial-up line.
6 Feet cord with right-angle NEMA 5-15P plug provides convenient location anywhere within a home/business theater system

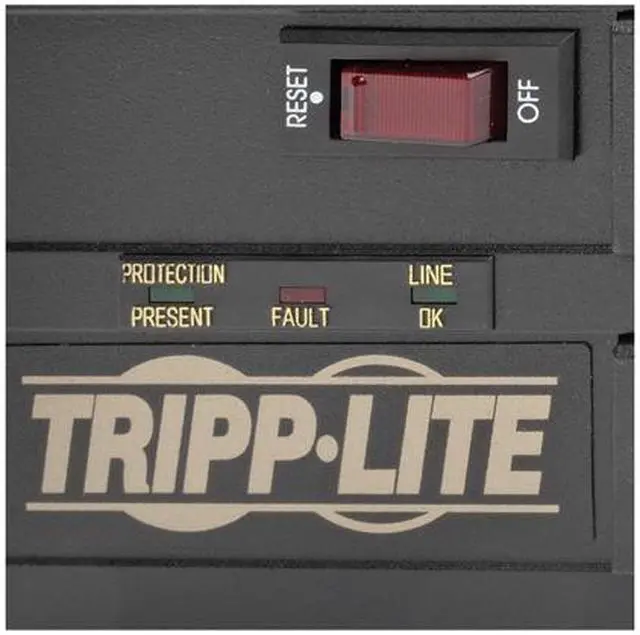

3 diagnostic LEDs alert user to protection, line power and fault status
Keyhole slots provide convenient wall or cabinet mounting
Illuminated master switch provides one-touch power control over all components. Circuit breaker protects against dangerous system overload
All-metal housing (black) stands up to the most demanding environments
UL and cUL listed
Dimensions & Weight
Unit Dimensions
3.50" x 9.00" x 2.50"
Unit Weight
2.80 lbs.
Package Contents
Package Contents

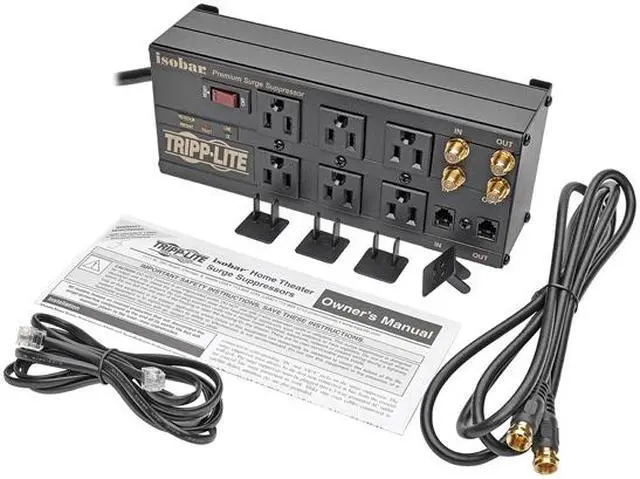

ISOBAR6DBS Home / Business Theater Surge Suppressor 6 Feet gold coaxial cable 6 Feet phone cord Instruction manual with warranty information
