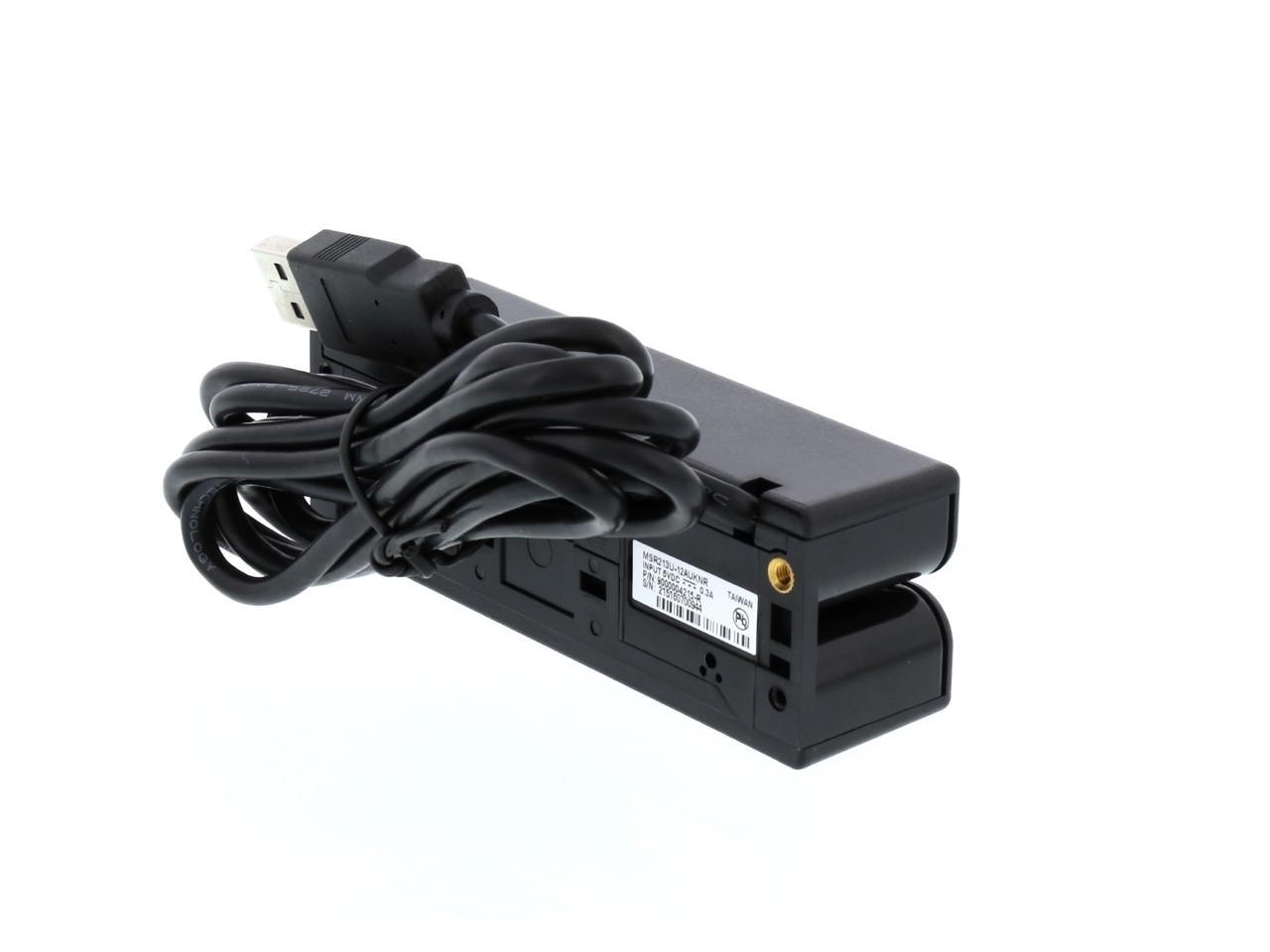

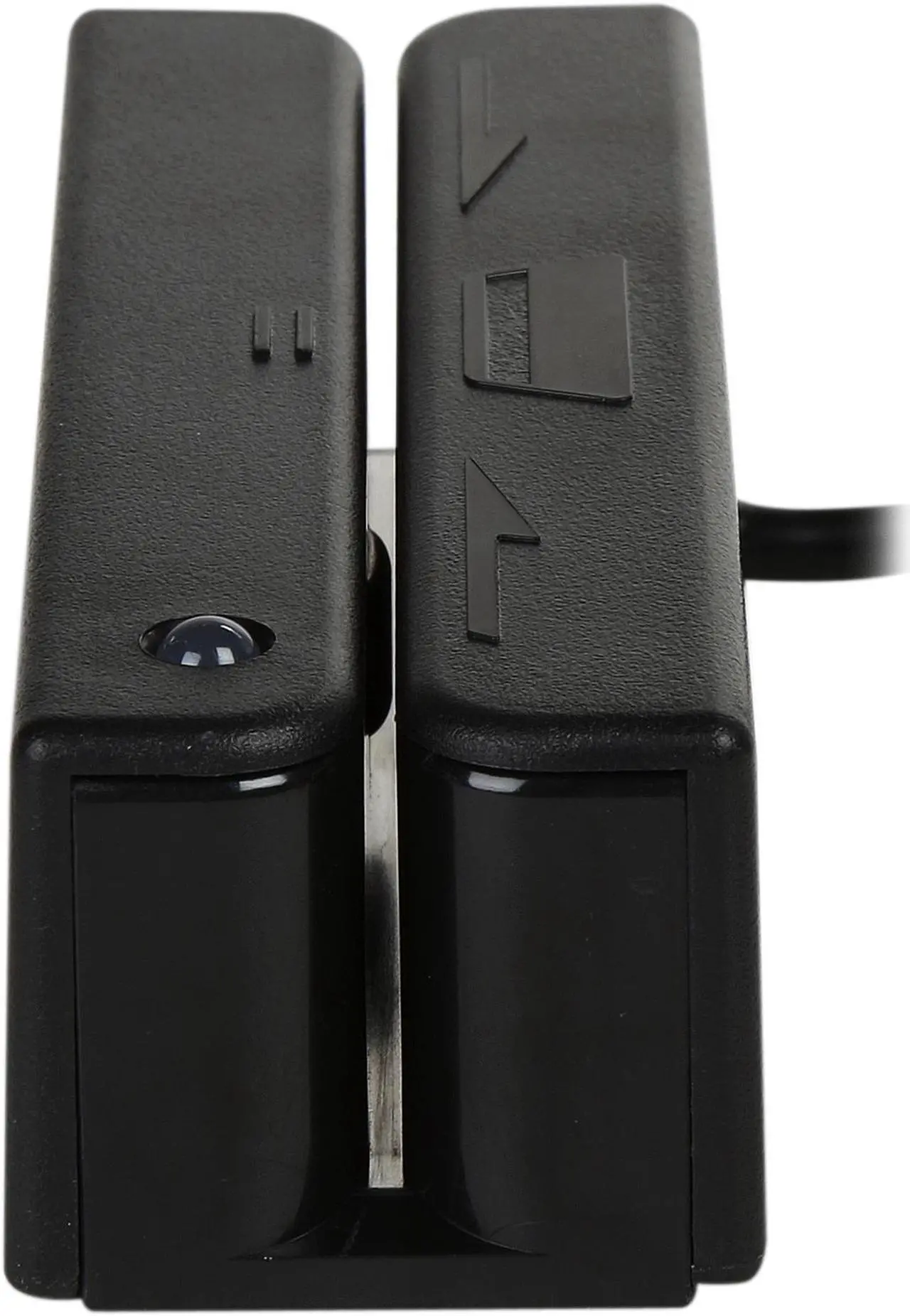

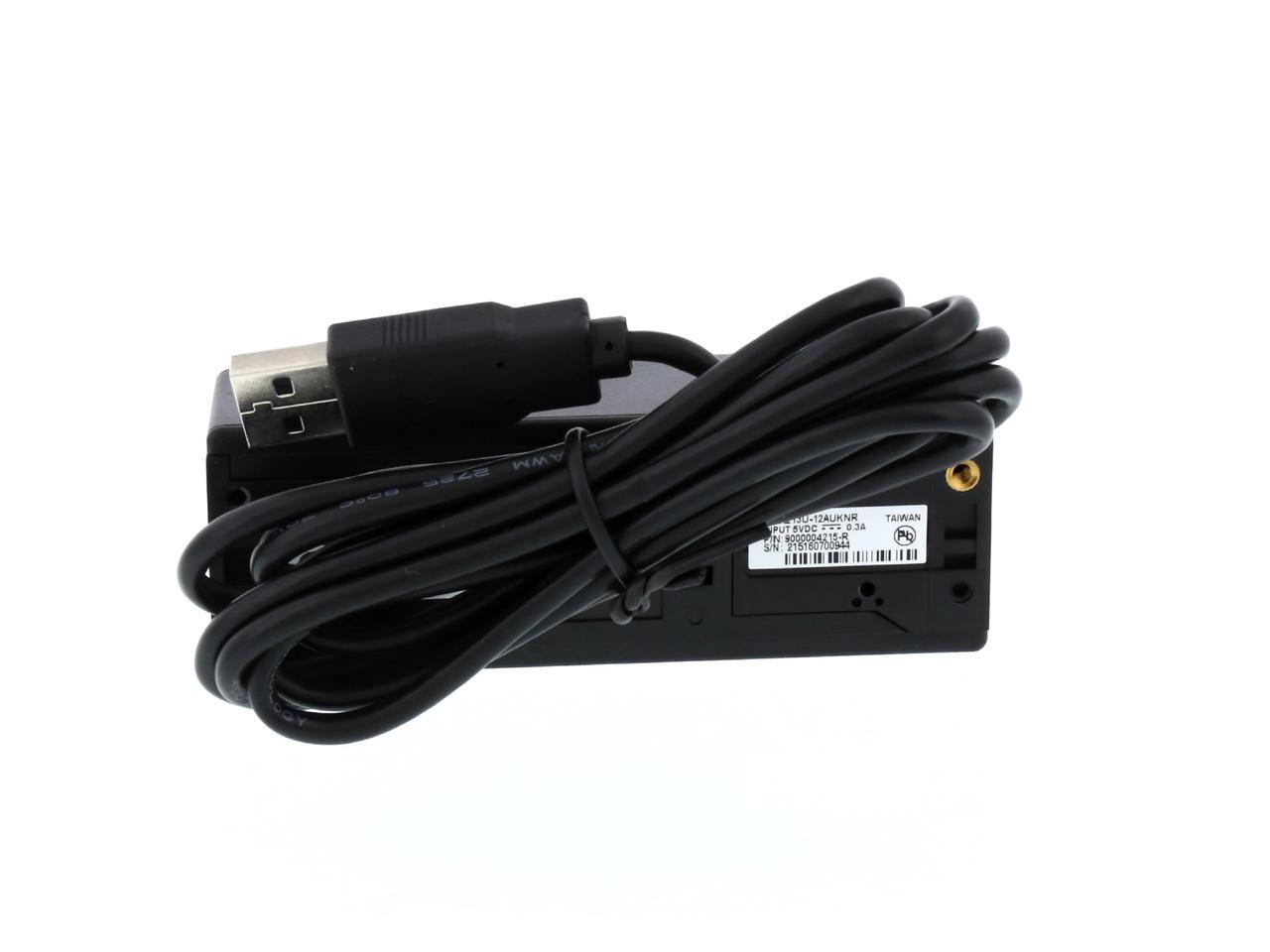

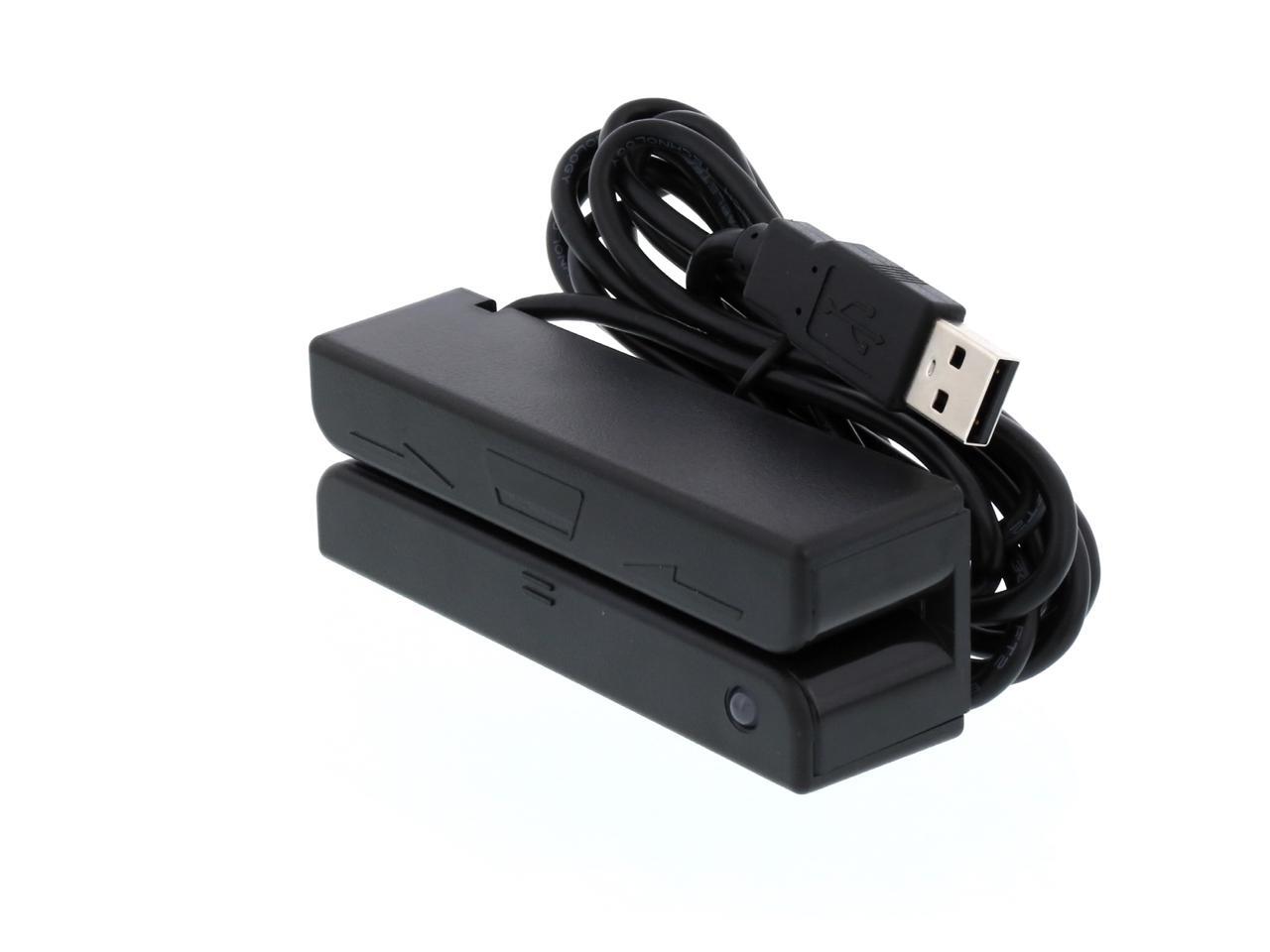

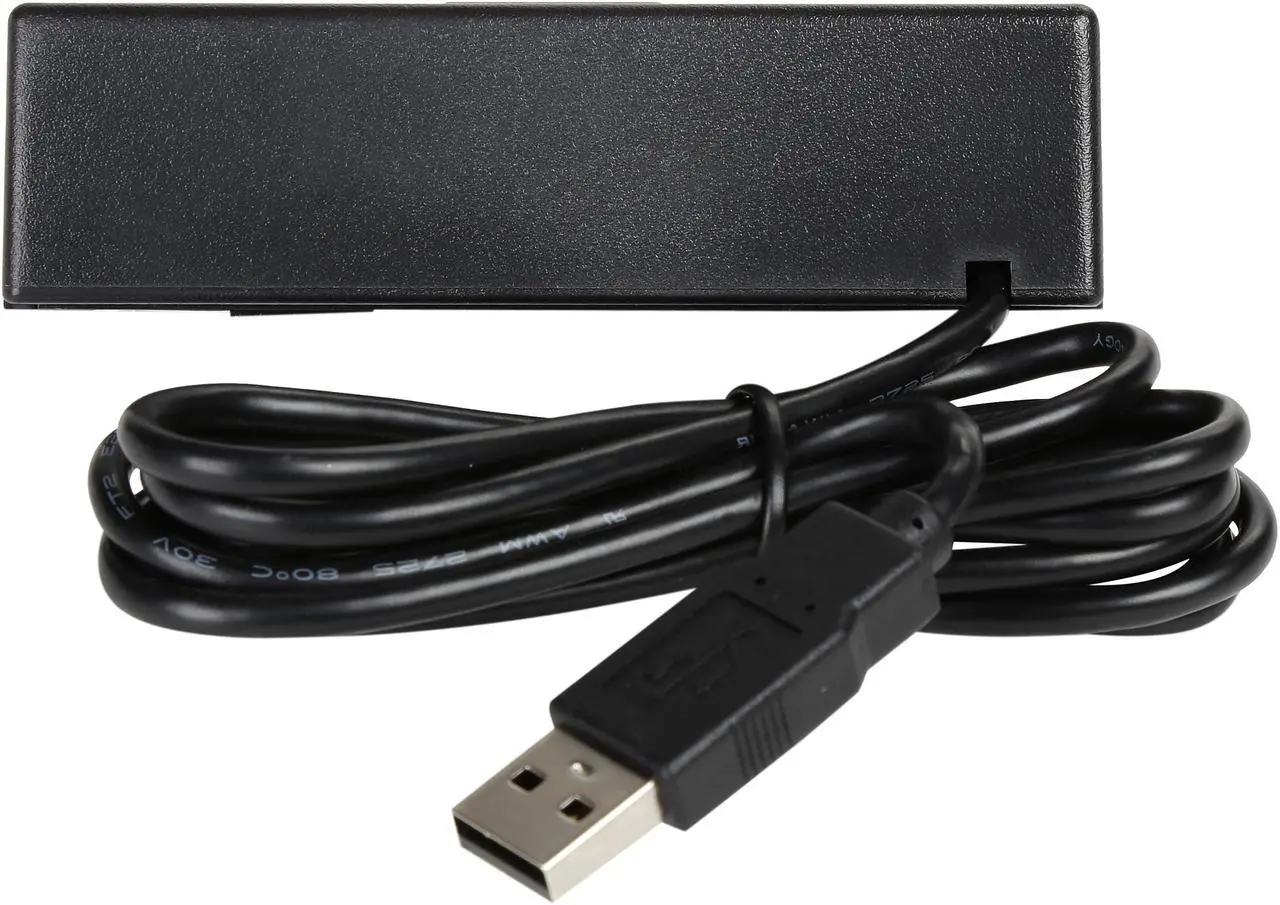

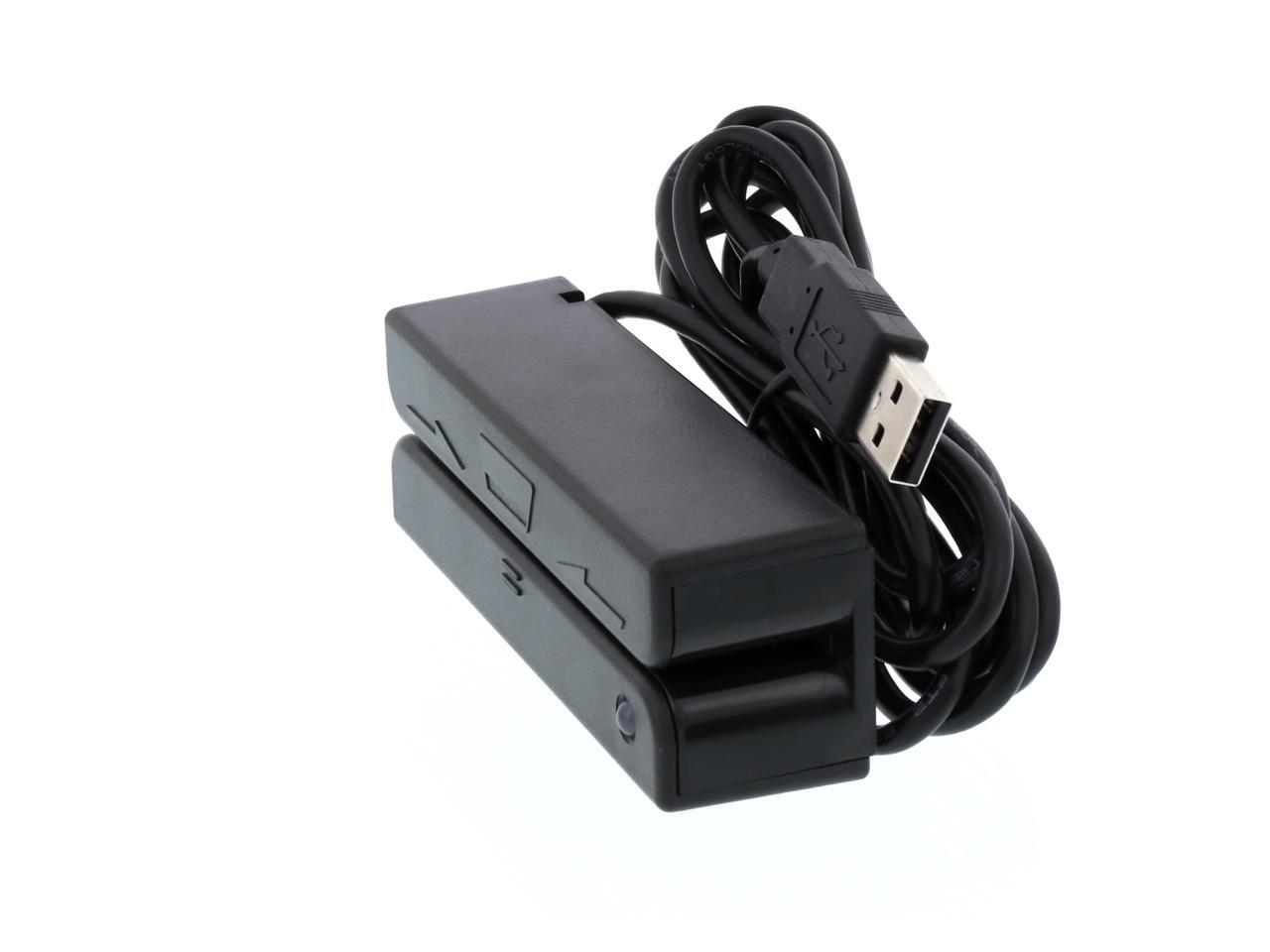

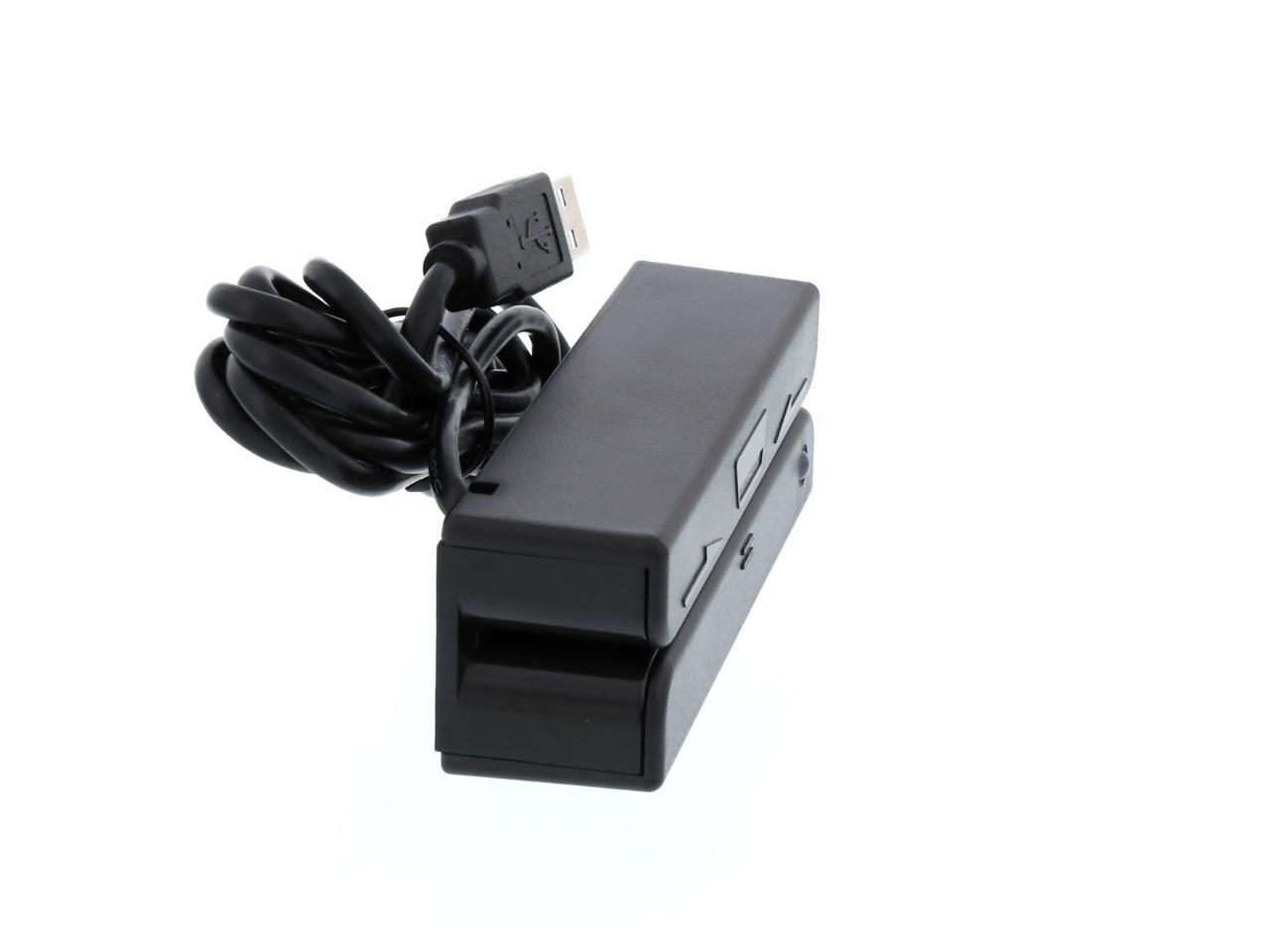

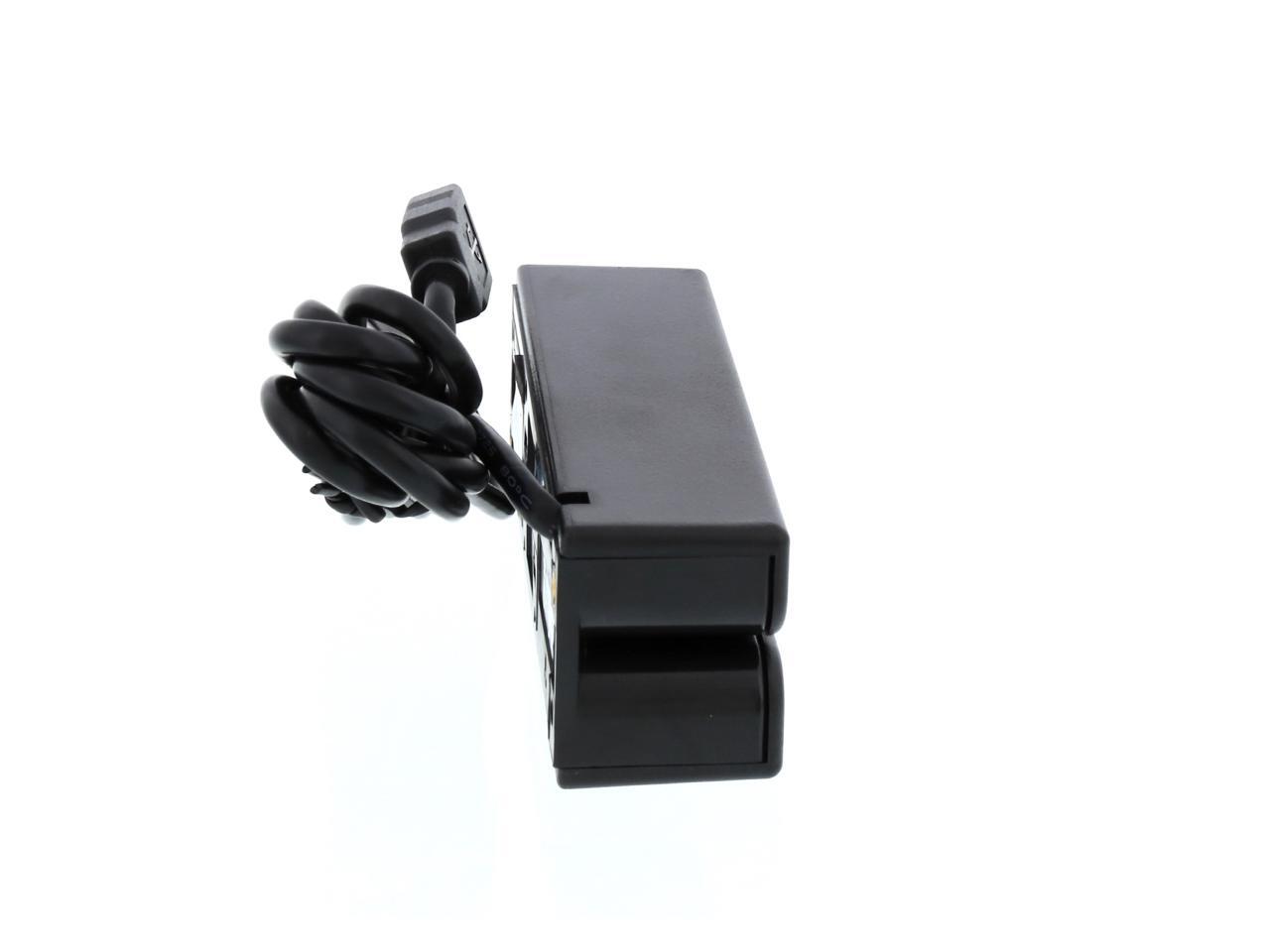

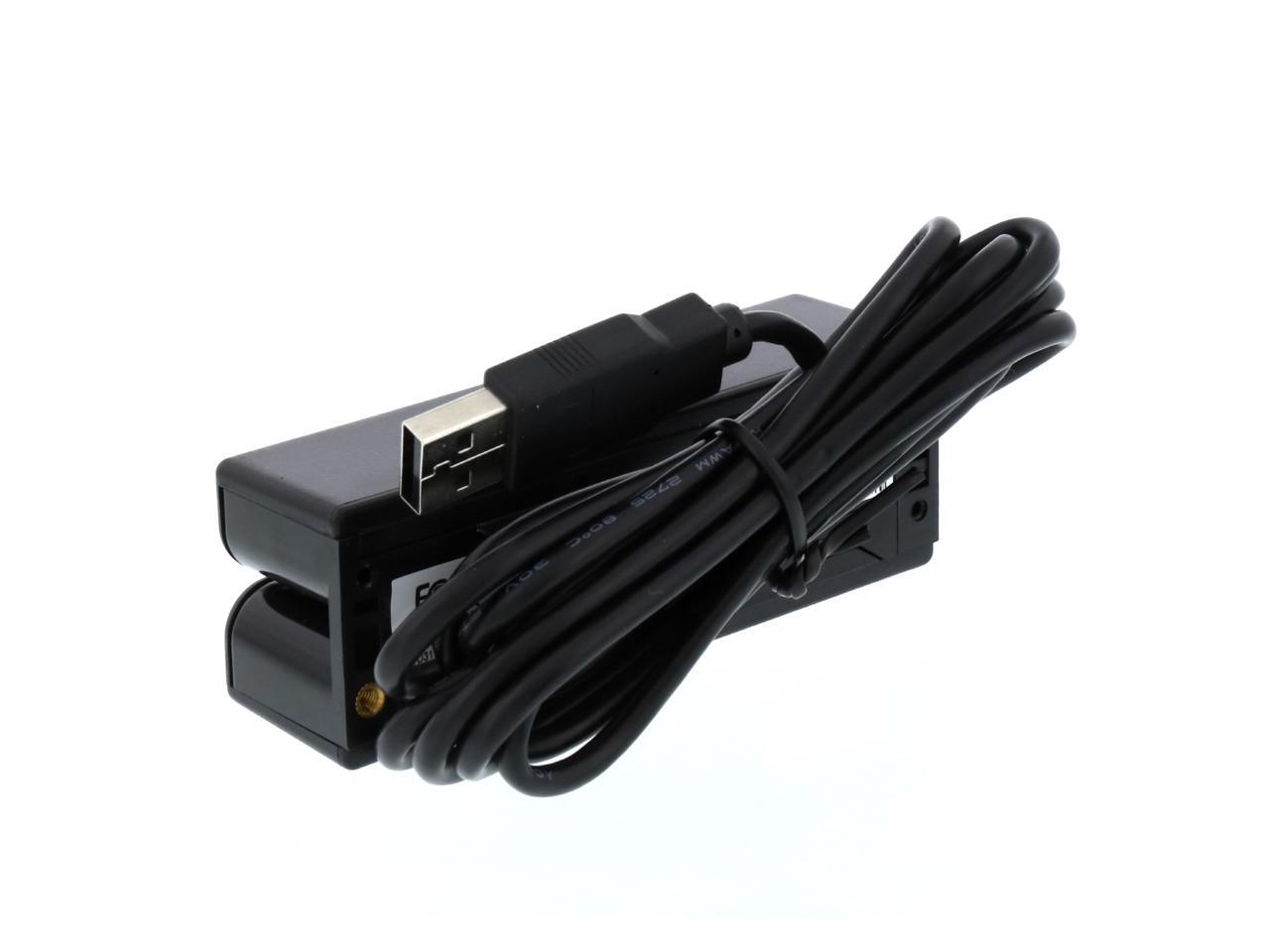

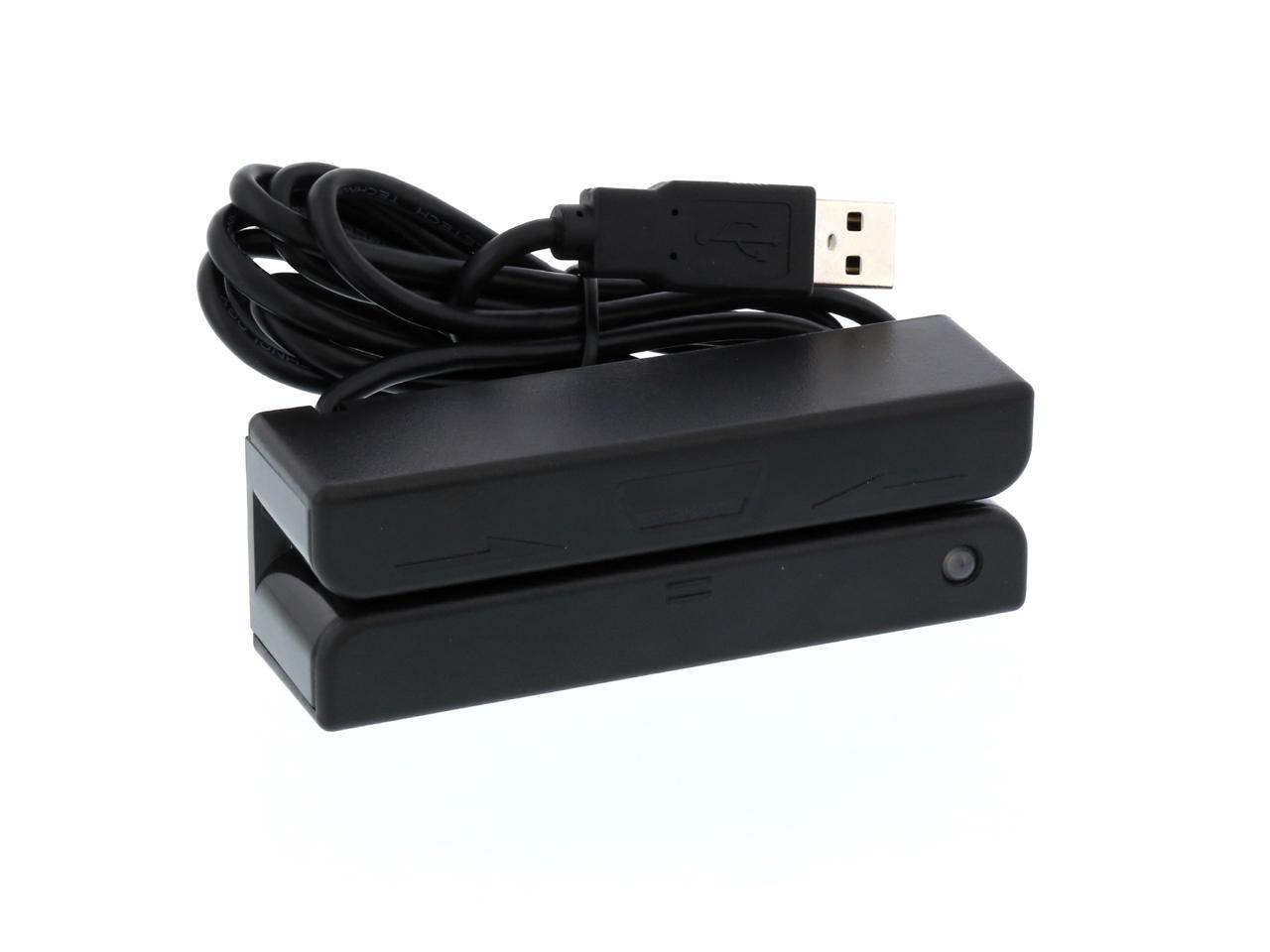

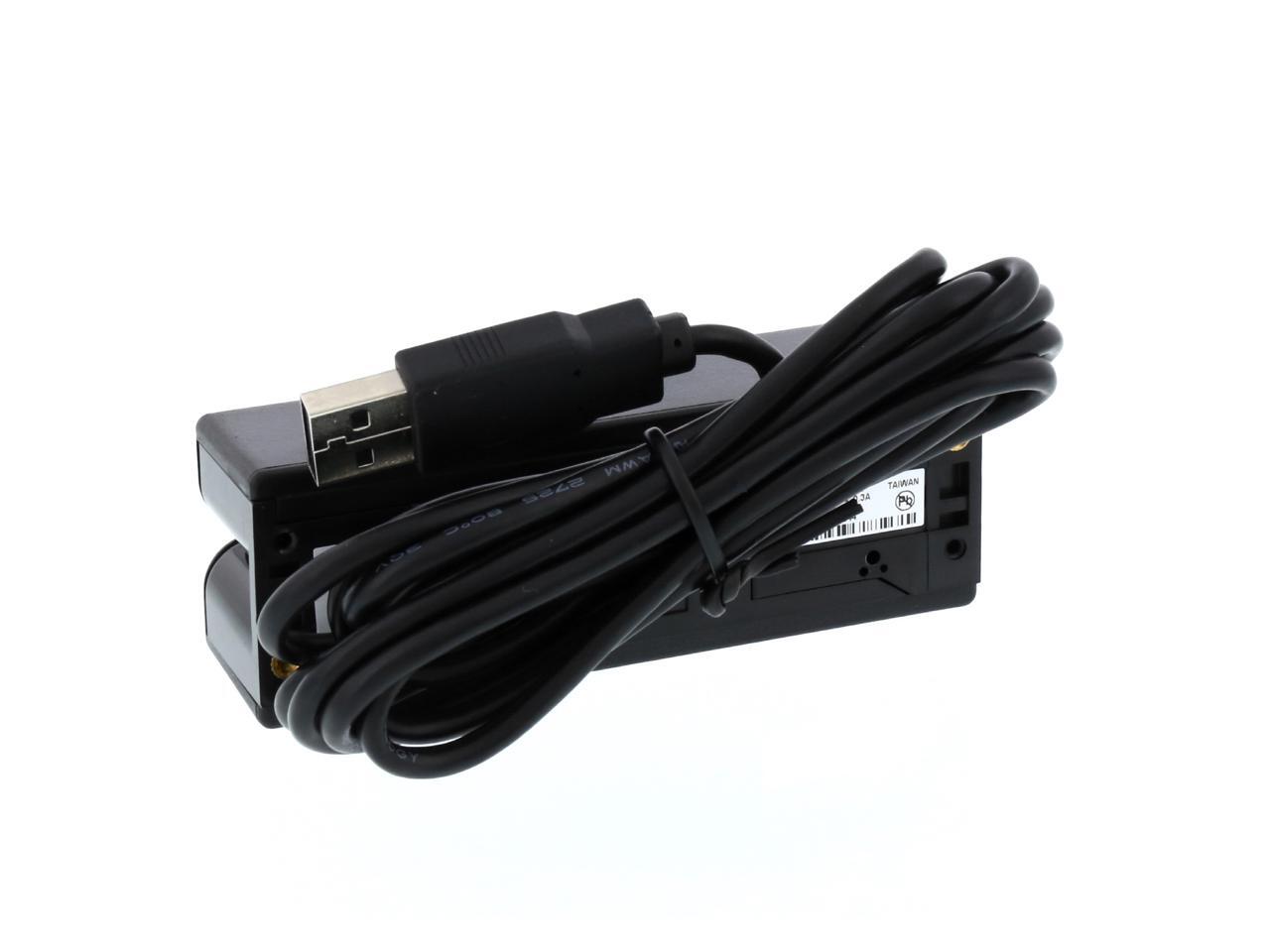

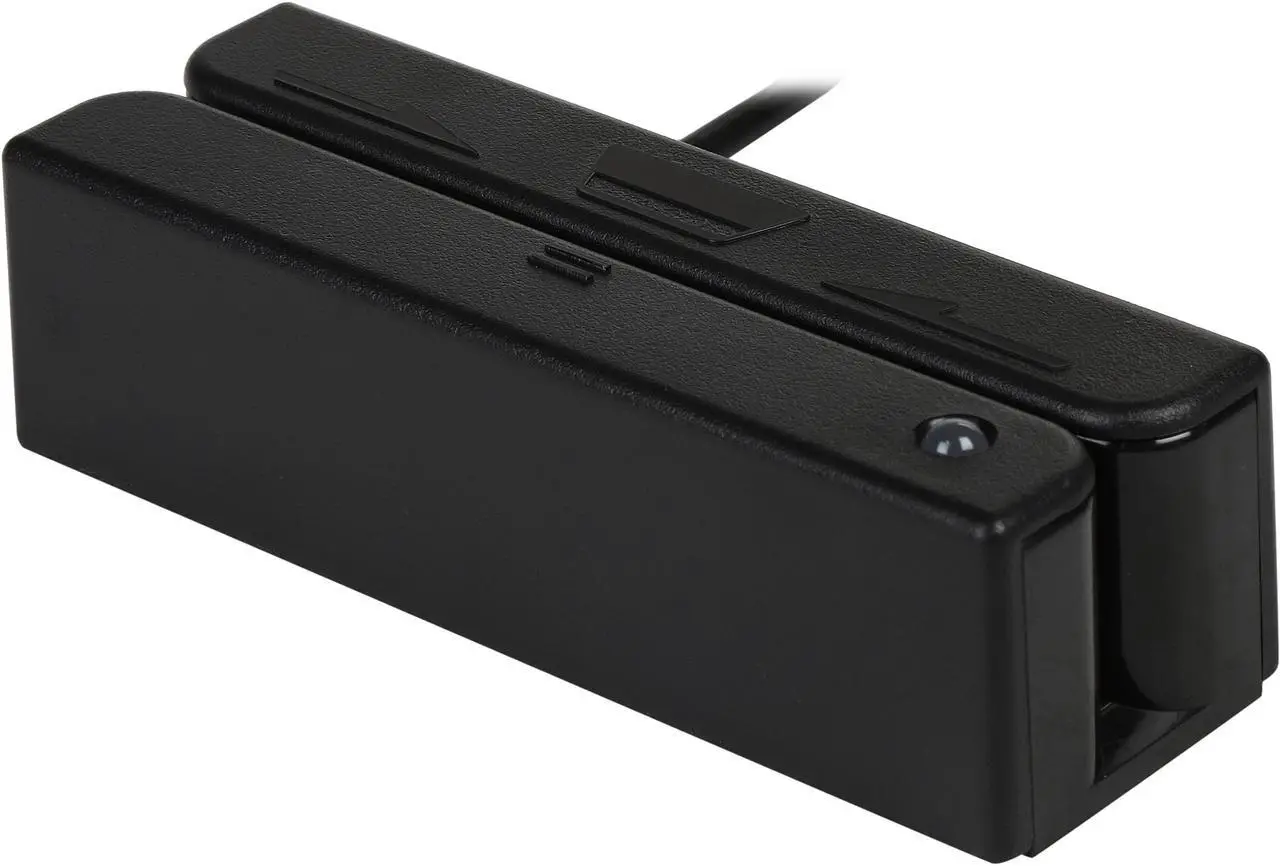

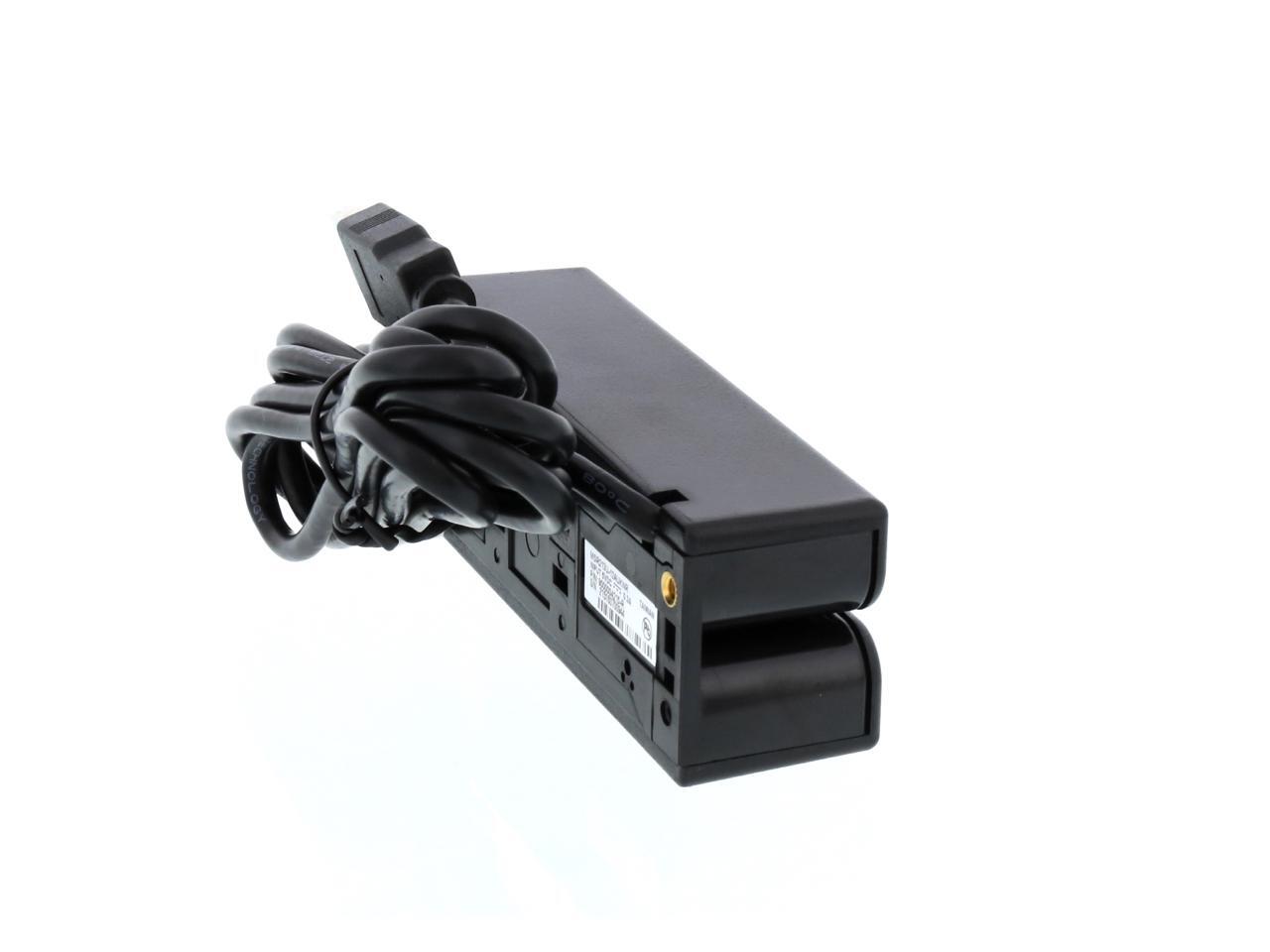

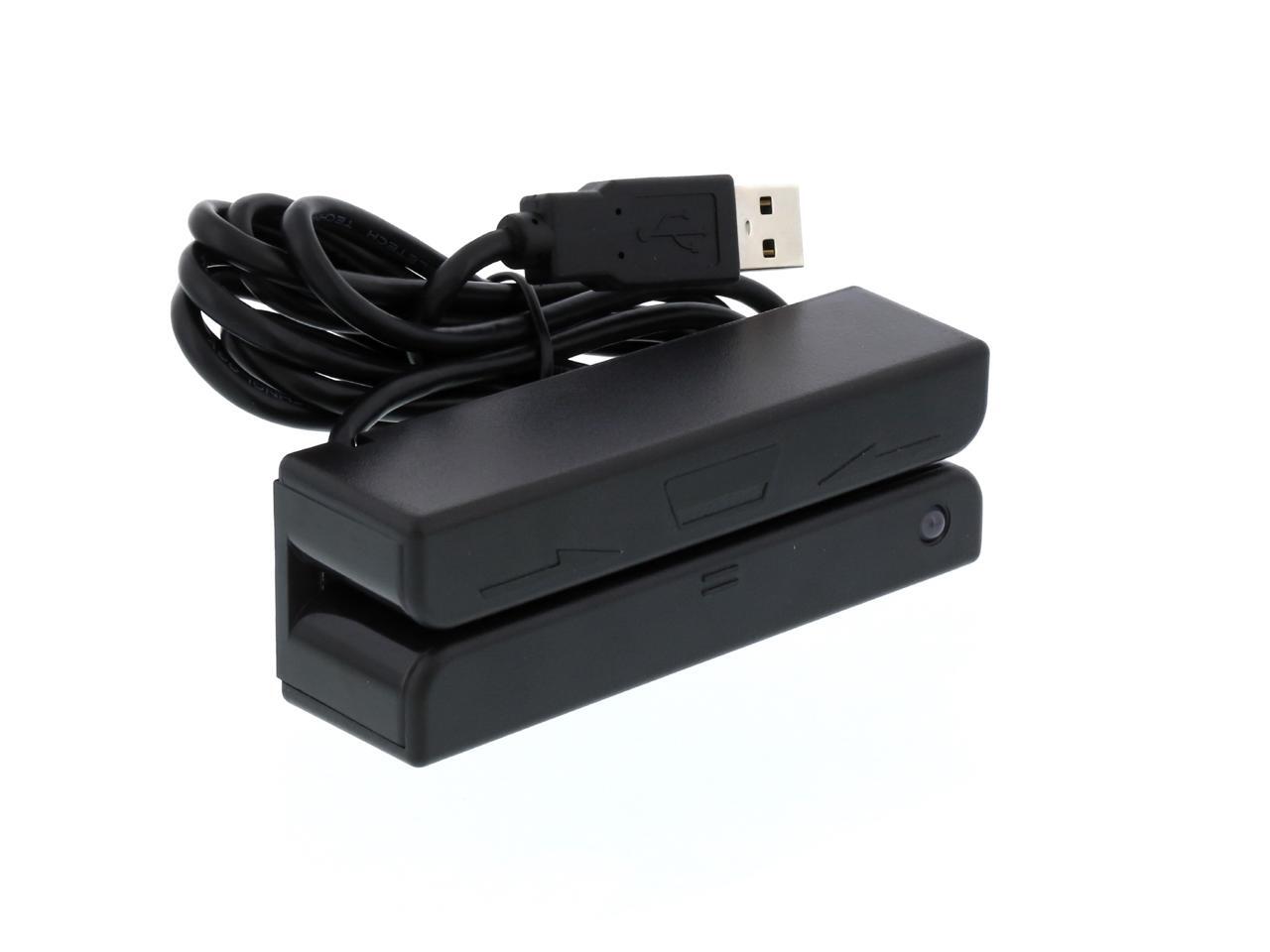

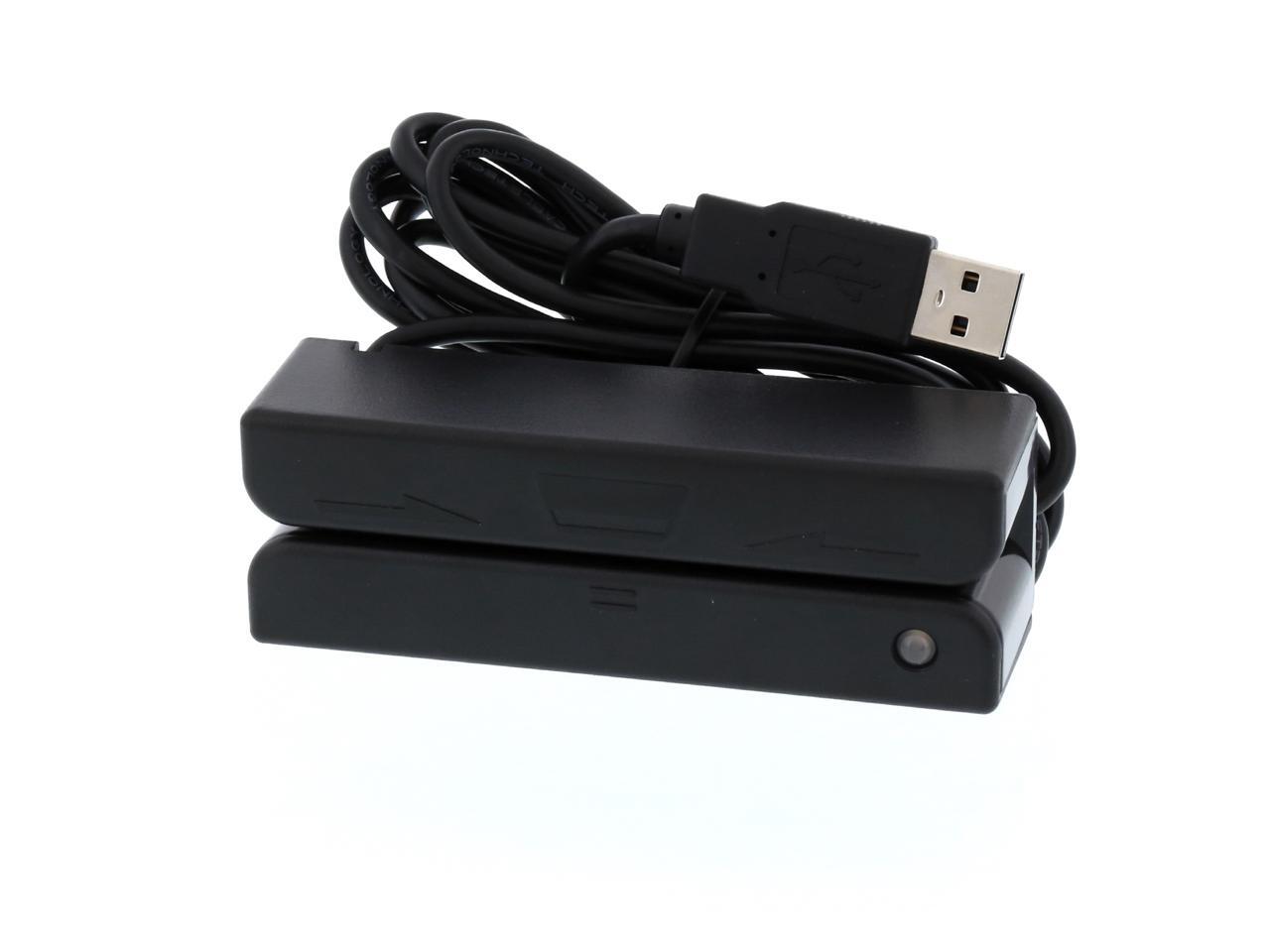

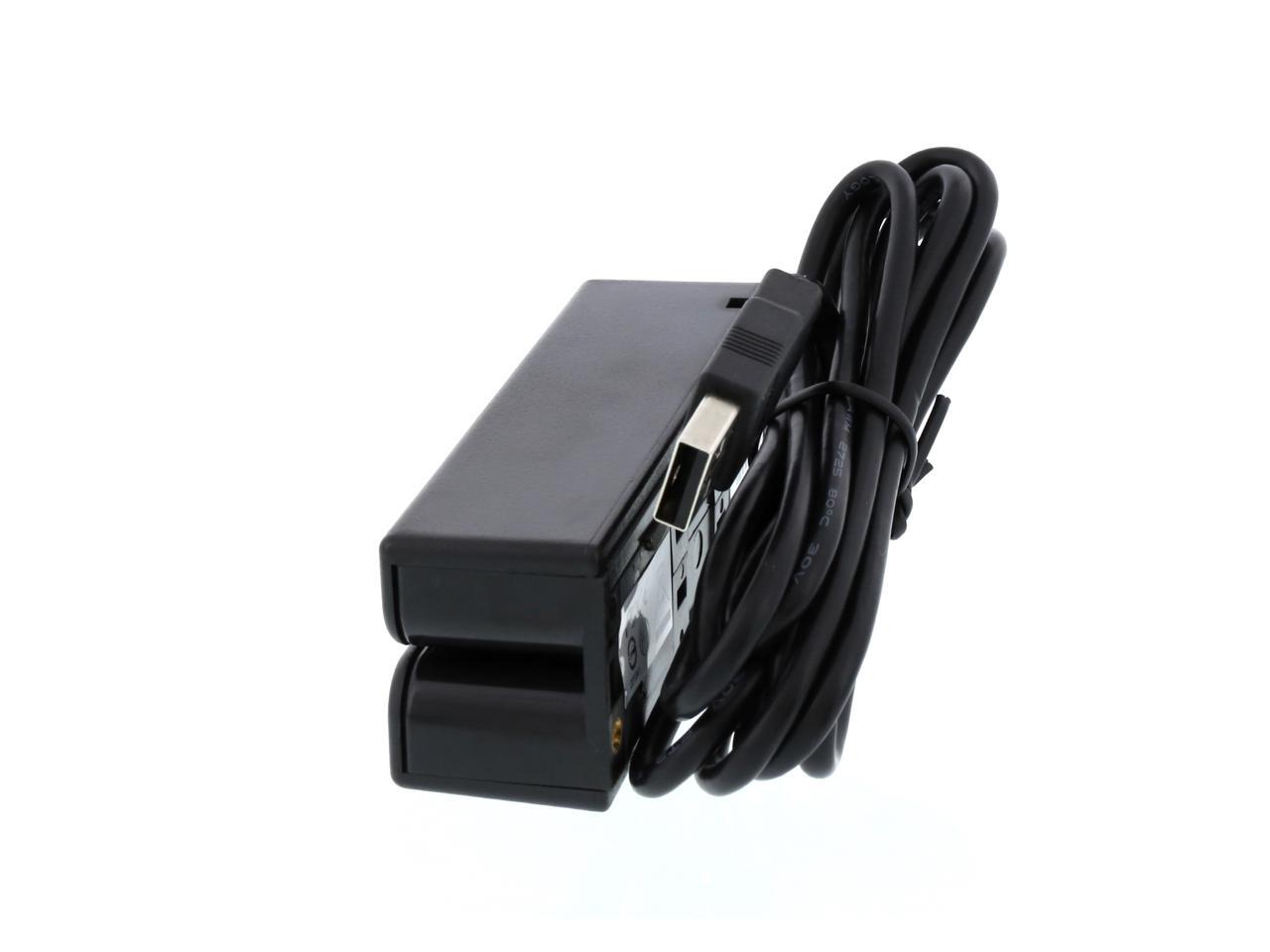

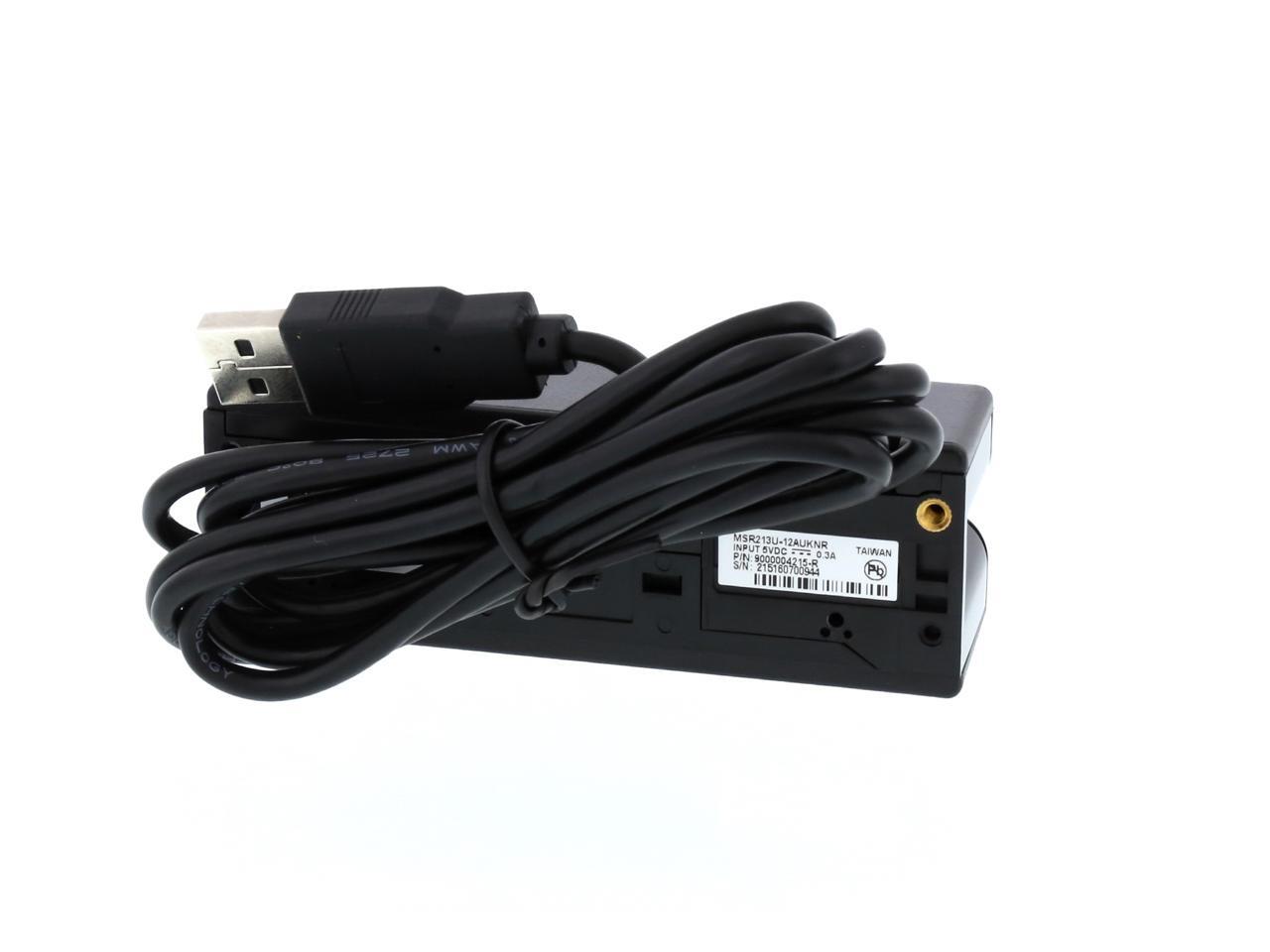

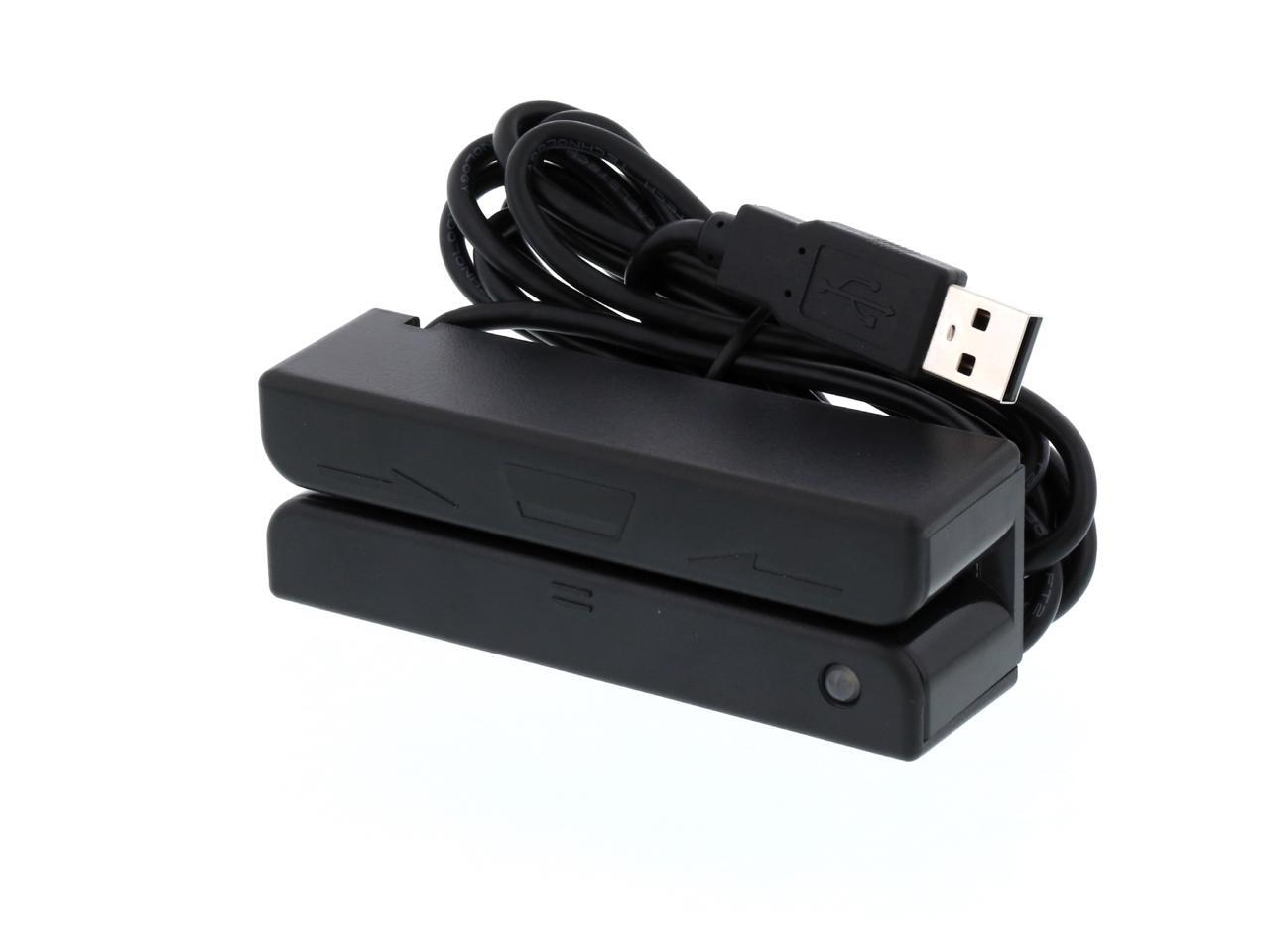

Uniform Industrial Corporation MSR213U 12AUKNR Magnetic Card Reader

Be the first to review this product...
  • ISO 7801/7811, AAMVA
  • USB-HID/USB-Keyboard Emulation
  • Track 1 & 2
+
+
Overview
Specs
Reviews

MAIN OVERVIEW FEATURES:

  • Magnetic Stripe Track Configuration: Dual Track
  • Maximum Swipe Speed: 55 in/s
  • Magnetic Stripe Track Number: Track 1,Track 2
  • Bi-directional Reading: Yes
  • USB: Yes
  • Color: Black
  • Height: 1.1"
  • Width: 1.3"
  • Weight (Approximate): 4.23 oz
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS,WEEE
  • Limited Warranty: 1 Year

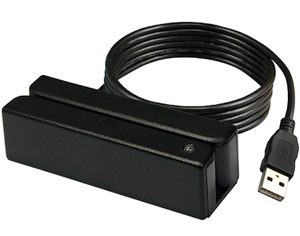

UIC
MSR213U

USB Magnetic Stripe Reader

The MSR213U USB magnetic stripe reader is ideal for retail, time keeping, security and other card reader related systems. The triple tracks of the MSR213U are uniquely designed to read credit/debit/loyalty cards and driver licenses.

The MSR213U communicates with a host computer via USB interface and reads and converts magnetic stripe data to USB Human Interface Device (HID) USB keyboard interface. It is a Manual swipe, bi-directional and reads high and low coercivity magnetic stripes (300 - 4000 Oe). It has built-in capability for firmware download and LED and beeper for reading status.

The MSR213U is very reliable, and it is capable of more than a million bi-directional swipes. It fully conforms to the FCC Class B, CE Class B, RoHS.

Overview

Features & Benefits

MSR213U communicates with a host computer using USB interface. The reader can read magnetic data from available track encoded per ISO 7810/7811, AAMVA and DMV.

  • Read and convert magnetic stripe data to USB or USB HID/USB keyboard interface
  • Firmware downloadable
  • Read magnetic stripe cards conform to ISO 7811, AAMVA and custom data formats
  • Manual swipe, bi-directional with USB interface output
  • Read high and low coercivity magnetic stripes (300- 4000 Oe)
  • 15KV air ESD protection
  • Reliable for over 1M swipes
  • LED and beeper for reading status

Specifications

ELECTRICAL

  • Power Requirement: +5VDC±10% from USB Port
  • Power Consumption: 35mA Max. in normal condition
  • Interface: USB HID or USB keyboard emulation interface, Andriod support

MECHANICAL

  • Body Material: ABS 94V-0
  • Dimensions: 3.94”(100 mm) L x 1.34”(34 mm) W x 1.10”(28 mm) H
  • Weight: Approx. 4.2 ounces (120 g)
  • Connector: USB Type A Plug
  • Card Handling Method: Manual swipe, bi-directional

ENVIRONMENTAL

  • Operating Temperature: 14°F to 122°F (-10°C to +50°C)
  • Storage Temperature: -22°F to 158°F (-30°C to +70°C)
  • Operating Humidity: 10% to 90%
  • Storage Humidity: 10% to 90%

AGENCY APPROVAL

  • FCC Class B, CE Class B, European RoHS

PERFORMANCE

  • Read Card Format

    • Track 1: Bit Density 210 bpi
    • Track 2: Bit Density 75 bpi
    • Track 3: Bit Density 210 bpi
  • Card Types: Magnetic cards as per ISO7810, 7811, AAMVA
  • Read Capability: Magnetic stripe - dual or triple track of low/high coercivity (300~4000 Oe)
  • Test Card Types
    • Standard card: Read Speed 5~55 ips
    • Jitter±15%: Read Speed 5~50 ips
    • Amp.60%: Read Speed 5~50 ips
  • Card Thickness: 0.76 ±0.08mm
  • Error rate: <0.5%
  • Magnetic Head Life: 1 M Swipes
