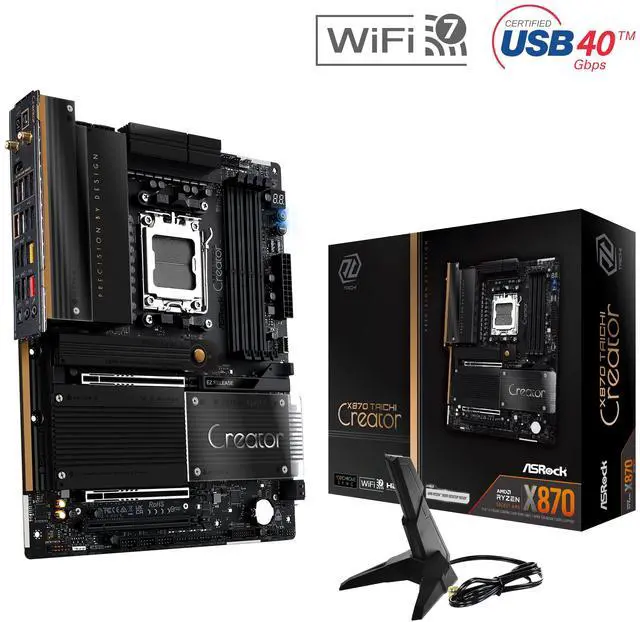

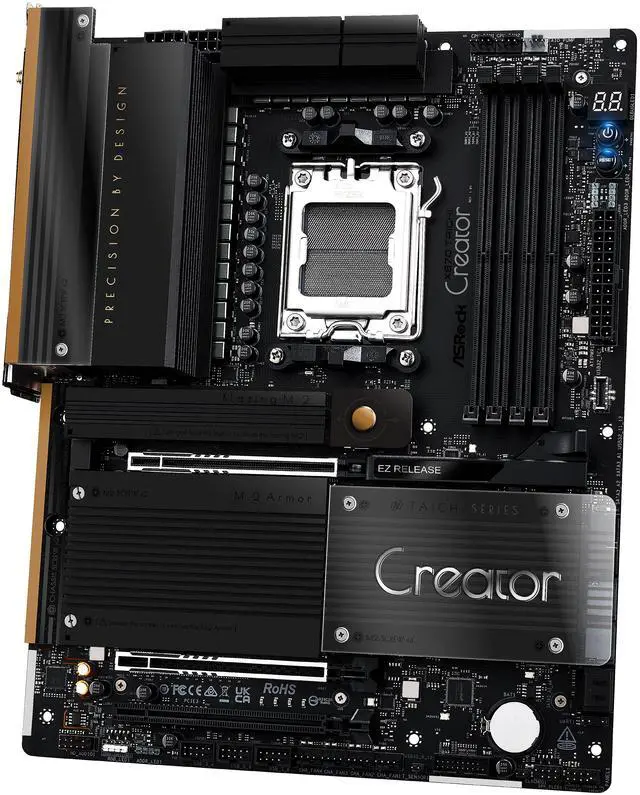

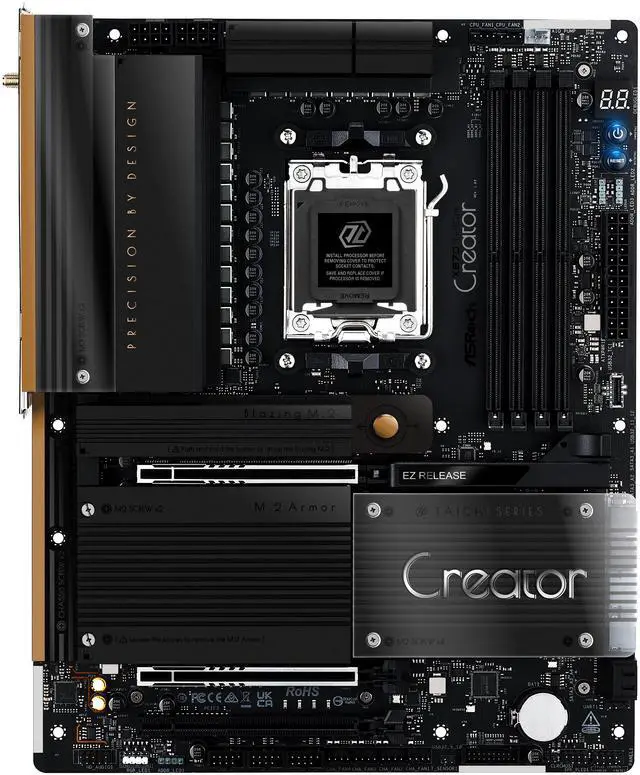

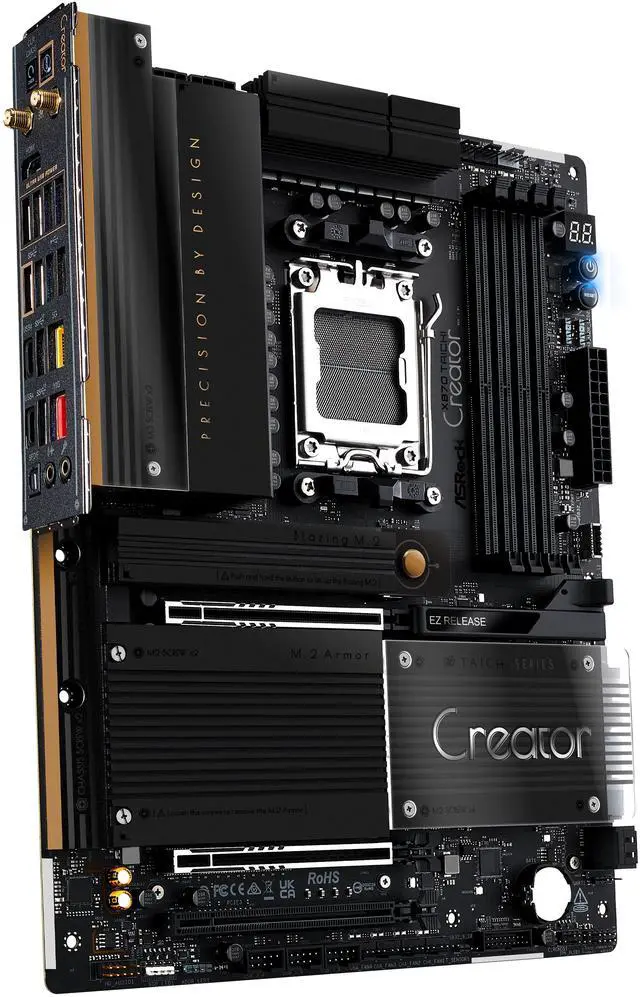

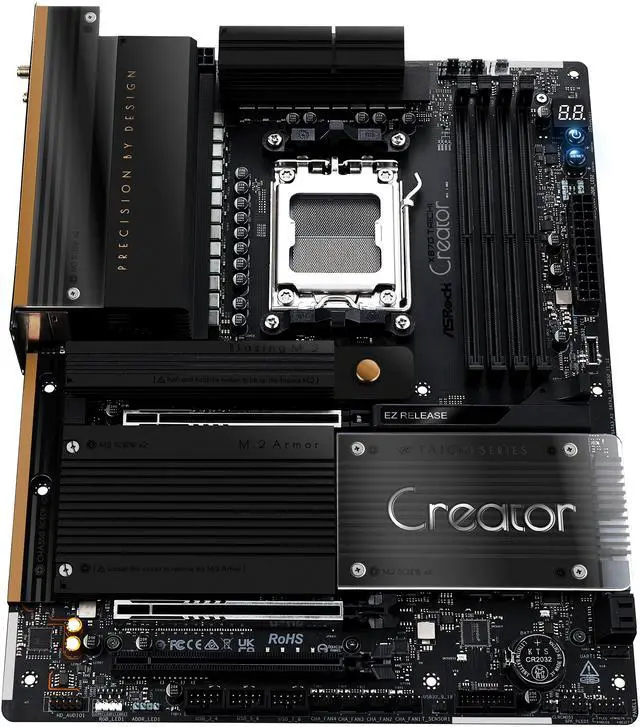

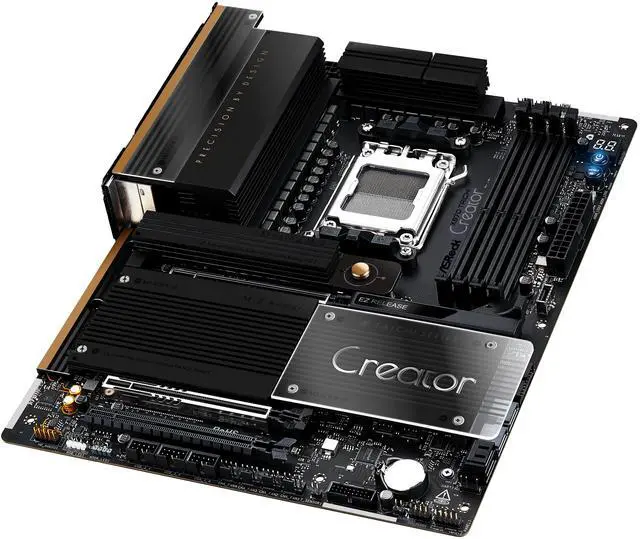

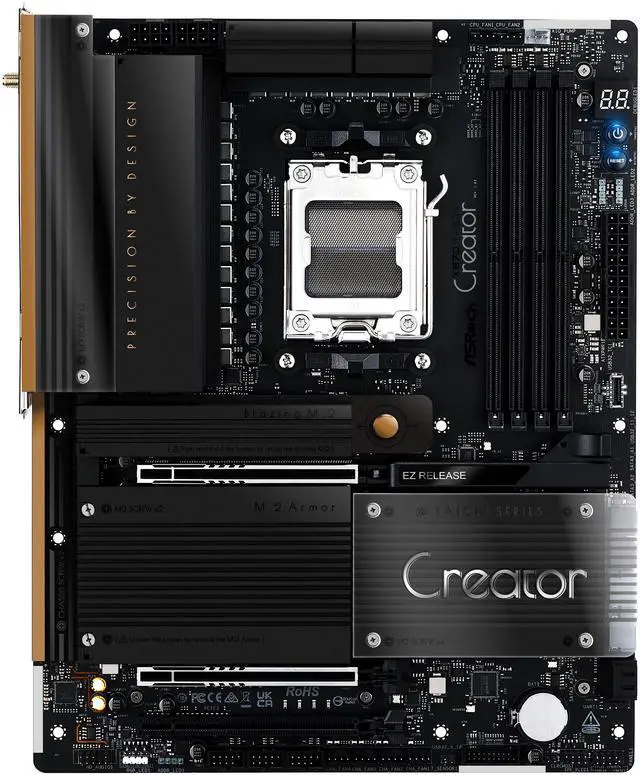

ASRock X870 TAICHI CREATOR AM5 AMD X870 ATX Motherboard
- Supports AMD AM5 Socket Ryzen 9000, 8000 and 7000 Series Processors
- 18+2+1 Power Phase, 80A SPS for VCore+SOC
- 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC)
- 2 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 2 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3x4)
- 4 SATA3, 2 USB4 Type-C (Rear), 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 8 USB 2.0 (2 Rear, 6 Front)
- 10Gbps LAN, 5Gbps LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink
+
+
Specs
Reviews
Learn more about the ASRock X870 TAICHI CREATOR
| Brand | ASRock |
|---|---|
| Model | X870 TAICHI CREATOR |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Up to DDR5 8000+ (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * If M2_4 is occupied, both PCIE3 and M2_4 will downgrade to x2 mode. * Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* * Supports NVMe SSD as boot disks * M2_1 is the first priority for M.2 installation. * M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. * M2_2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2_2 will be unavailable with 8000 (Phoenix 2) series processors. * If M2_2 is occupied, both rear USB4 Type-C Ports and M2_2 will downgrade to x2 mode. You can switch M2_2 to x4 mode in BIOS setting, but doing so will disable USB4_TC1 and USB4_TC2. * If M2_4 is occupied, both PCIE3 and M2_4 will downgrade to x2 mode. |
| SATA RAID | Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Audio Chipset | Realtek ALC4082 |
|---|---|
| Audio Channels | 7.1 CH HD Audio with Content Protection |
| LAN Chipset | Marvell (Aquantia) AQC113 |
|---|---|
| Second LAN Chipset | Realtek RTL8126 |
| Max LAN Speed | 10Gbps + 5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

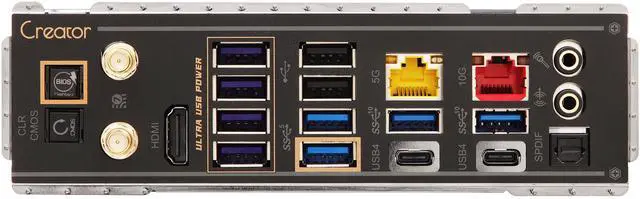

| Back I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 2 x USB 3.2 Gen 2 Type-A Ports (10 Gb/s) 6 x USB 3.2 Gen 1 Type-A Ports (USB32_1234 supports Ultra USB Power.) 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging * USB4 controller(for USB4_TC1 and USB4_TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors. |
|---|
| Onboard USB | 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)**** **** Supports USB PD 3.0 up to 12V@3A (36W) charging |
|---|---|
| Other Connectors | 1 x Thermistor Cable Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). *** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). *** CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) |
| BIOS Feature | 512Mb AMI UEFI Legal BIOS with GUI support |
|---|---|
| Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Features | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 18+2+1 Power Phase, 80A SPS for Vcore+SOC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Connectivity - Marvell (Aquantia) 10GbE LAN, 5G LAN, 802.11be Wi-Fi 7 Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
|---|

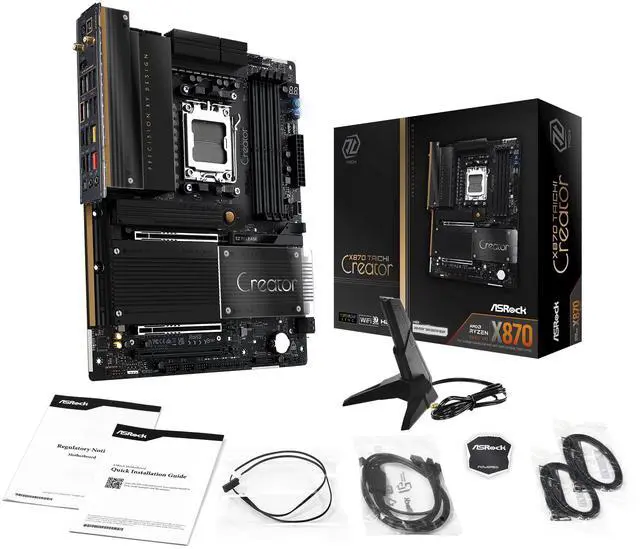

| Package Contents | 4 x SATA Data Cables 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 1 x Thermistor Cable |
|---|
| First Listed on Newegg | September 22, 2025 |
|---|
