Top Rated- 2,628.93SR
- + 272.28SR Shipping
ASUS NUC 15 Pro RNUC15CRKU50000U Black Barebone System w/ Intel Ultra 5 225H CPU, Integrated - Intel Arc 130T Graphics ,US cord, Single Unit - Memory and Storage Sold Separately
- Dimensions : Net product 4.61" x 4.41" x 1.45" inches
- Weight: Net product 0.79 lbs
- Volume : 0.48 L
- Intel Core Ultra 5 225H
- 2 x 262Pin SO-DIMM SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
- Integrated Intel Arc 130T Graphics
- M.2 2280 PCIe 5.0 | M.2 2242 PCIe 4.0
- 2.5G Ethernet Port
- Wi-Fi 7 (802.11be) | Bluetooth 5.4
- Thunderbolt 4 | USB 3.2 Gen 2 & 2.2
- HDMI 2.1 | USB 2.0
- Includes US Power Cord & VESA Bracket
+
+
Specs
Reviews
Learn more about the ASUS RNUC15CRKU50000U
| Brand | ASUS |
|---|---|
| Series | NUC 15 Pro |
| Model | RNUC15CRKU50000U |
| Part Number | 90AR00R2-M001N0 |
| Color | Black |
| Form Factor | Slim |
| AI Features | Processor Essentials *Processor Number 225H *Overall Peak TOPS (Int8) 83 CPU Specifications Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes *AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN GPU Sepcifications: *Name : Intel® Arc™ 130T GPU *Graphics Max Dynamic Frequency : 2.2GHz *GPU Peak TOPS (Int8) 63 *Ray Tracing Yes *AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU NPU Specifications: *NPU Name: Intel® AI Boost *NPU Peak TOPS (Int8) 13 *Sparsity Support Yes *AI Software Frameworks Supported by NPU :OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN |
| CPU Type | Intel Core Ultra 5 225H |
|---|---|
| CPU Socket | FCBGA2049 |
| CPU Cores | Total Cores 14 # of Performance-cores 4 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 14 *Max Turbo Frequency 4.9 GHz *Performance-core Max Turbo Frequency 4.9 GHz *Efficient-core Max Turbo Frequency 4.3 GHz *Low Power Efficient-core Max Turbo Frequency 2.5 GHz *Performance-core Base Frequency 1.7 GHz *Efficient-core Base Frequency 1.3 GHz *Low Power Efficient-core Base Frequency 700 MHz *Cache 18 MB *Processor Base Power 28 W *Maximum Turbo Power 115 W *Minimum Assured Power 20 W |
| Memory installed | No Memory |
|---|---|
| Memory slot | 2 x 262Pin SO-DIMM |
| Memory Type Supported | SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz |
| Max Memory Supported | 96GB |
| Hard Drive Installed | No Hard Drive |
|---|---|
| M.2 | 1 x M.2 2280 PCIe Gen4x4 NVMe SSD* (empty) 1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty) *PCIe Gen 5 ready |
| Intergrated Graphics | GPU Name Intel® Arc™ 130T GPU Graphics Max Dynamic Frequency 2.2 GHz GPU Peak TOPS (Int8) 63 Graphics Output DP2.1 UHBR20, HDMI2.1, eDP1.4b Xe-cores 7 Ray Tracing Yes DirectX* Support 12.2 OpenGL* Support 4.6 OpenCL* Support 3.0 Multi-Format Codec Engines 2 H.264 Hardware Encode/Decode Yes H.265 (HEVC) Hardware Encode/Decode Yes AV1 Encode/Decode Yes VP9 Bitstream & Decoding Yes Intel® Quick Sync Video Yes # of Displays Supported 4 |
|---|
| LAN | Intel i226V |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | 802.11be |
| WiFi Generation | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |

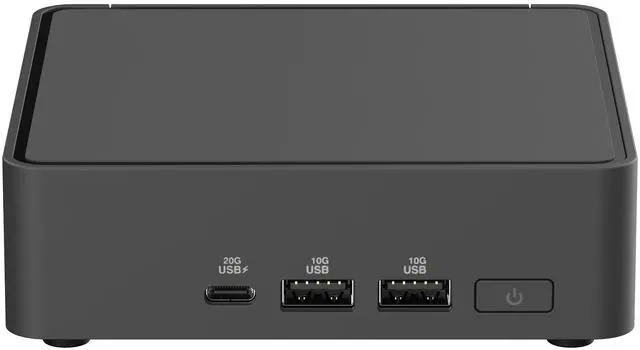

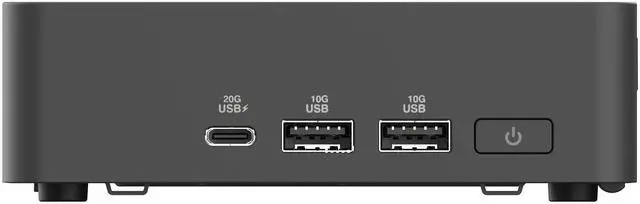

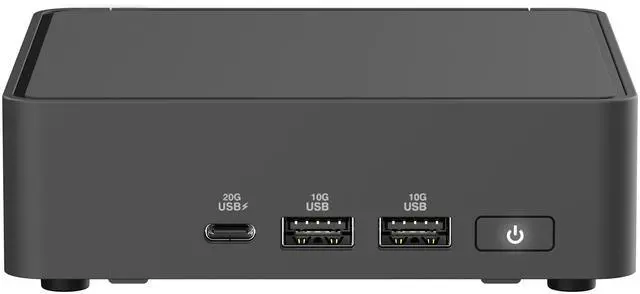

| Front USB | 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 3.2 Gen 2 Type-A |
|---|
| HDMI | 2 x HDMI 2.1 (up to 4K@60Hz) |
|---|---|
| Thunderbolt | 2 x Thunderbolt 4 (with DisplayPort 2.1) |

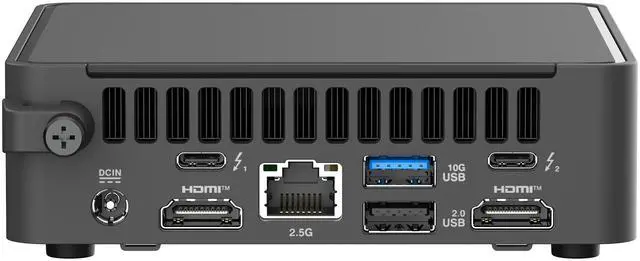

| Rear USB | 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps) |
| RJ45 | 1x RJ45 (2.5Gb Ethernet) |
| Power Supply | 120W |
|---|
| Dimensions | 4.61" x 4.41" x 1.45" |
|---|---|
| Weight | 0.79 lb. |
| Features | Onboard Processor Features Intel® Core™ Ultra 5 Processor 225H (18M Cache, up to 4.90 GHz) Overall Peak TOPS (Int8): 83 CPU Specifications Total Cores 14 # of Performance-cores 4 # of Efficient-cores 8 # of Low Power Efficient-cores 2 Total Threads 14 Cache 18 MB Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes *AI Software Frameworks Supported by CPU OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN *CPU Lithography TSMC N3B GPU Sepcifications: *Name : Intel® Arc™ 130T GPU *Graphics Max Dynamic Frequency : 2.2GHz *GPU Peak TOPS (Int8) 63 *Ray Tracing Yes *AI Software Frameworks Supported by GPU OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU DirectX* Support 12.2 OpenGL* Support 4.6 OpenCL* Support 3.0 Multi-Format Codec Engines 2 H.264 Hardware Encode/Decode Yes H.265 (HEVC) Hardware Encode/Decode Yes AV1 Encode/Decode Yes VP9 Bitstream & Decoding Yes Intel® Quick Sync Video Yes # of Displays Supported 4 NPU Specifications: *NPU Name: Intel® AI Boost *NPU Peak TOPS (Int8) 13 *Sparsity Support Yes *AI Software Frameworks Supported by NPU :OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN Security & Reliability Intel® Virtualization Technology (VT-x) Yes Intel® Virtualization Technology for Directed I/O (VT-d) Yes Intel® VT-x with Extended Page Tables (EPT) Yes |
|---|
| Packaging | VESA Mount & Screws / AC Power Adapter/ Power Cord |
|---|
| Date First Available | July 08, 2025 |
|---|
