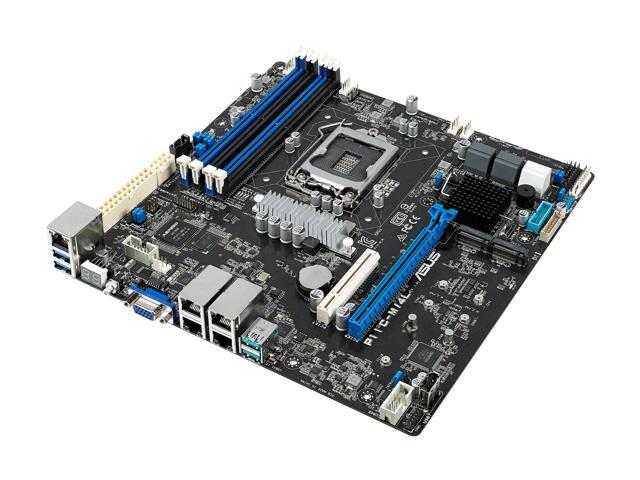

ASUS P11C-M/4L uATX Server Motherboard LGA 1151 Intel C242

(7) Write a Review
  • LGA 1151
  • Intel C242
Specs
Reviews (7)

Learn more about the ASUS P11C-M/4L

Model
Brand ASUS
Model P11C-M/4L
Supported CPU
CPU Socket Type LGA 1151
CPU Type Intel Xeon processor E-2100 family
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors
Chipsets
North Bridge Intel C242
Memory
DDR4 Standard DDR4 2666 / 2400 UDIMM non ECC and with ECC
Maximum Memory Supported 64GB
Expansion Slots
PCI Express x16 Slot Location 6: PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied
PCI Express x8 Slot Location 7: PCI-E x8 (Gen3 X8 Link)
Storage Devices
SATA Intel C242 Chipset
6 x SATA3 6Gb/s ports
1 x M.2 connector (2242)
SATA RAID Intel Rapid Storage Technology Enterprise (RSTe) (For Linux / Windows) (Support Software RAID 0, 1, 5, 10 )
SAS SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card (Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card (Optional)
Onboard Video
Onboard Video Chipset Aspeed AST2500 with 32MB VRAM
Onboard LAN
Number of LAN 4 x Intel I210AT + 1 x Mgmt LAN
LAN Chipset Intel I210-AT
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel I210-AT
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 4 x 1Gbps

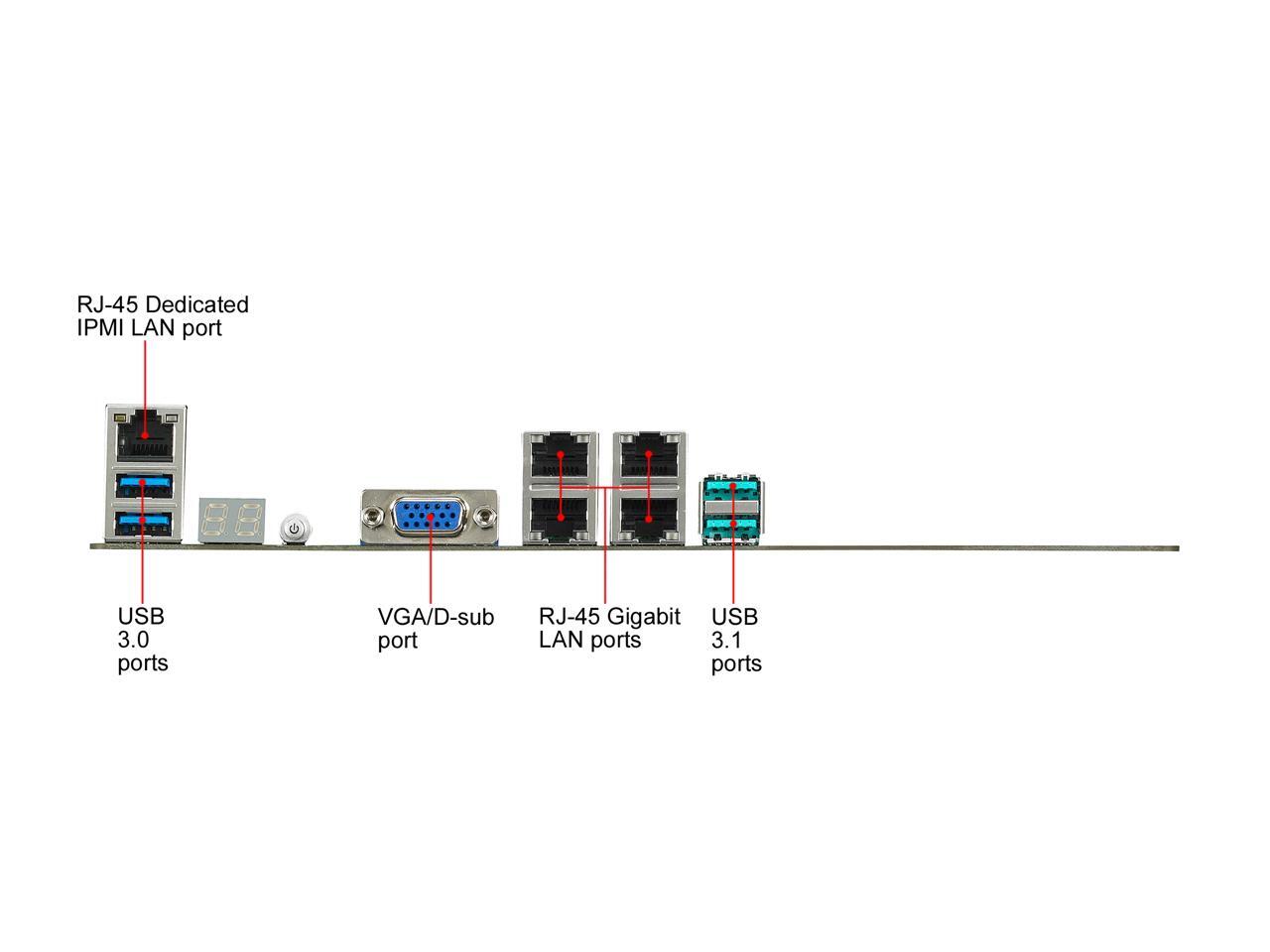

Rear Panel Ports
Video Ports 1 x VGA Port
RJ45 4 x GbE LAN + 1 x Mgmt LAN
USB 3.1 2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
Features
Features Powered by the Intel Xeon E platform

95W CPU and up to 64GB memory support (4 DIMMs)

Rack-optimized design maximizes cooling for excellent thermal efficiency

Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots

Quad Intel I210AT Gigabit Ethernet with teaming support

Dual M.2 for up to 32 Gbps performance and data redundancy

TPM-M 2.0 support for enhanced platform integrity

Complete server management with ASUS Control Center

Optional ASMB9-iKVM module available for 24/7 remote monitoring and diagnostics
Dimensions
Form Factor uATX
Dimensions (W x L) 9.6" x 9.6"
