will this work for a gaming pc?

The ASUS PRO Q570M-C/CSM LGA 1200 Micro ATX Intel Motherboard supports 11th and 10th Gen Intel Core processors, which are suitable for gaming. It also supports DDR4 memory up to 3200 MHz (OC) and has multiple expansion slots including PCI Express 4.0 x16, which is essential for high-performance gaming graphics cards. Additionally, it offers various connectivity options and features, making it a good choice for a gaming PC.

1,094^.79SR

VAT-Inclusive Price

Limit 1 per customer.

Ships from Canada.

Most customers receive within 4-17 days.

Add to wish list

Sold by BTE Outlet

3.5 (1,429 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 2 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 3 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 4 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 5 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 6 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 7 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 8 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Alt view image 9 of 9 - ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

Shop All ASUS Products | Visit BTE Outlet Store

ASUS Pro Q570M-C/CSM LGA1200 (Intel 10th & 11th Gen) mATX Commercial Motherboard (PCIe 4.0, 1 LAN, Front Panel USB 3.2 Gen 1 Type-C, Intel vPro, 2 x DisplayPorts, TPM 2.0 IC Onboard, COM Debug Header, ASUS-exclusive Self-recovering BIOS)

(2) Write a Review

Intel Q570
Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133

Overview

Specs

Reviews (2)

Model
Brand	ASUS
Model	PRO Q570M-C/CSM

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core Processors Supports Intel Pentium Gold and Celeron Processors * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Q570

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133* * 11th Gen Intel processors support 2933 / 2800 / 2666 / 2400 / 2133 natively. * 10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express x1	2 x PCIe 3.0 x1
Other Slots	M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Intel 11th & 10th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Q570 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. * RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. * To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Intel Optane Ready	Yes

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
LAN Chipset	Intel I219-LM
Max LAN Speed	1Gbps

Rear Panel Ports

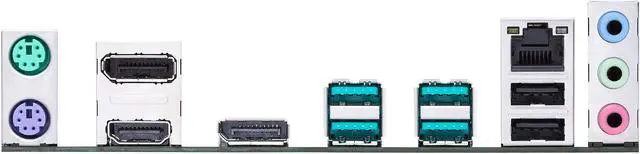

Back I/O Ports	4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI 3 x Audio jacks 1 x Intel I219-LM 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header (with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 System Panel header

Physical Spec
Form Factor	Micro ATX

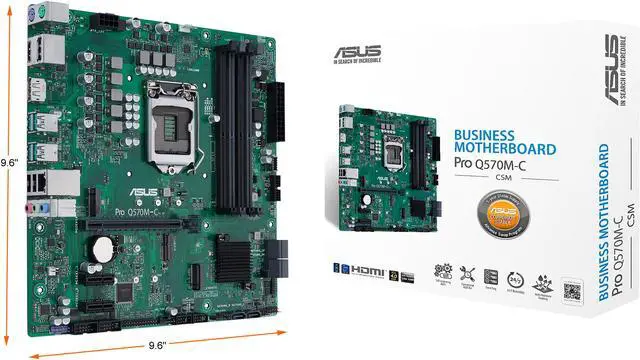

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Features
Features	Special Features: ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM 2.0 IC onboard Software Features: ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE) BIOS: 128+64 MB Flash ROM Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit

Packaging

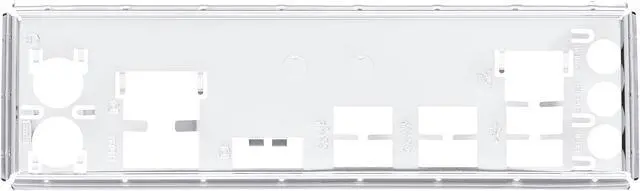

Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual

Additional Information
First Listed on Newegg	June 18, 2021
