#Please refer to the official website for detailed specifications#
#The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#
Can present 100% DCI-P3 film wide color gamut, the highest level in the film industry, HDR-Pro high dynamic range image, up to 240 Hz refresh rate, 4ms low input lag, equipped with two 5W stereo speakers, and supports eARC 7.1 CH Dolby Atmos sound The postback function will bring a movie-like presence and the most immersive gaming experience.
projection system
DLP
show
Brightness (ANSI lumens)
3000
native resolution
4K UHD (3840×2160)
default aspect ratio
16:9
Contrast (FOFO)
(dimmable with light source), 500, 000:1
display color
30 bits ( 1.07 billion colors)
light source
4 LEDs
Light source life
a. Normal 20000 hours, b. Energy saving 30000 hours, c. SmartEco 20000 hours
optics
throw ratio
1.15 ~ 1.50
zoom ratio
1.3 x
lens
F/# = 1.8 - 2.25 mm, f = 17.02 - 22.21 mm
vertical distance (full height)
110%
keystone correction
2D, (auto) ± 30 degrees vertical; ± 30 degrees horizontal
DCI-P3 color gamut range
100%
Rec. 709 color gamut range
98%
picture mode
3D, bright, theater, games, HDR gaming, HDR10, HLG, living room, motion, user
compatibility

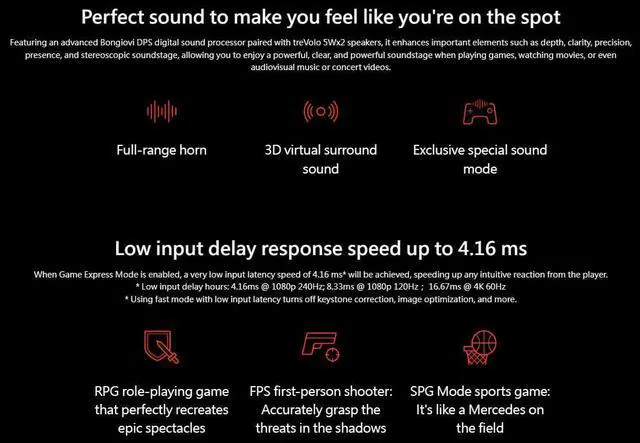

input delay
16.7 ms (1080p@60Hz), 16.7 ms (4K@60Hz), 4.2 ms (1080p@240Hz), 8.3 ms (1080p@120Hz)
Support resolution
VGA (640 x 480) to 4K UHD (3840 x 2160)
horizontal frequency
15K~135KHz
vertical scan rate
23~240Hz

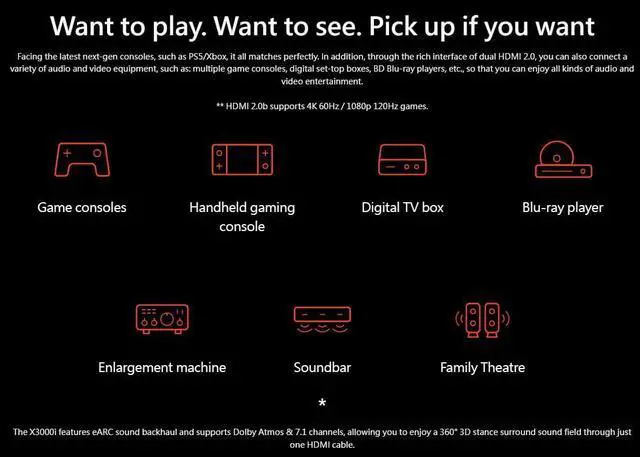

I/O port
HDMI input
(x3), HDMI-1 ( 2.0 b/HDCP 2.2 ), HDMI-2 ( 2.0 b/HDCP 2.2 ), HDMI-Internal ( 2.0 b/HDCP 2.2 )
USB Type A
(x1), USB Type A-1 ( 2.0 /Power 2.5A /Service)
RS232 input (DB-9 pin)
(x1)
DC 12V trigger ( 3.5 mm jack)
(x1)
audio
trumpet
(x2), 5W box type
Audio out ( 3.5 mm mini jack)
(x1)
HDMI Audio Return Channel
Yes, eARC, Dolby Atmos
Audio out (S/PDIF)
multi-channel, RAW
Ambient temperature
0~40
power supply
AC 100 to 240 VAC, 50/60 Hz
General power consumption (110V)
330W
Standby power consumption
<0.5 watts
Noise value (general/energy-saving) decibels
32/28 dBA
Accessories
Android TV stick
(Standard), QS01
Remote control with batteries
RCI068
power cable
x1 ( 1.8 m)
manual CD
1 (27L)
Quick Start Guide
(x1) 21L
Guarantee
yes
Smart system
Built-in OS
Yes, Android 10.0
Bluetooth
Yes, Bluetooth 4.2
Wi-Fi wireless standard
802.11 a/b/g/n/ac ( 2.4G /5G)
wireless projection
Google Cast
size and weight
Dimensions (WxHxD) (mm)
272 x 197 x 259mm (w/o Adjustment Feet)
Net weight (kg)
6.4 kg
Dimensions (WxHxD) (inches)
10.7 x 7.8 x 10.2 inches (w/o Adjustment Feet)
Net weight (lbs)
14.1 lbs
