Features

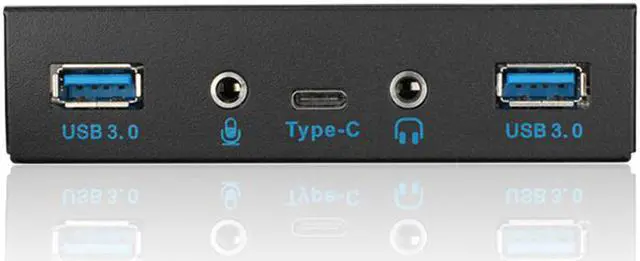

- 3.5 -inch Front Bay to 3-Port USB Panel Hub and 1 HD Audio Port/1 Microphone Port
- turns any available 3.5 -inch computer case front bay into one newest USB 3.1 Type-C and 2 x USB 3.0 Ports.

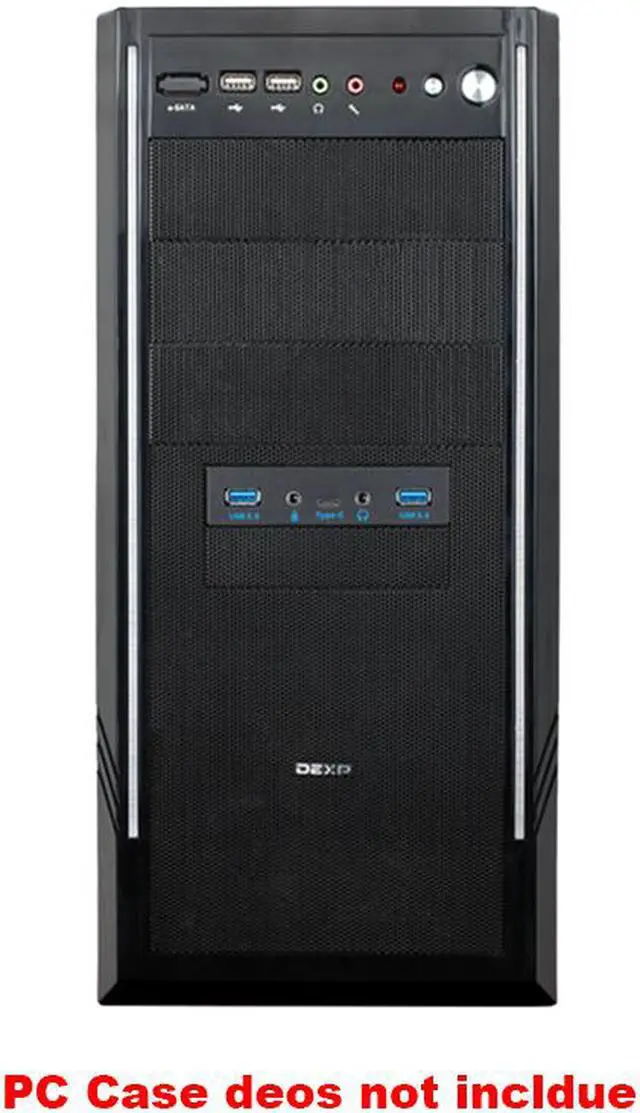

- This front panel hub extend three easily accessible USB ports to the front of your computer case through a 3.5 -inch bay, or through a 5.25 -inch bay using the optional front bay bracket adapter accessory.
- Added USB Type-C port compliant with the USB 3.1 Gen 1 standard which supports up to 5Gbps of bandwidth
- Added USB 3.0 ports are compliant with the USB 3.0 standard which supports up to 5Gbps of bandwidth and up to 900mA of power.
- HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing
- Installation is quick and easy, and the unit is plug and play.

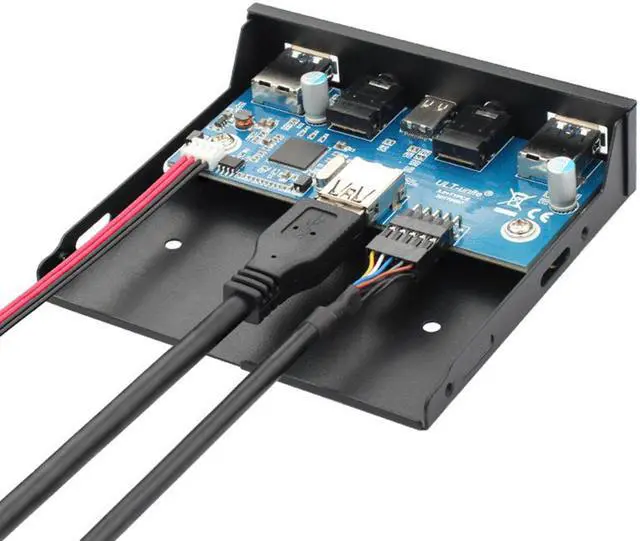

- Simply fit the bay into the space with the screws provided, plug the bay into the USB 20pin connectors on the motherboard, and you're all set.
- 3.5 Inch Front panel
- Built in USB 3.0 Hub Chipset
- 2x USB-A output
- 1x USB-C Output
- 1x 3.5mm Stereo Audio Output
- 1x 3.5mm Microphone input
- 3x USB 3.0 Ports
- Compatible with USB 3.0 Spec
- 5Gbps Data Transfer Speed
- Backwards Compatible with USB 2.0/1.1
- USB 3.0 20pin motherboard header is needed
- HD Audio 10pin motherboard header is needed
Specification
| Type | 3.5" USB-C Front Panle |
|---|---|
| Output - A | 1x USB Type-C |
| Output - B | 2x USB Type-A |
| Output - C | 3.5mm Stereo Audio |
| Input | 3.5mm Microphone |
| USB Data Transfer Rate | Up to 5Gb/s max. |
| OS Requirement | Compatible with Windows XP/Vista/7/8/ 8.1,Lunux, MAC OS |
| Installation | 3.5" Open Bay Space |
| Cable Length | 2 Feet |
| Acc. Contents | 4x Screws |
