ETCR1520 Wireless Phase Detector For Ring Main Unit 45.0Hz~65.0Hz 5V~600V

ETCR1520 Wireless Phase Detector For Ring Main Unit 45.0Hz~65.0Hz 5V~600V
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
1. Apply for ring main unit phase detecting of power distribution system,and phase, frequency, phase sequence test.
2. Phase detecting voltage :5V~600V
3. Phase detecting distance : 30m
4. Phase detecting distance : 0°~360°
5. Frequency Range : 45.0Hz~65.0Hz
6. Data Storage :200 groups

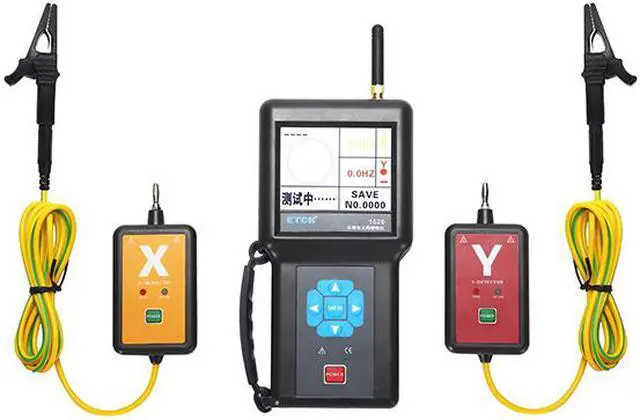

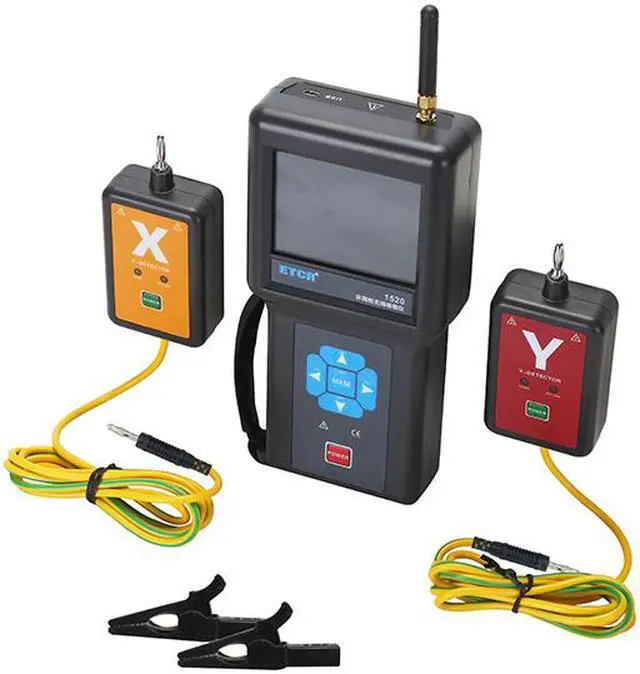

ETCR1520 Wireless Phase Detector For Ring Main Unit  apply for ring main unit phase detecting of power distribution system,and phase, frequency, phase sequence test. Adopt wireless transmission technology, phase detecting distance 30 meters, phase detecting accurately and operation convenient. Voice prompt: "X signal normal, Y signal normal, same phase, out phase".  Adopt 3.5 inch LCD color screen, which can display the phase, frequency, phase sequence, and phase detecting results on the same screen. The dynamic vector diagram indication, clear and obvious.With data storage function, can store 200 groups of data. With USB interface and data upload function., stored data can upload to computer, save and print.
Technical Parameter
Function Description
 Power Supply  Host:DC 9V,alkaline battery LR6 X5PCS;Detector: DC6V, button batteryLR44X4PCS
 Phase Detecting Voltage  5V~600V
 Phase Detecting Distance  30m
 Voice Prompt  "X signal normal, Y signal normal, same phase, out phase".
 Phase Qualitative  Same phase:-20°~20°;Out of phase: 100°~140° and220°~260°
 Phase Range  0°~360°;Accuracy:=±8°;Resolution:1°
 Frequency Range  45.0Hz~65.0Hz;Accuracy:=±2Hz;Resolution:0.1Hz
Transmitting Frequency  433MHz,315MHz
 Phase Indication  Vector diagram and digital display at the same time
 Data Storage  200 groups(Power down or replace the battery will not lose data)
 Automatic Shutdown  5 minutes after boot up, the meter shuts down automatically without any operation
 Battery Voltage  When the battery voltage low symbol  is displayed of the host, remind to replace the battery.  At this time, if the test data is still accurate, please replace the battery of the host.
 The detector "BAT LOW" indicator flashes indicate that the battery power is low, please replace the battery of detector.
 Rated Current  Detector:30mA max;Host:150mAmax
 LCD Size  3.5 inch color screen;Display area:71mm×53mm
 Weight  Host:750g(include battery)
 Instrument Dimension  Host 195mm*100mm*45mm;Detector:120mm×54mm×30mm
 Working Temperature And Humidity  -10?~40?;below80%rh
 Store Temperature And Humidity  -10?~60?;below70%rh
 Protection Level  IP63
 Suitable Safety Standard  It meets the standard of GB13398-92, GB311.1-311.6-8, 3DL408-91, and the national power industry standard requestment (general technical conditions DL/T 971-2017 for 1kV ~ 35kV portable nuclear phase devices for live working).
 Insulation Test  Host, detector :AC3700V/rms(between the exposure metal and plastic shell)

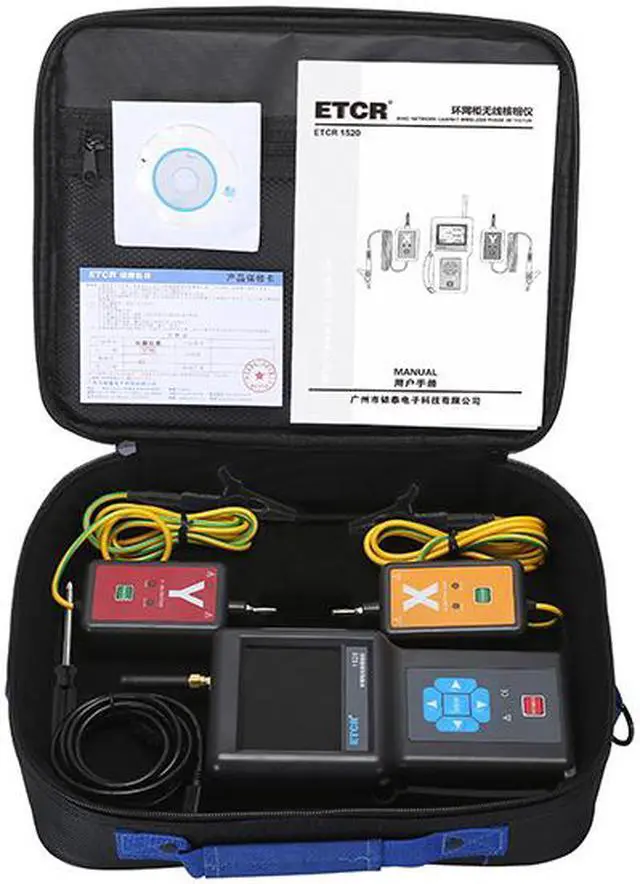

 Accessories  Host: 1PCS, Detector :2PCS, Software CD1COPY,USB Data Cable:1PCS ,Cloth Bag:1PCS, Screwdriver 1PCS(replace battery)
