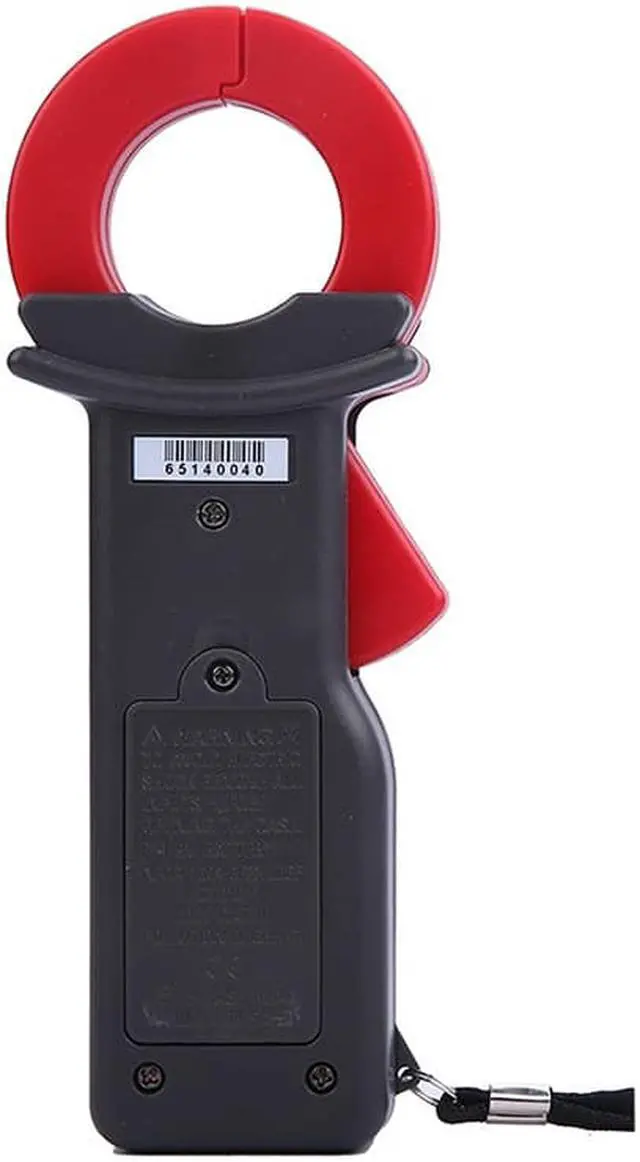

ETCR6500 High Accuracy Clamp Leakage Current Meter

Product Characteristics

1. Measurement of AC current , leakage current, Range:AC 0.00mA~300.0A

2. Data Storage: 99 groups

3. Peak Hold

4. Line Voltage: below 600V

5. CT Size: 35mm x 40mm
ETCR6500 High Accuracy Clamp Leakage Current Meter suitable for measuring AC current and leakage current below 600V, range: 0.00mA~300.0A, CT size: 35mm x 40mm, the iron core adopts magnetic shielding technology, almost unaffected by the external magnetic field, strong anti-interference ability. Especially suitable for high accuracy small current measurement, adopt non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance..

The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on


Model ETCR6500
Range 0.00mA~300.0A
Resolution 10uA
CT Size 35mm×40mm
Meter Size 184×70×37mm
Meter Weight 250g
Function Measurement of AC leakage current, AC current and on-line AC current.
Power Supply Alkaline dry battery 6LR61 9V,continues working 80 hours(Battery not included)
Test Mode Clamp CT, integration method
Display Mode 4digits LCD display
LCD Dimension 35mm×21.5mm;display area:32mm×15mm
Sampling Rate about 2 times/s
Frequency Automatic identification 50Hz/60Hz
Shift Automatically
Accuracy
(23?±3?,
below 70%RH) 0~59A: ±1.5%±5dgt
60A~199A: ±2%±5dgt
200A~300A: ±4%±5dgt
Line Voltage Line measurement below DC 600V
Communication Interface With USB interface, storage data can be uploaded to computer, software monitoring
Data Storage 99units, display FULL symbol indicate storage full
Peak Hold Peak capture and hold function, long press HOLD key and not release can display peak value in measurement.
Data Hold Data hold function: DH symbol display
Overflow display Exceed measure range overflow function: OL symbol display
Auto Shut Down 5 Minutes after power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage While battery voltage decreases to around 7.2V, will display low battery voltage symbol“ ”, and remind to replace the battery
Working Current 5mA
Working Temperature 0? ~ 40?,below 80%rh
Storage Temperature -10? ~60?,below 80%rh
Insulating Strength AC2KV/rms (between the core and outside shell)
Suitable Safety Standard IEC1010-1?IEC1010-2-032?pollution, etc 2?CAT ?(600V)
