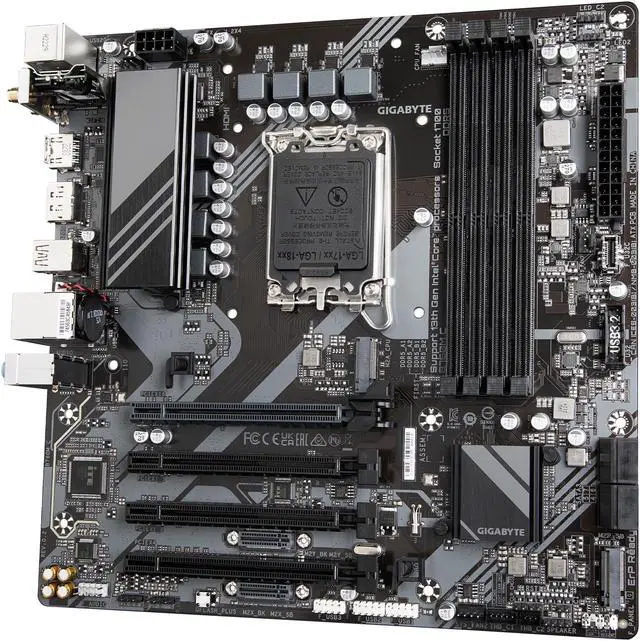

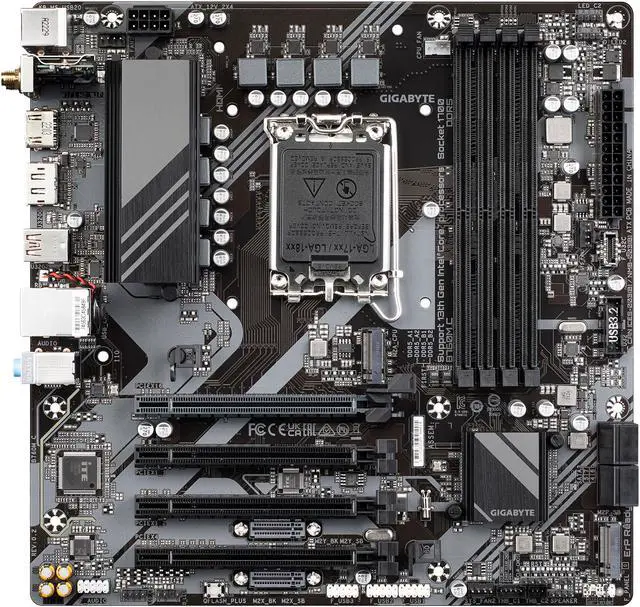

GIGABYTE B760M C LGA 1700 Intel B760 M-ATX Motherboard with DDR5, M.2, PCIe 4.0, USB 3.2 Gen 2 Type-C, Realtek Wi-Fi 1GbE LAN, Q-Flash Plus, PCIe EZ-Latch
- Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
- DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
- Sturdy Power Design: 6+1+1 Hybrid Digital VRM Design
- Thermal Design: Enlarged MOSFET Heatsink
- Next Gen Connectivity: PCIe 5.0 exansion slot, NVMe PCIe 4.0 x2 M.2, USB 3.2 Gen 2 Type-C
- Networking: 1GbE LAN, Realtek Wi-Fi AC
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
+
+
Specs
Reviews (135)
Learn more about the GIGABYTE B760M C
| Brand | GIGABYTE |
|---|---|
| Model | B760M C |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
| Maximum Memory Supported | 192GB |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)(PCB rev. 1.0) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|---|---|
| PCI Express x4 | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| PCI Express x1 | 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 3.0 x1 SSD support) (M2Y_SB, M2X_SB) |
| SATA RAID | 0/1/5/10 |
| Audio Channels | 7.1 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ac |
| Bluetooth | Bluetooth 4.2 |

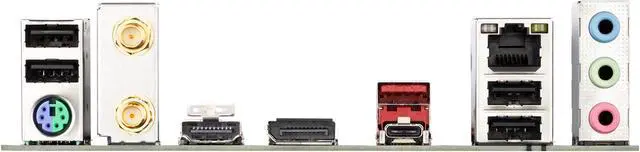

| Back I/O Ports | 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x Thunderbolt add-in card connectors 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|---|
| First Listed on Newegg | April 10, 2023 |
|---|
