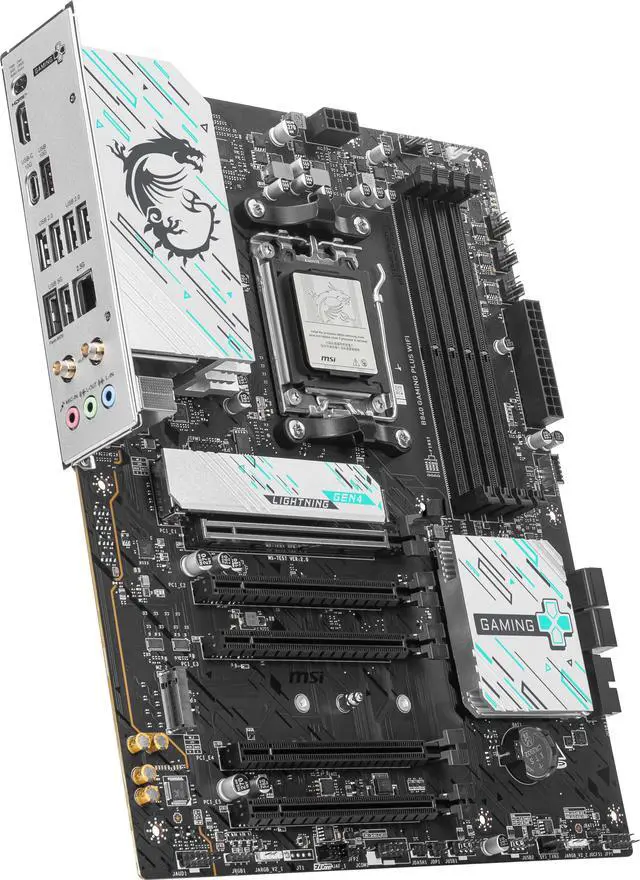

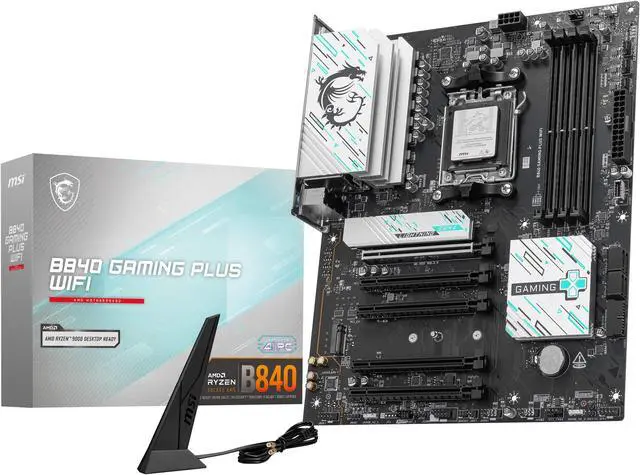

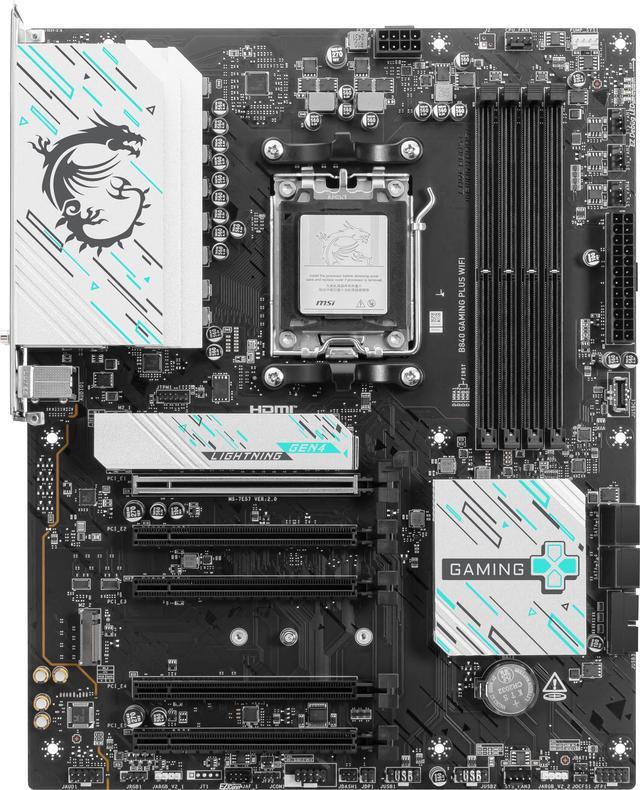

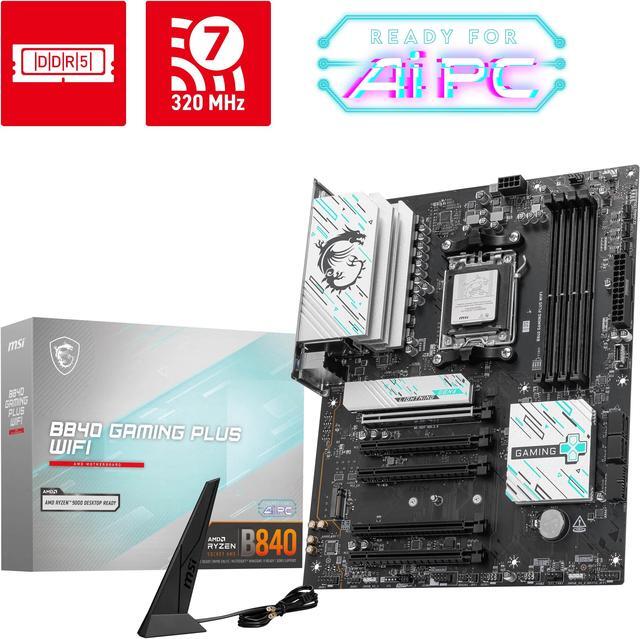

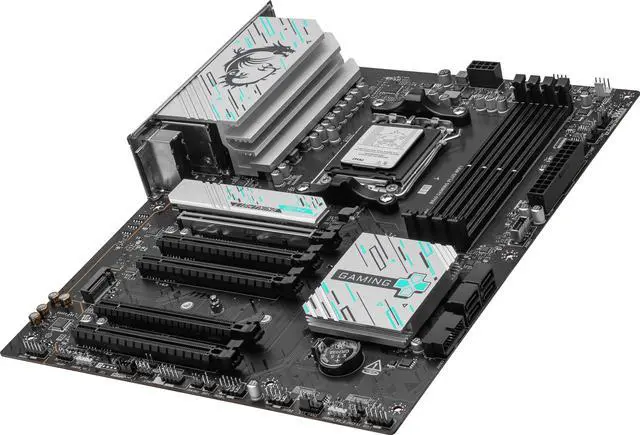

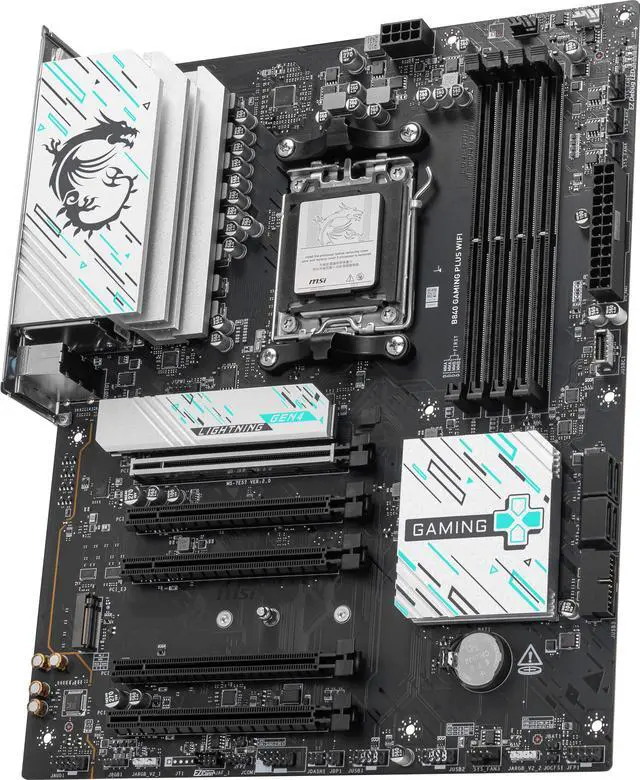

MSI B840 GAMING PLUS WIFI AM5 AMD B840 SATA 6Gb/s 2.5G Network Wi-Fi 7 DDR5 Dual M.2 Connectors ATX Motherboard
- AMD B840
- Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- DDR5 Up to 8000+ MT/s (OC)
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E
- Lighting Gen4 solution: The lates Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Extended heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed
- EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- Dual M.2 Connectors: Onboard dual M.2 connectors for the maximum storage performance with Lightning Gen 4 solution.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.
+
+
Specs
Reviews (62)
Learn more about the MSI B840 GAMING PLUS WIFI
| Brand | MSI |
|---|---|
| Model | B840 GAMING PLUS WIFI |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B840 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Up to 8000+ MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 3 x PCI Express 3.0 x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 2 x M.2 (Support PCIe 4.0 x4) |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek 8125D |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | Bluetooth 5.4 |

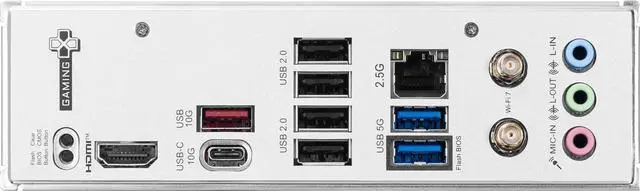

| Back I/O Ports | 1 x Clear CMOS Button / 1 x Flash BIOS Button / 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 Type-A / 2 x Antenna Bracket / 2 x USB 3.2 Gen 1 Type-A / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|
| Form Factor | ATX |
|---|
| Date First Available | January 06, 2025 |
|---|
