Lustrous Aesthetics, Pure Performance
The MEG X670E ACE furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the AMD Ryzen 7000 series processors by combining elite hardware system support and premium durability, the MEG X670E ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking processor, memory, and graphic card at the highest level.

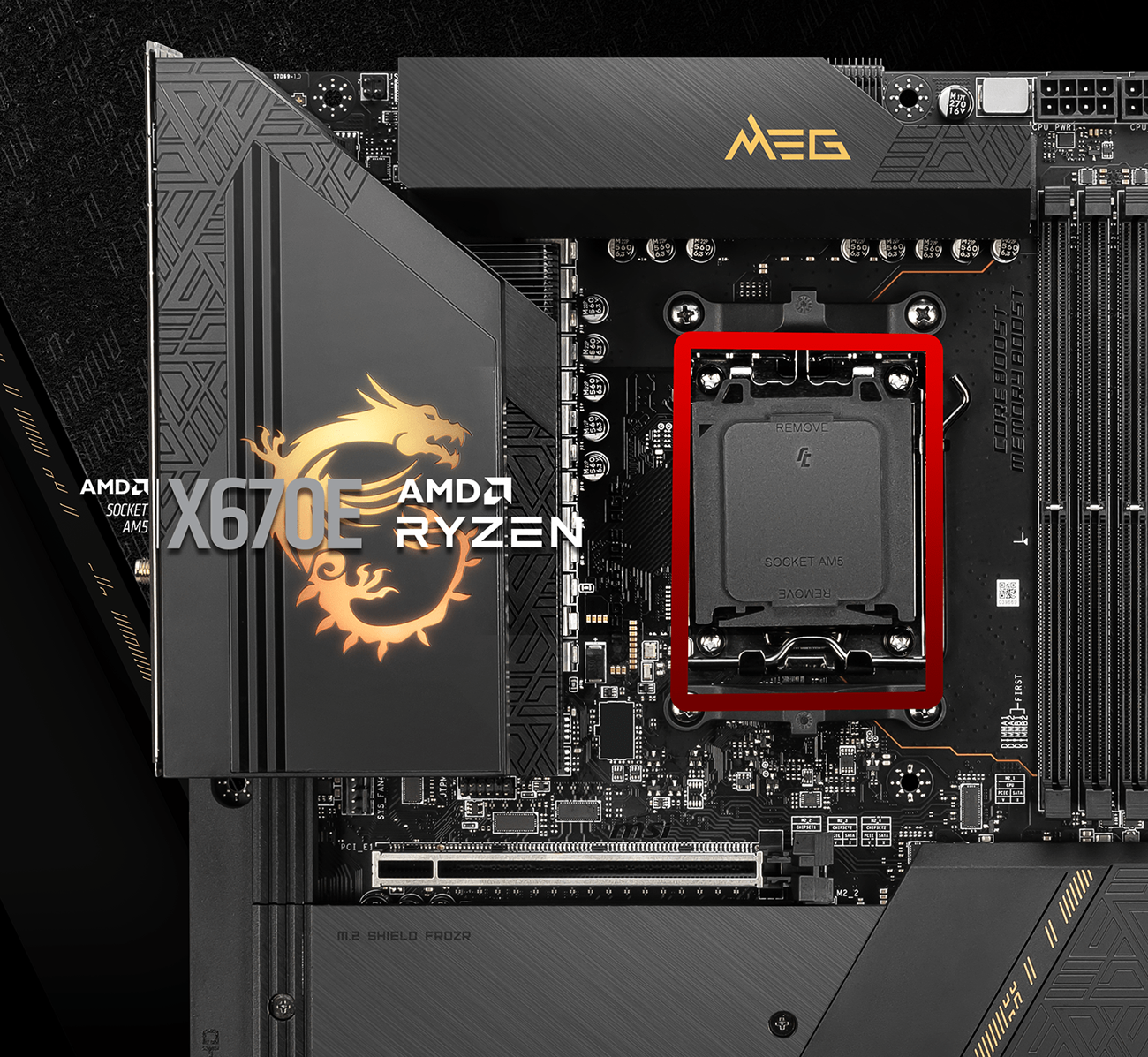

Supports AMD Ryzen 7000 Series Processors
The MEG X670E ACE motherboard supports AMD Ryzen 7000 series processors.
Form Factor: E-ATX
Socket Type: AM5
Chipset: AMD X670
* X670E motherboards are high-performance variants of the X670 chipset, designed to support extreme overclooking.
22+2+1 Phase VRM with 90A Power Stage
With its dual 8-pin power connectors and exclusive Core Boost technology, the MEG X670E ACE is able to release maximum CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 22-Phase Duet-Rail CPU Power (90A)
3. 1-Phase MISC Power
4. 2-Phase SOC Power
Extreme Cooling Features
VRM Cooling: Features Stacked Fin Array, MSI Direct Touch Heat-pipe, 7W/mK MOSFET thermal pads with extra choke thermal pads and Frozr AI software for improved thermal dissipation.
PCB Cooling: Premium 8-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.
SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling and protects SSDs.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including dedicated pump-fan headers.
3 x Fortified PCI-e 5.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
3 x PCI-e 5.0/4.0/3.0 x16 slots (with Steel Armor and AMD Multi-GPU supported)
* MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
4 x DDR5 Dual Channel (6666 MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 6666 MHz, supports AMD EXPO.
Gen5 M.2 Connectors
The MEG X670E ACE motherboard features MSI's latest M.2 slots:
1 x Gen5 x4 128Gb/s slot
3 x Gen4 x4 64Gb/s slots
M.2 XPANDER-Z GEN5 DUAL PCI-Express card provides extra 2x Gen5 x4 M.2 slots.
DIY Friendly Design
MSI X670 motherboards feature patented tool-free M.2 Shield Frozr covers as well as EZ M.2 clips for DIY friendly M.2 SSD installation & upgrades.
Magnetic Design: This patented design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.
Tool-Free M.2 Shield Frozr: MSI patented Shield Frozr covers feature a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip: Install or replace M.2 SSD quickly and effortlessly without ever having to hunt for a screwdriver.

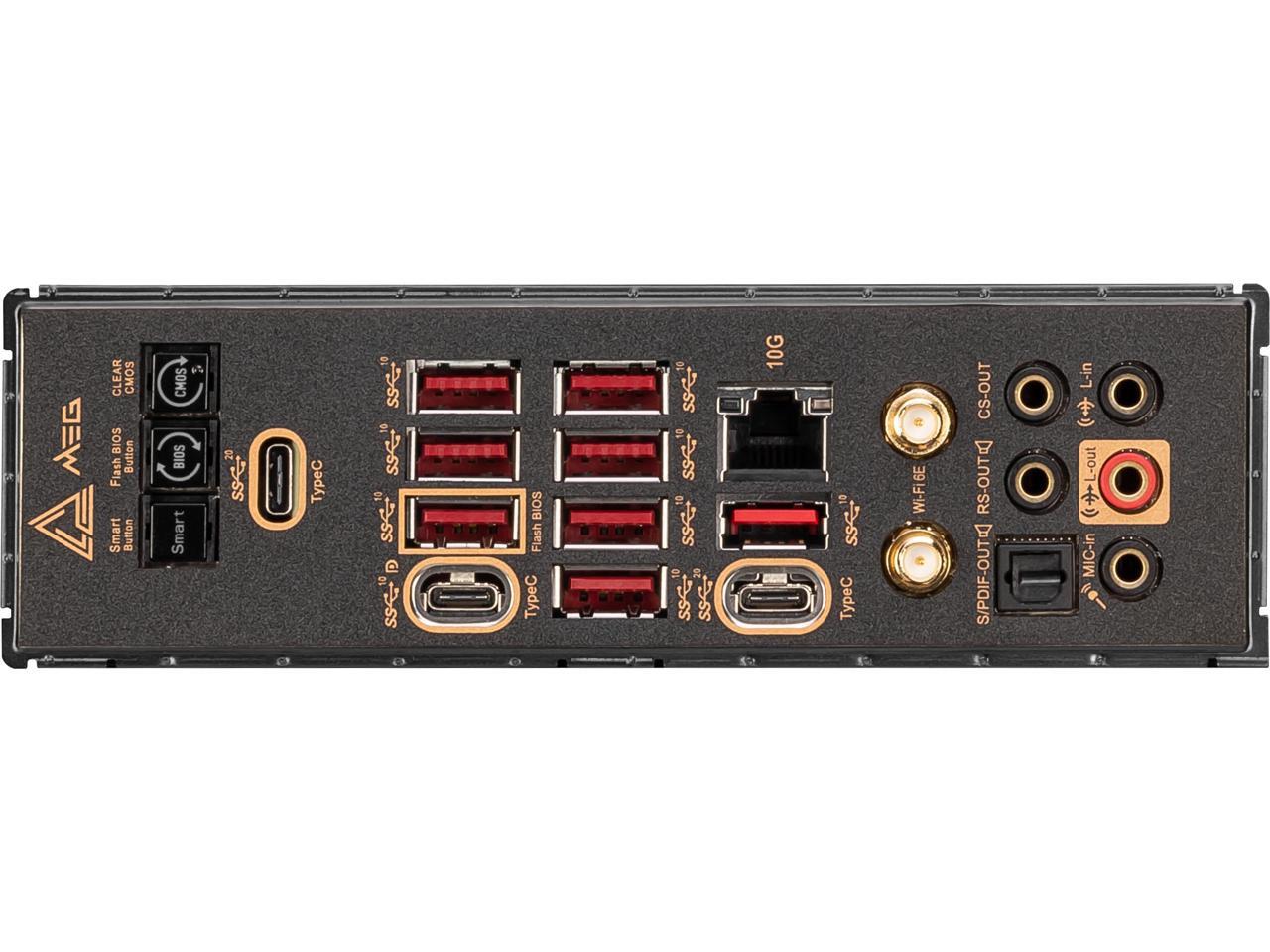

10G Super LAN & Wi-Fi 6E
10G Super LAN: A premium 10Gbps Super LAN controller delivers an utmost network gaming experience.
Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output.
