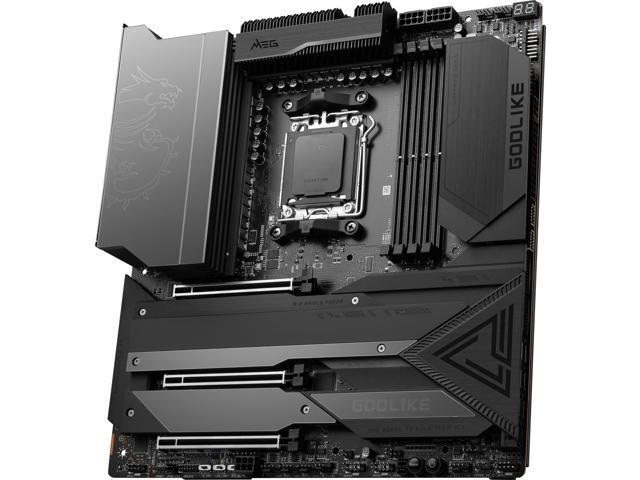

One Board To Rule Them All
The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard, the MEG X670E GODLIKE is developed to unleash the extreme gaming potential of the AMD X670 chipset and is ready to rule the tournament once again.
Supports AMD Ryzen 7000 Series Processors
The MEG X670E GODLIKE motherboard supports AMD Ryzen 7000 series processors.
Form Factor: E-ATX
Socket Type: AM5
Chipset: AMD X670
X670E motherboards are high-performance variants of the X670 chipset, designed to support extreme overclocking.
The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
The Dashbaoard supports system operation, OC tuning, hardware monitor, debug function, live weather, system clock, countdown timer and multiple functions with touch control. Moreover, the detached mode brings a new way for your PC operation.
24+2+1 Phase VRM with 105A Smart Power Stage
With its dual 8-pin power connectors and exclusive Core Boost technology, the MEG X670E GODLIKE is able to release maximum CPU power loads (up to 170W) to support system-demanding game settings:
1. Digital PWM IC
2. 24-Phase Duet-Rail CPU Power (105A)
3. 1-Phase MISC Power
4. 2-Phase SOC Power
Extreme Cooling Features
VRM Cooling: Features Wavy Fin, Aluminum Cover, Direct-touch Cross heat pipe, 7W/mK MOSFET thermal pads with extra choke thermal pads and Frozr AI software for improved thermal dissipation.
PCB Cooling: An 10-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & performance.
SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling and protects SSDs.
System Cooling: Connect and synchronize cooling with strategically placed pin-headers - including dedicated pump-fan headers.
3 x Fortified PCI-e 5.0 x16 Slots
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
3 x PCI-e 5.0/4.0/3.0 x16 slots* (with Steel Armor**, NVIDIA SLI and AMD Multi-GPU supported)
* Supports x16/x0/x4, x8/x8/x4
** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
4 x DDR5 Dual Channel (6666 MHz OC)
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. overclocking frequency 6666 MHz, supports AMD EXPO.
Gen5 M.2 Connectors
The MEG X670E GODLIKE motherboard features MSI's latest M.2 slots:
1 x Gen5 x4 128Gb/s slot
3 x Gen4 x4 64Gb/s slots
M.2 XPANDER-Z GEN5 DUAL PCI-Express card provides extra 2x Gen5 x4 M.2 slots.
10G Super LAN & Wi-Fi 6E
10G Super LAN + 2.5G LAN: Premium 10Gbps Super LAN plus 2.5G LAN controller deliver an utmost network gaming experience.
Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.
USB 3.2 Gen 2x2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 HD & S/PDIF output.
