Business Elegance
The PRO H810I WIFI is a business-oriented ITX motherboard constructed around the latest Intel H810 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

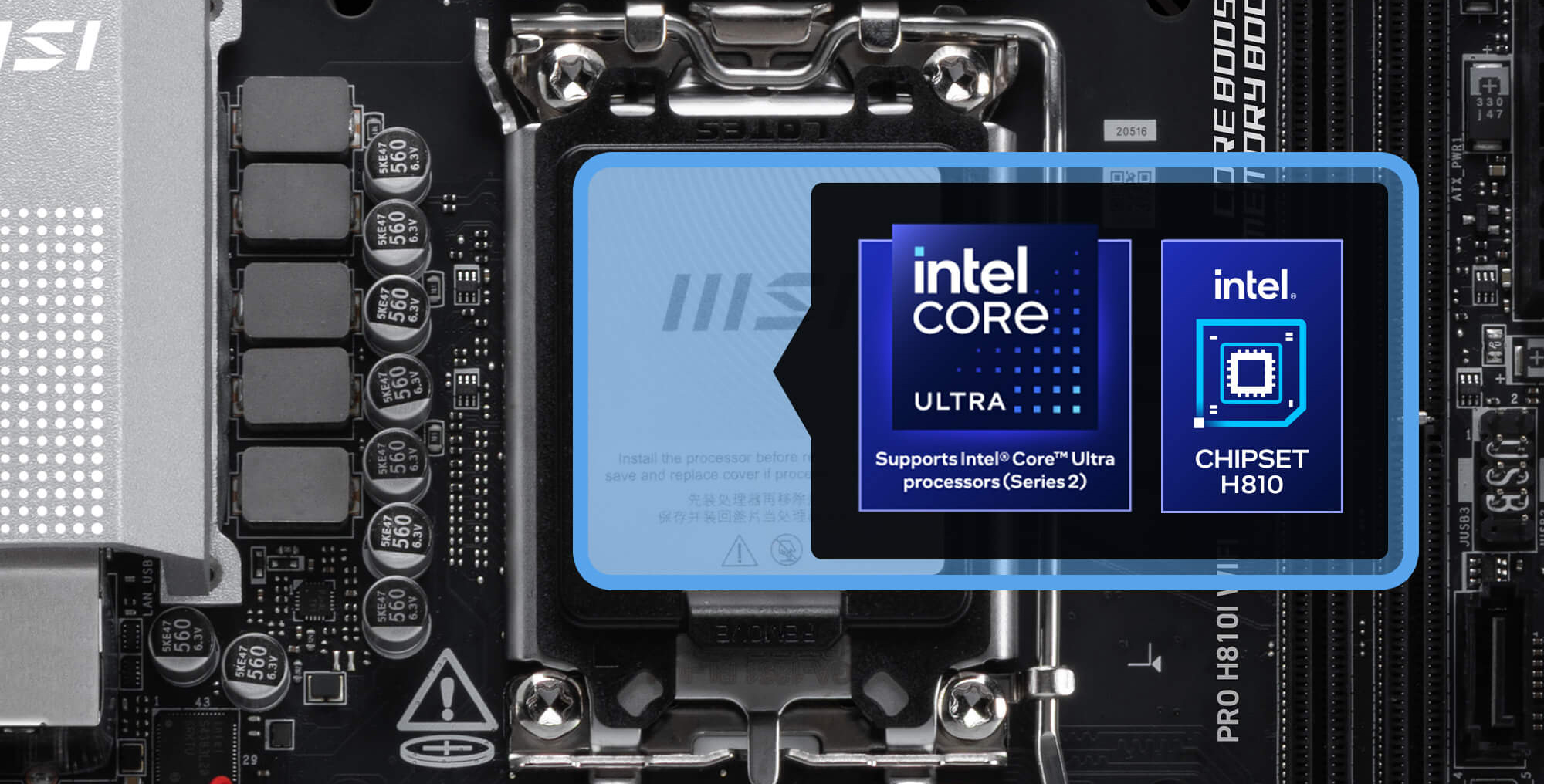

Supports Intel Core Ultra Processors (Series 2)
The PRO H810I WIFI motherboard supports Intel Core Ultra Processors (Series 2).
- Form Factor: ITX
- Socket Type: LGA 1851
- Chipset: Intel H810

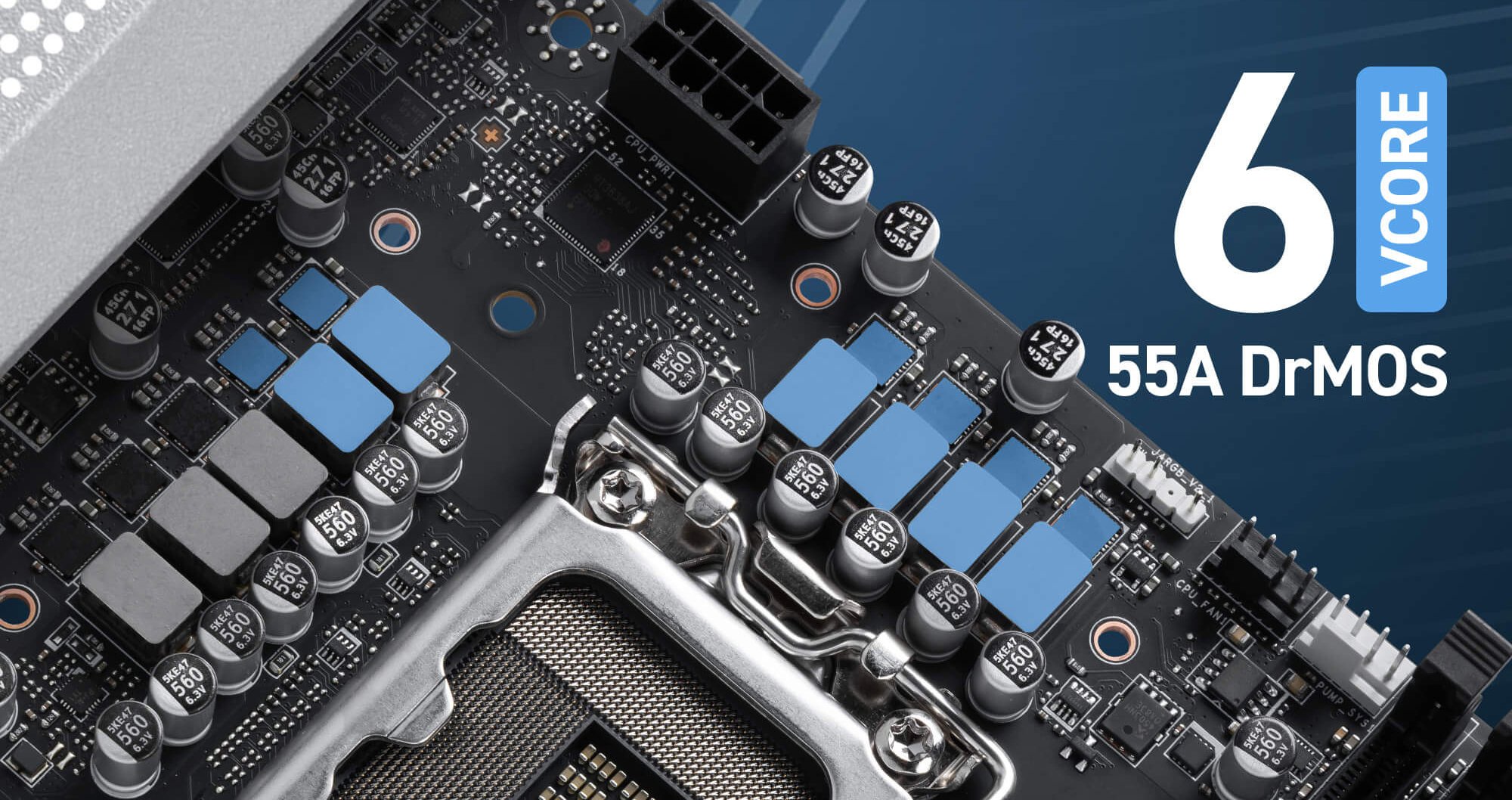

Ultra Power - Direct 6 Phases with 55A DrMOS
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO H810I WIFI is able to sustain heavy CPU power loads to support system-demanding settings:
- Digital PWM IC
- 6-Phase direct CPU power (55A / DrMOS)
- 1-Phase SA Power
- 1-Phase GT Power
- 1-Phase VNNAON Power

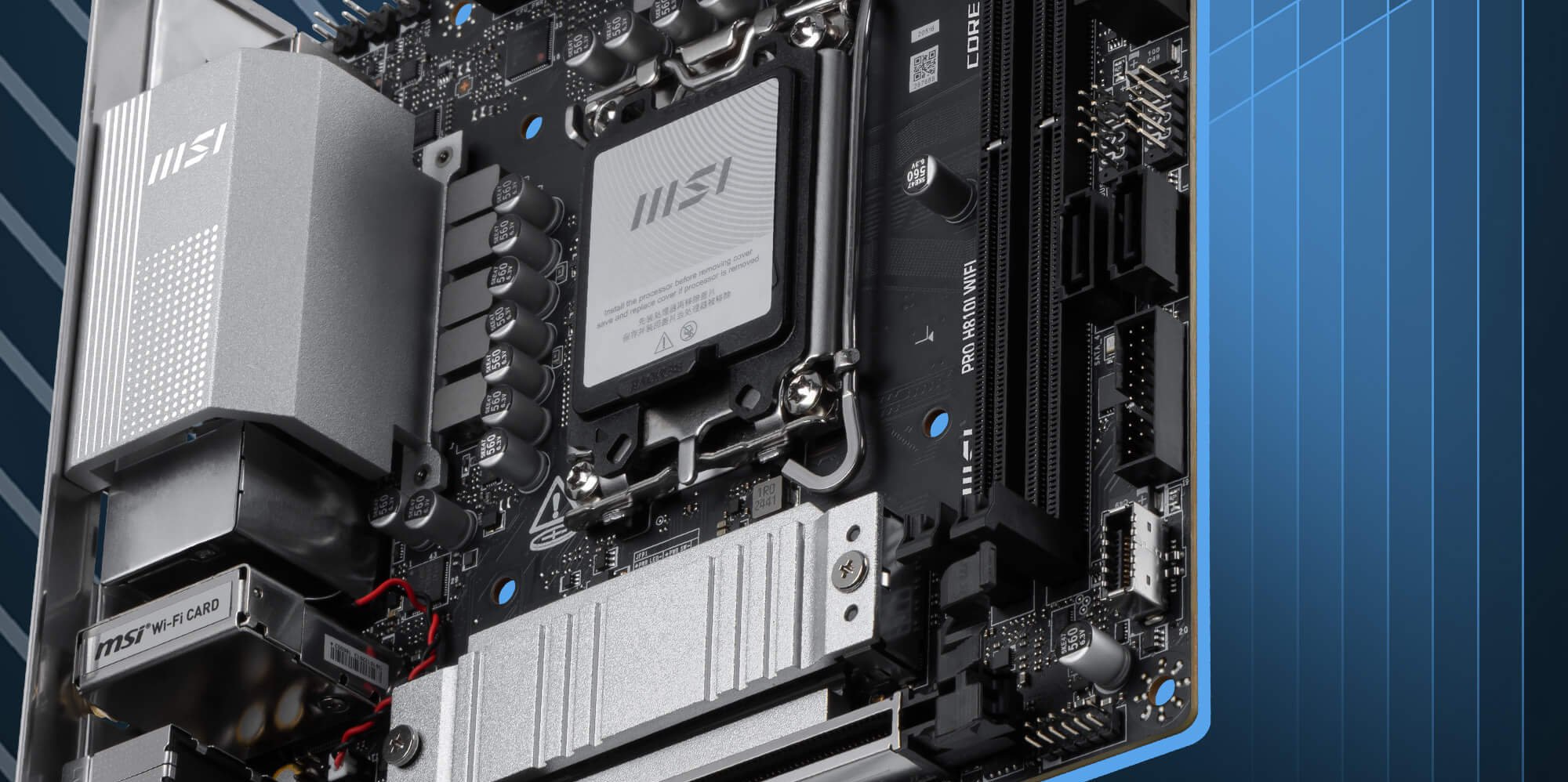

Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan), and system fans (1A).
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

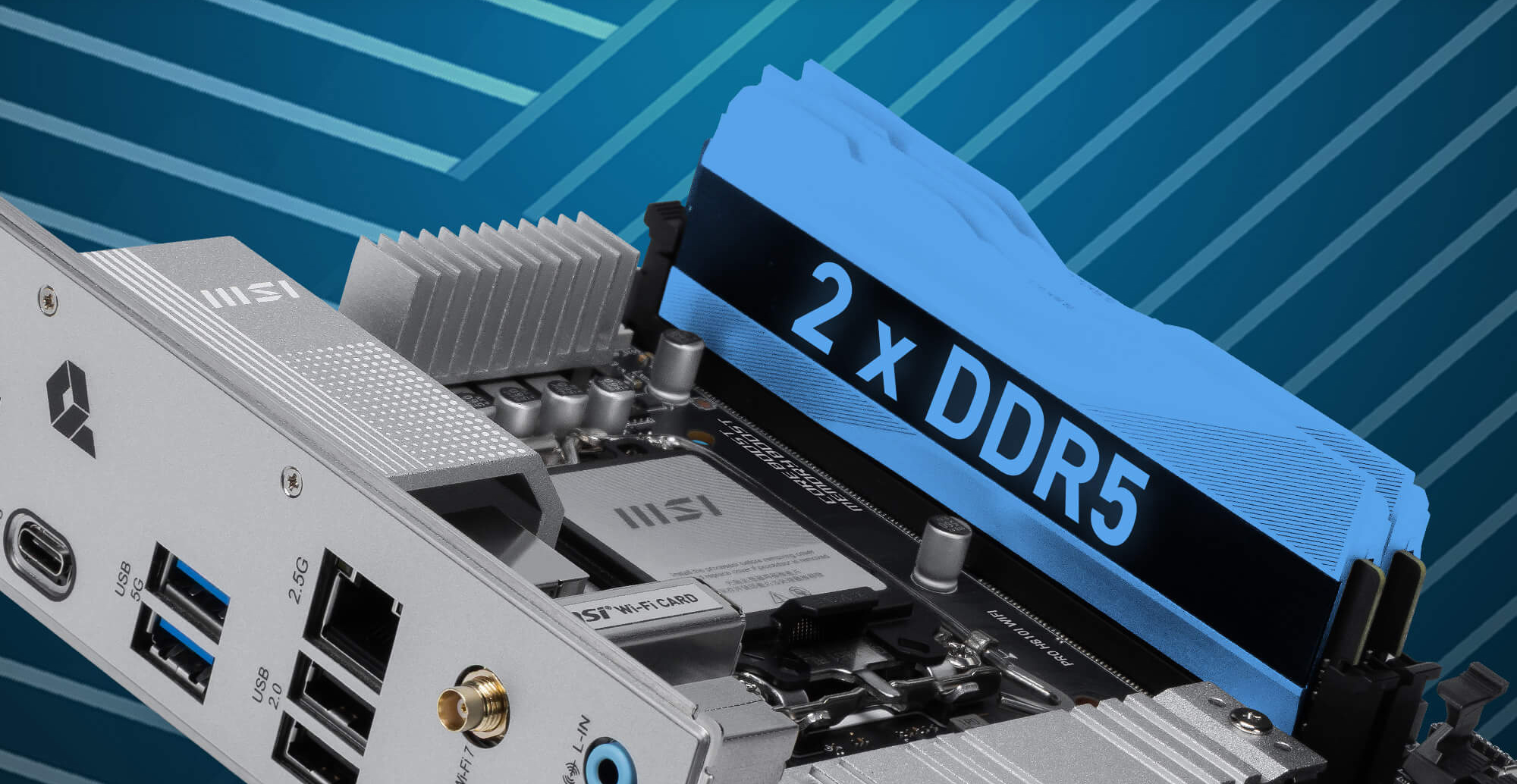

2 x DDR5 Dual Channel (6400 MT/s MAX)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
* 1DPC 1R Max. frequency 6400 MT/s, supports Intel XMP.

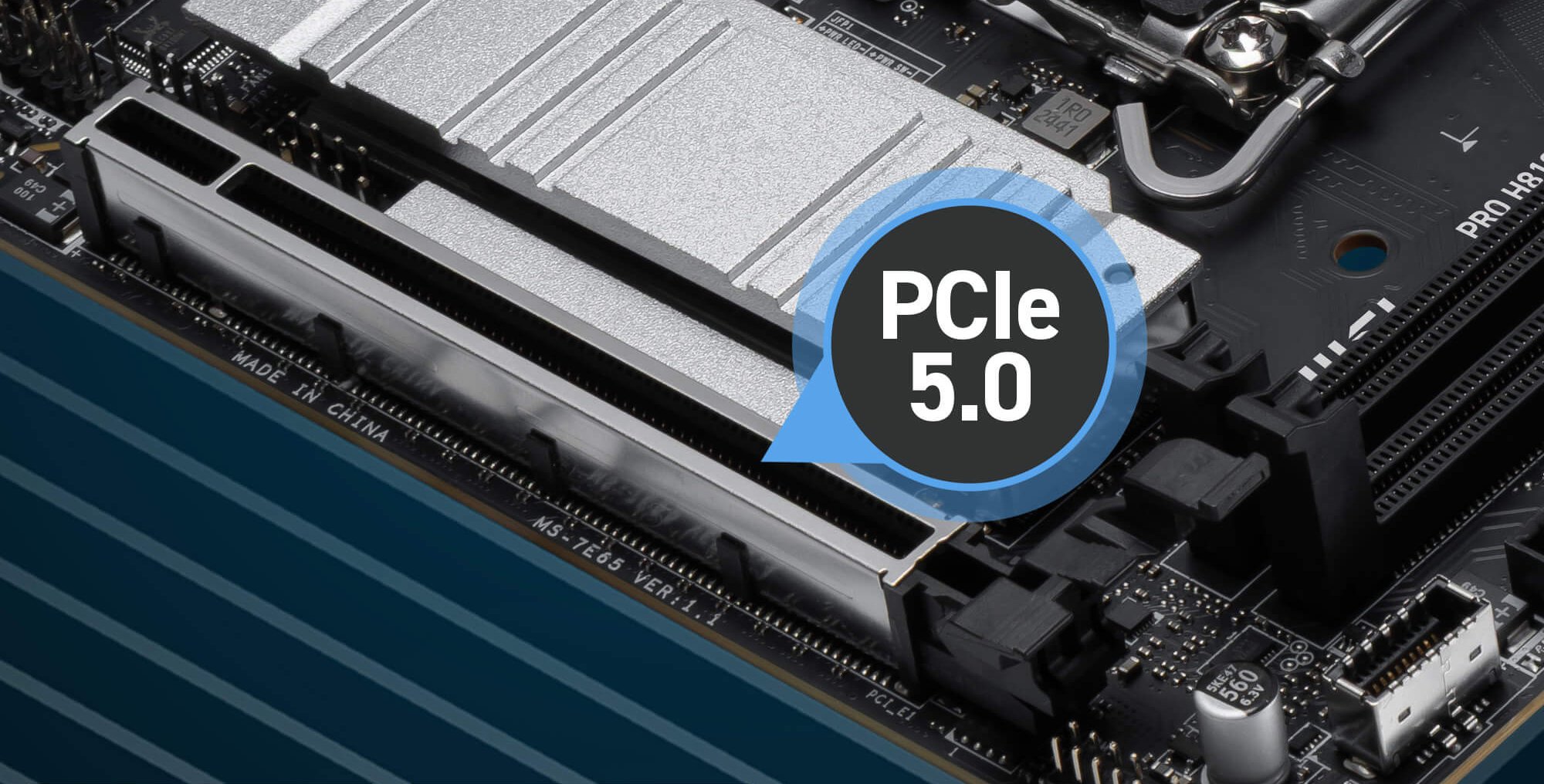

Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)*
* MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

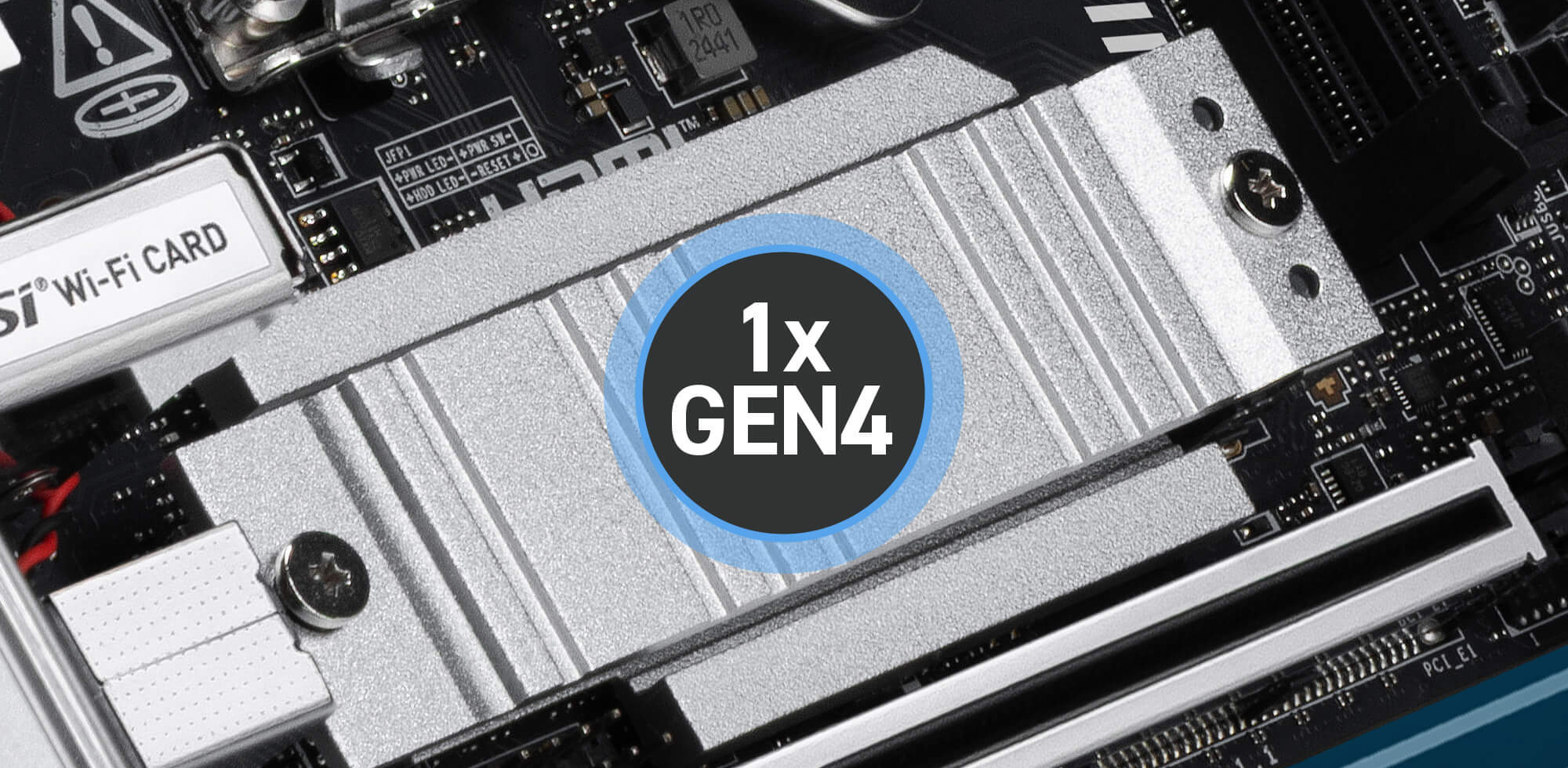

Gen4 M.2 Connector
The PRO H810I WIFI motherboard features MSI's M.2 slot:
1 x Gen4 x4 64Gbps slot

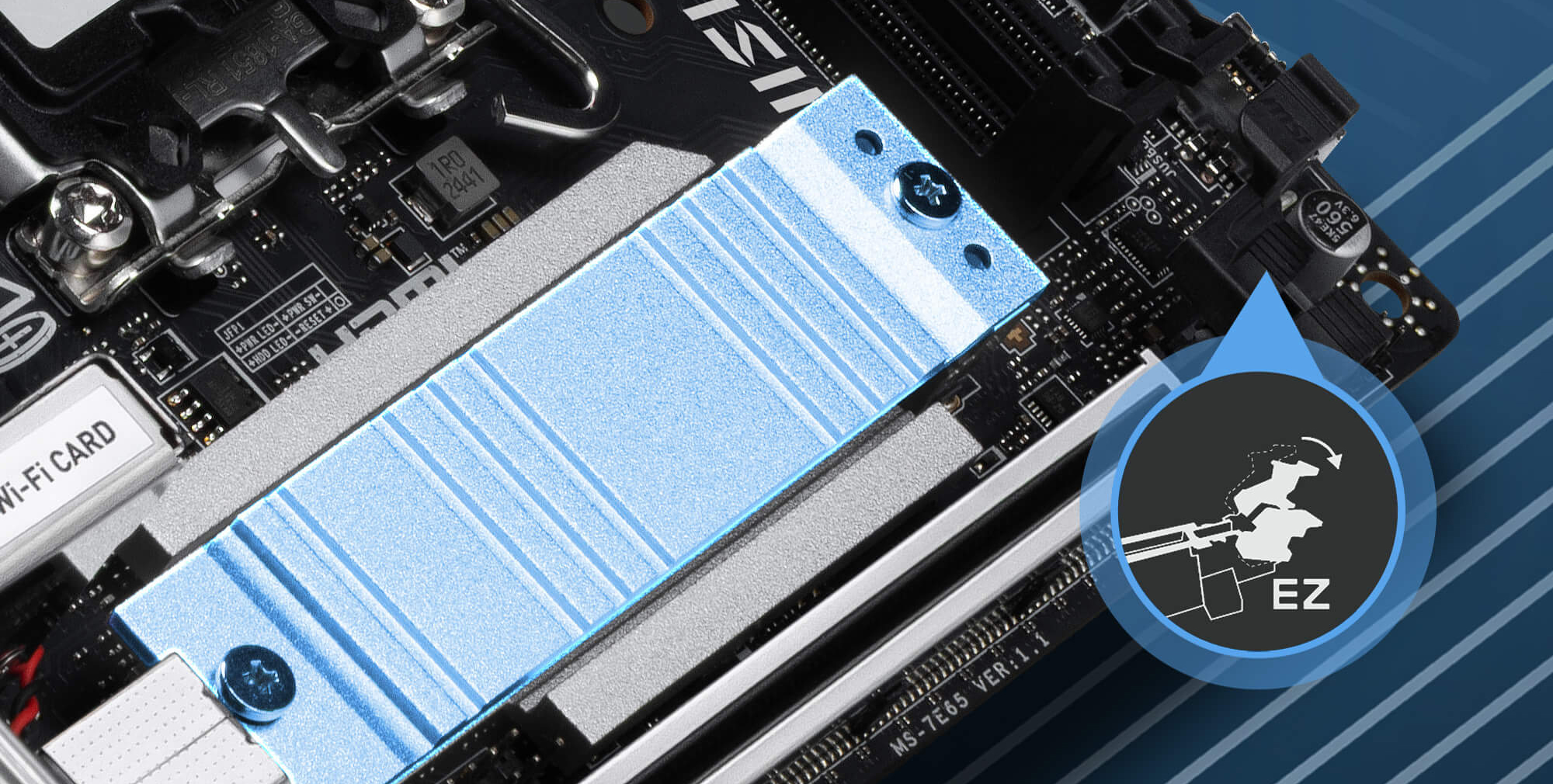

EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

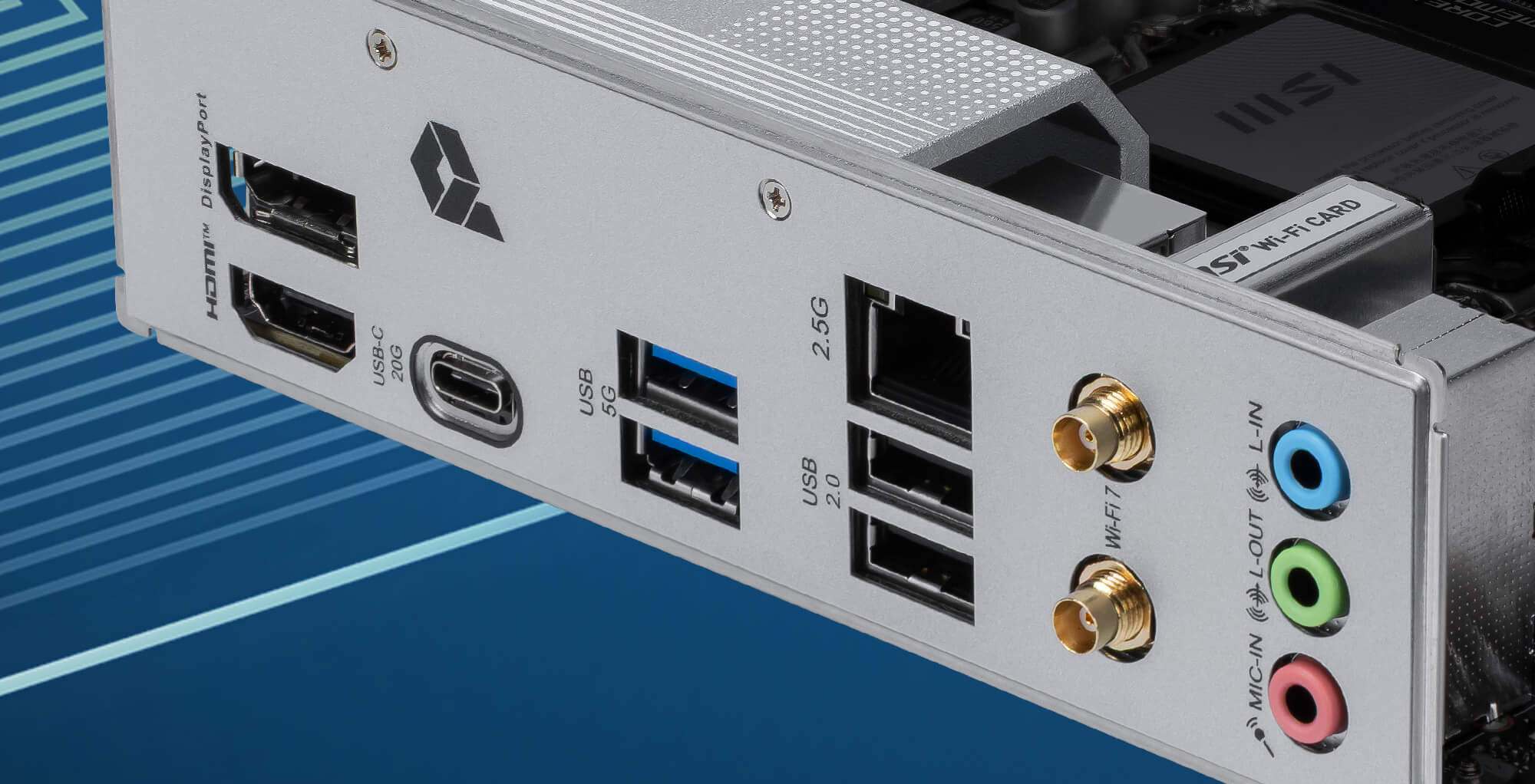

High-speed Connectivity
- 2.5G LAN: An Intel 2.5Gbps LAN controller delivers a premium network experience.
- USB 20Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
- Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
