Waterproof IP68 Backup Reverse Camera Car Rear View Night Vision Camera Universal Color CMOS Back up Parking HD Front View Camera 2 Installation Options- Mirror Image/Guidelines Switching

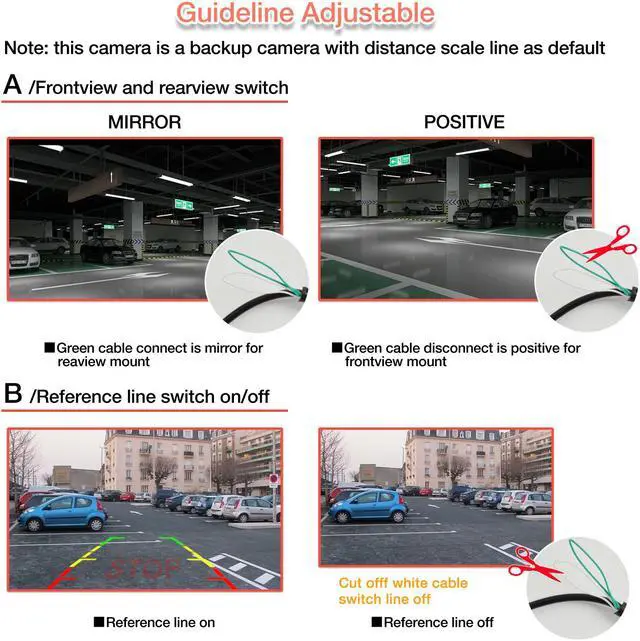

Solid metal housing design & Small size aims at bringing high quality products and best service to our customers. We believe that only customers have a good shopping experience, we can make better progress. Solid metal housing design Small size Unique Design The camera can be used as backup camera, side view camera and front camera, you also can chose distance scale line or no. If you want to switch, the
procedure is as follows: 1. If you need a backup camera without distance scale line, please cut the white wire. 2. If you need a front camera with distance scale line, please cut the green wire. 3. If you need a front camera without distance scale line, please cut the both green and white wire.
Note: This camera is a backup camera with distance scale line as default. Remember to turn off the power before switching

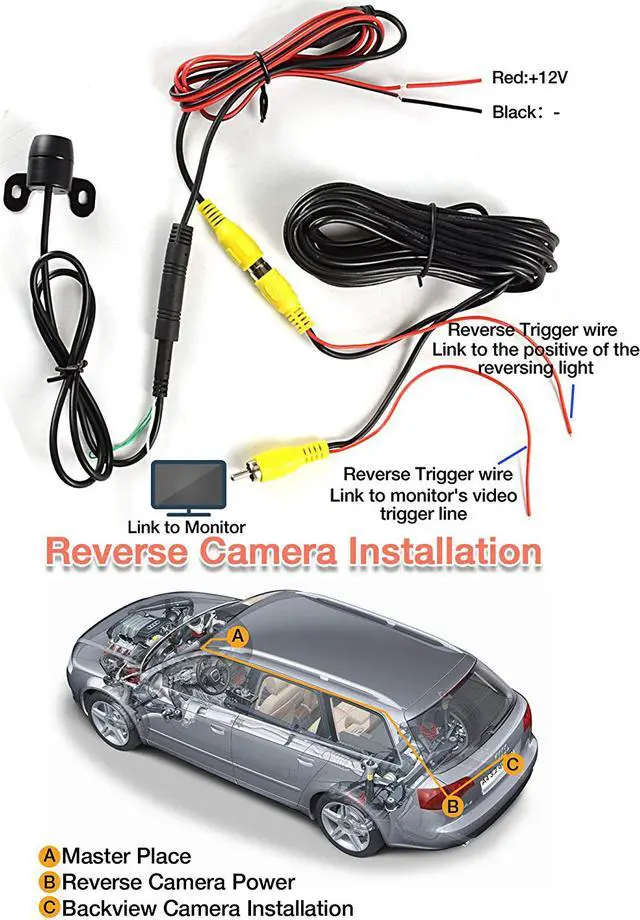

White Switch Wire: Distance scale Line (Yes/No)
Switcher Green Switcher Wire: rear / front (side) camera switcher 2 in 1 rear view camera 2

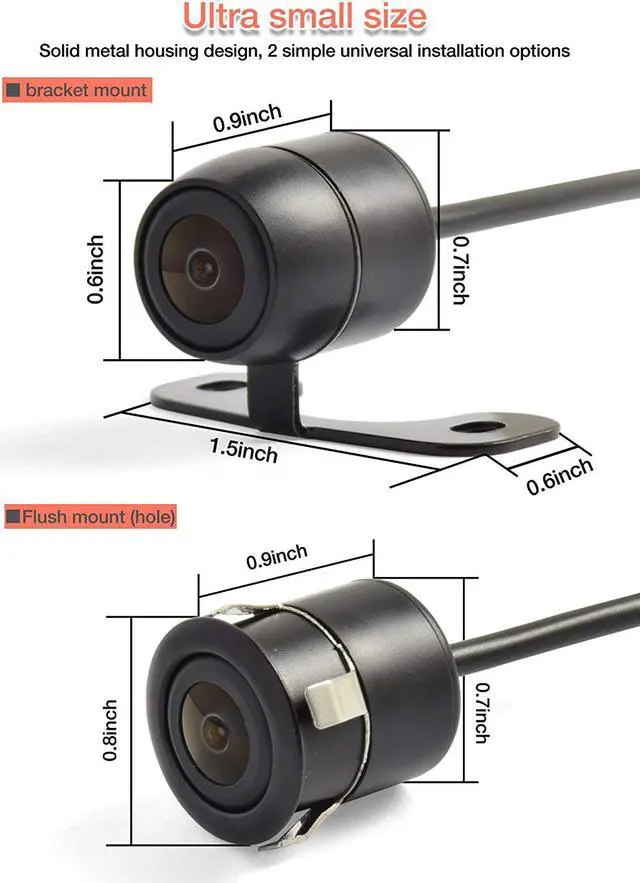

installation options: 1) Flush Mount (hole) 2) Bracket
Mount Color: Black
TV System: NTSC
Operating Temperature: -30? -75?, RH 90% MAX
Storage Temperature: -40? -85?, RH 90%
MAX Specifications: Image
Sensor: HD Color CMOS
Image Effective Pixels: 728*560pixels
Horizontal Resolution: 480TVL
Scanning System: 2:1 Internet
Minimum Illumination: 0.2 Lux / F 1.2 ( 0 Lux with LED).
Power Supply: DC 12 V.
Lens angle: 160 Degree.
Waterproof: IP68
Package Including: 1 x rear view Camera (Function Switcher) 2 in 1. 1 x Power supply Cable. 1 x Video Cable (19 Ft / 6 M). 1 x Fixing screws. 1 x Hole Saw. 1 x English Users' Manual
