Dual band 3000Mbps Wifi 6 AX200NGW PCI-E 1X Wireless Adapter 2.4G/5Ghz 802.11ac/ax Bluetooth 5.0 For Win10 AX200 WiFi Network Card
- Instant 802.11ax Wi-Fi 6 upgrade for your desktop PC: no more messy Ethernet cables needed;
- The Intel Wi-Fi 6 AX200 802.11ax chip for super-fast connections up to 2400Mbps;
- Selectable dual-band 2.4 GHz and 5 GHz operation with backwards compatibility with all existing devices;
- High-power design for greater signal coverage;

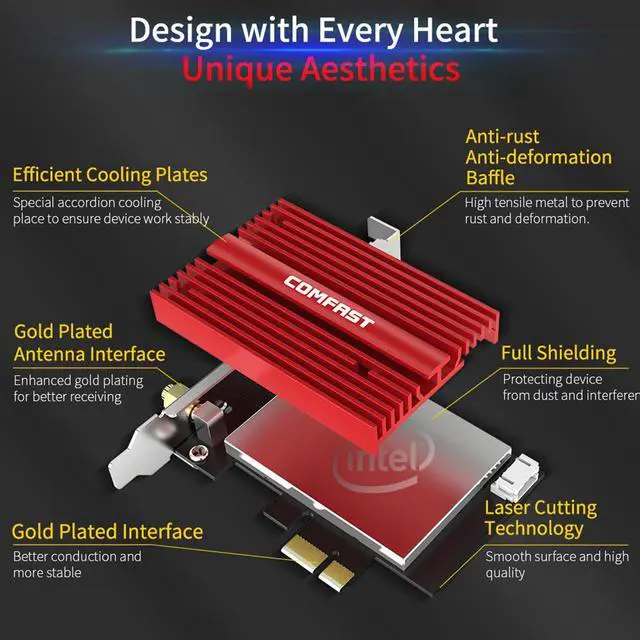

- Specially-designed heatsink ensures stable and reliable continuous operation.
- 2*5dBi high gain antennas get the better signal reception.
+
+
Overview
Specs
Reviews
Specification:
Hardware: for Intel AX200
Antenna: External 2 x 5dBi
Physical Interface: PCIE-X1
Wireless Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps
(3000Mbps is the theoretical speed, actually 2.4GHz 574Mbps + 5.8GHz 2400Mbps)
Compatible slots: PCIE-16X / PCIE-8X / PCIE-4X / PCIE-1X, graphics card slot
Network Environment: Gigabit Network
Transmit Power: 20dBm
Other Functions: Simulate AP Function, need to install third-party software, for Win10 system does not support AP function
Scope of Application: Desktop (Not Supported by Apple computers)

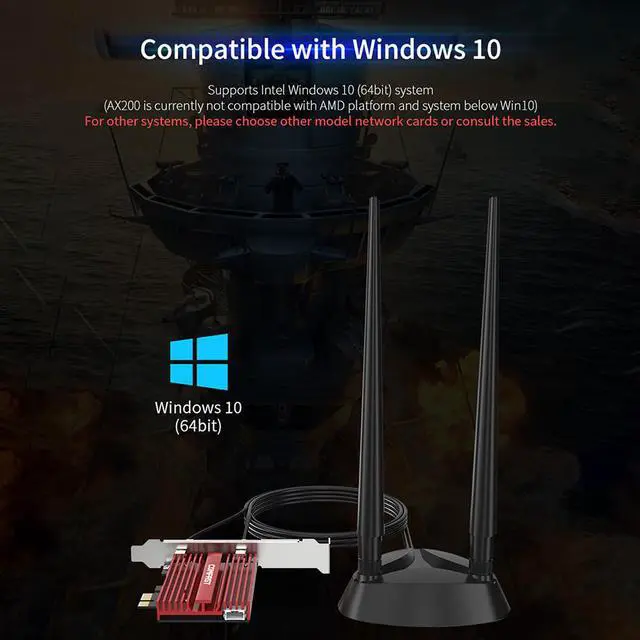

Operating System Support: for Win10 (64-bit), Bluetooth 5.0
Product Size: 72 X 46mm/2.83 X 1.81"; Antenna Length 143mm/5.63; Extension Cable 1.5m/4.92ft
Use Environment:
Working Temperature: 0? ~ 40?
Storage Temperature: -40°C ~ 70°C
Working Humidity: 10% ~ 90% RH Non-Condensing
Storage Humidity: 5% ~ 90% RH Non-Condensing
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
Packages:
1 x Network Card
1 x Bluetooth Cable
1 x Screw
Hardware: for Intel AX200
Antenna: External 2 x 5dBi
Physical Interface: PCIE-X1
Wireless Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps
(3000Mbps is the theoretical speed, actually 2.4GHz 574Mbps + 5.8GHz 2400Mbps)
Compatible slots: PCIE-16X / PCIE-8X / PCIE-4X / PCIE-1X, graphics card slot
Network Environment: Gigabit Network
Transmit Power: 20dBm
Other Functions: Simulate AP Function, need to install third-party software, for Win10 system does not support AP function
Scope of Application: Desktop (Not Supported by Apple computers)
Operating System Support: for Win10 (64-bit), Bluetooth 5.0
Product Size: 72 X 46mm/2.83 X 1.81"; Antenna Length 143mm/5.63; Extension Cable 1.5m/4.92ft
Use Environment:
Working Temperature: 0? ~ 40?
Storage Temperature: -40°C ~ 70°C
Working Humidity: 10% ~ 90% RH Non-Condensing
Storage Humidity: 5% ~ 90% RH Non-Condensing
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
Packages:
1 x Network Card
1 x Bluetooth Cable
1 x Screw
