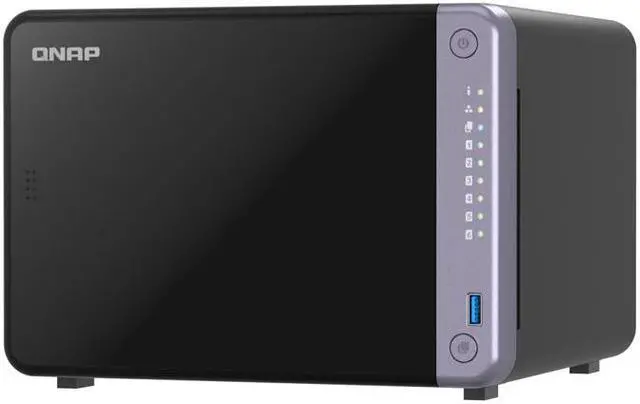

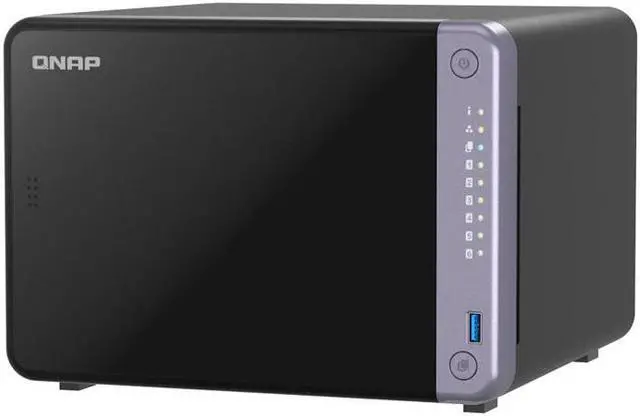

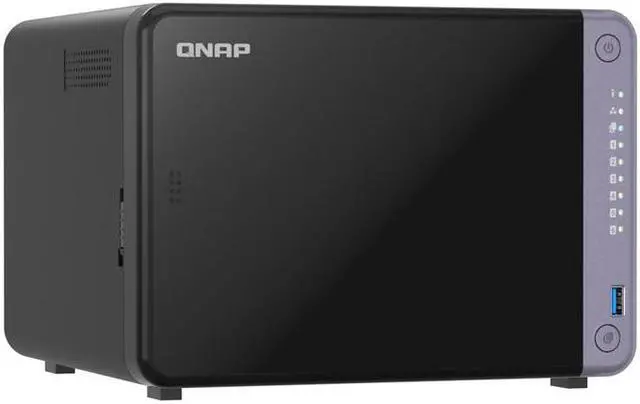

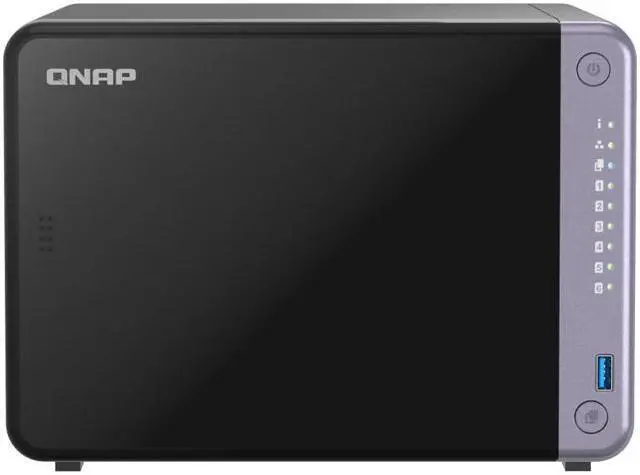

QNAP 2024 TS-632X-4G network storage NAS desktop home server private cloud 6 bay
- #Please refer to the official website for detailed specifications#
- #The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#
- Sleek design, reliable performance, 6-bay 10GbE NAS designed to improve work efficiency
- Quad-core 2.0GHz processor and 4 GB non-ECC memory (expandable to 16 GB, and supports ECC memory).
- Dual-port 10GbE SFP+ network transmission speeds up large file transfers, intensive access, and shortens backup time.
- You can use SMB multi-channel or network aggregation (Port Trunking) to increase the speed of simultaneous access for individuals or multiple people.
- Install an expansion card to add 2.5/5/10GbE network or M.2 SSD slot to the NAS, more I/O, unlimited potential.
- Built-in dual-port USB 3.2 Gen 1 (5Gbps) and support One Touch Copy, one-click backup of hard disk data is more powerful.
- Specialized backup solutions designed for different types of data and endpoints, with regular snapshots (Snapshot) to fight against encryp
+
+
Overview
Specs
Reviews
CPU AnnapurnaLabs, Alpine AL524 quad-core 2.0GH z processor from Amazon
CPU architecture 64-bit ARM
Floating point Yes
Crypto engine Yes
System memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum memory 16 GB (1 x 16 GB)
Memory slots 1 x SODIMM DDR4
Supports ECC memory
Flash memory 512 MB (dual boot OS protection)
Number of hard drive slots 6 x 3.5 -inch SATA 6Gb/s, 3Gb/s
Supported hard drive types 3.5 -inch slots:
3.5 -inch SATA hard drive
2.5 -inch SATA hard drive
2.5 -inch SATA solid state drive
Hot-swap support Yes
SSD cache acceleration support Yes
2.5 Gigabit Ethernet port
( 2.5G /1G/100M)
2 ( 2.5G /1G/100M)
10 Gigabit Ethernet Ports 2 x 10GbE SFP+
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1
Slot 1: PCIe Gen 3 x4
PCIe Slot Card Dimensions: 190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
USB 3.2 Gen 1 Ports 2
Form Factor Vertical
LED Indicators Power/Status, Network USB, HDD1-6
Buttons Power, System Reset, USB Auto Backup
Dimensions (H x W x D) 226.5 × 235 × 165 mm
Weight (Net) 2.5 kg
Weight (Gross) 4.96 kg
Operating Temperature 0 - 40°C (32°F - 104°F)
Storage Temperature -20 - 70 °C (-4°F - 158°F)
Relative Humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power Supply 120W
Adapter (12VDC), 100-240VAC
Fans 2 x 90mm, 12VDC
System Alerts Buzzer
Kensington Security Slot Yes
Standard Warranty 2
CPU architecture 64-bit ARM
Floating point Yes
Crypto engine Yes
System memory 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum memory 16 GB (1 x 16 GB)
Memory slots 1 x SODIMM DDR4
Supports ECC memory
Flash memory 512 MB (dual boot OS protection)
Number of hard drive slots 6 x 3.5 -inch SATA 6Gb/s, 3Gb/s
Supported hard drive types 3.5 -inch slots:
3.5 -inch SATA hard drive
2.5 -inch SATA hard drive
2.5 -inch SATA solid state drive
Hot-swap support Yes
SSD cache acceleration support Yes
2.5 Gigabit Ethernet port
( 2.5G /1G/100M)
2 ( 2.5G /1G/100M)
10 Gigabit Ethernet Ports 2 x 10GbE SFP+
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1
Slot 1: PCIe Gen 3 x4
PCIe Slot Card Dimensions: 190 x 68.9 x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
USB 3.2 Gen 1 Ports 2
Form Factor Vertical
LED Indicators Power/Status, Network USB, HDD1-6
Buttons Power, System Reset, USB Auto Backup
Dimensions (H x W x D) 226.5 × 235 × 165 mm
Weight (Net) 2.5 kg
Weight (Gross) 4.96 kg
Operating Temperature 0 - 40°C (32°F - 104°F)
Storage Temperature -20 - 70 °C (-4°F - 158°F)
Relative Humidity 5-95% RH (non-condensing),
wet bulb: 27C ( 80.6F )
Power Supply 120W
Adapter (12VDC), 100-240VAC
Fans 2 x 90mm, 12VDC
System Alerts Buzzer
Kensington Security Slot Yes
Standard Warranty 2
