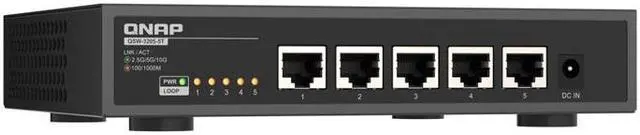

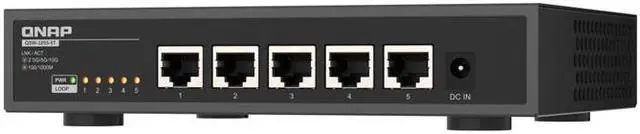

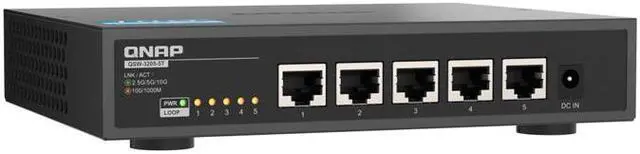

QNAP QSW-3205-5T 5-port 10GbE Multi-Gig 5-speed switch network splitter
- 5-port 10GBASE-T RJ45
- The most cost-effective 5-port 10GbE unmanaged Multi-Gig 5-speed switch, enjoy 10G network speed easily.
- No complicated settings are required. The best transmission speed can be automatically set according to different connected devices, without the need to fully upgrade old devices.
- Lightweight body, with EEE low power consumption and Class B low electromagnetic interference certification, suitable for indoor operation environment.

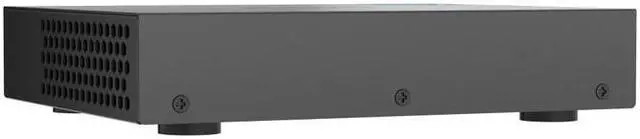

- Fanless ultra-quiet design, through high-efficiency heat dissipation mechanism, allows you to work without being disturbed by noise.
- Loop detection and blocking function can automatically detect whether there is a loop in the environment, and automatically block the line that generates the loop.
- Supports 12K large packet transmission format, improves large file transmission efficiency and reduces packet loss rate.
+
+
Overview
Specs
Reviews
Management Type No Management
Number of ports: 5
10GbE BASE-T (RJ45) 5
10G/5G/ 2.5G /1G/100M
Power Supply Description Power Adapter
Maximum power consumption 36W
Input power type DC
Input voltage range 12V/3A
MAC address table 16K
Total uncongested traffic 50Gbps
Switching capacity 100Gbps
Energy Efficient Ethernet (IEEE compliant
802.3 az)
Yes
FanlessYes
Support standard IEEE 802.3 Ethernet
IEEE 802.3 u 100BASE-T
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 bz 2.5G /5GBase-T
IEEE 802.3 an 10GBASE-T
IEEE 802.3 az EEE
IEEE 802.3 x full-duplex flow control
Desktop
LED indicators per port: Speed/Link/Activity
Per system: Power/Status/Loop
Dimensions (H x W x D) 44 x 210 x 160 mm
Weight (net): 0.96 kg
Weight (total): 1.2 kg
Operating temperature 0°C to 40°C (32°F to 104°F)
Relative humidity 10~95% non-condensing
CertificatesCE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Electromagnetic
Jumbo Frame Packet 12K
Warranty 2 years
Number of ports: 5
10GbE BASE-T (RJ45) 5
10G/5G/ 2.5G /1G/100M
Power Supply Description Power Adapter
Maximum power consumption 36W
Input power type DC
Input voltage range 12V/3A
MAC address table 16K
Total uncongested traffic 50Gbps
Switching capacity 100Gbps
Energy Efficient Ethernet (IEEE compliant
802.3 az)
Yes
FanlessYes
Support standard IEEE 802.3 Ethernet
IEEE 802.3 u 100BASE-T
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 bz 2.5G /5GBase-T
IEEE 802.3 an 10GBASE-T
IEEE 802.3 az EEE
IEEE 802.3 x full-duplex flow control
Desktop
LED indicators per port: Speed/Link/Activity
Per system: Power/Status/Loop
Dimensions (H x W x D) 44 x 210 x 160 mm
Weight (net): 0.96 kg
Weight (total): 1.2 kg
Operating temperature 0°C to 40°C (32°F to 104°F)
Relative humidity 10~95% non-condensing
CertificatesCE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Electromagnetic
Specifications
Class BJumbo Frame Packet 12K
Warranty 2 years
