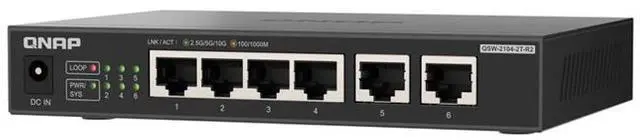

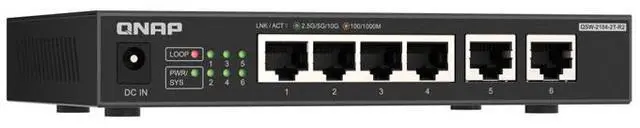

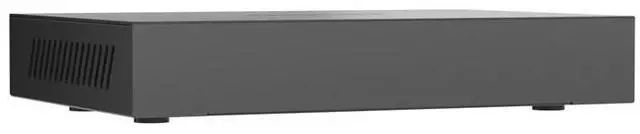

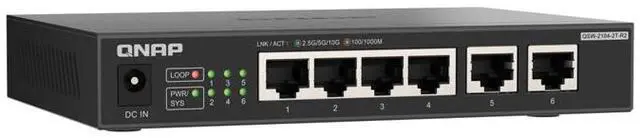

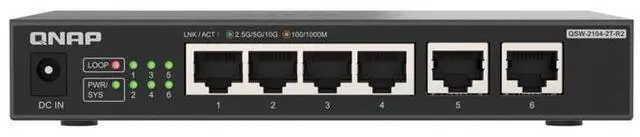

QNAP QSW-2104-2T-R2 desktop switch 6-port splitter network management routing Ethernet 10G home
- QSW-2104-2T-R2 4-port 2.5GbE and 2-port 10GbE Multi-Gig unmanaged switch.
- 4-port 2.5GbE RJ45 (supports 2.5G/1G/100M) and 2-port 10GbE RJ45 (supports five-speed 10G/5G/2.5G/1G/100M), with a total backplane bandwidth of up to 60Gbps.
- Plug and play, can automatically set the best transmission speed according to different connected devices.
- Desktop design with lightweight body, EEE low power consumption and Class B low electromagnetic interference certification.
- Fanless and ultra-quiet design.
- Loop detection and blocking function can automatically detect whether there is a loop in the environment, and automatically block the line that generates the loop.
- Supports 12K large packet transmission format, improves large file transmission efficiency and reduces packet loss rate.
+
+
Overview
Specs
Reviews
Management Type No Management
Number of ports: 6
10GbE BASE-T (RJ45) 2
10G/5G/ 2.5G /1G/100M
2.5G bE (RJ45) 4
Power Supply Description Power Adapter
Maximum power consumption: 18W
Input power type DC
Input voltage range 12V/ 1.5A
MAC Address Table 4K
Total uncongested traffic 30Gbps
Switching capacity 60Gbps
Energy Efficient Ethernet (IEEE compliant
802.3 az)
Yes
FanlessYes
Support standard IEEE 802.3 Ethernet
IEEE 802.3 u 100BASE-T
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 bz 2.5G /5GBase-T
IEEE 802.3 an 10GBASE-T
IEEE 802.3 az EEE
IEEE 802.3 x full-duplex flow control
Desktop
LED indicators per port: Speed/Link/Activity
Loop LED: Loop
Per system: Power/Status
Dimensions (H x W x D) 26 x 160 x 110 mm
Weight (net): 0.45 kg
Weight (total weight) 0.522 kg
Operating temperature 0°C to 40°C (32°F to 104°F)
Relative humidity 10~95% non-condensing
CertificatesCE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Electromagnetic
Jumbo Frame Packet 12K
Warranty 2 years
Number of ports: 6
10GbE BASE-T (RJ45) 2
10G/5G/ 2.5G /1G/100M
2.5G bE (RJ45) 4
Power Supply Description Power Adapter
Maximum power consumption: 18W
Input power type DC
Input voltage range 12V/ 1.5A
MAC Address Table 4K
Total uncongested traffic 30Gbps
Switching capacity 60Gbps
Energy Efficient Ethernet (IEEE compliant
802.3 az)
Yes
FanlessYes
Support standard IEEE 802.3 Ethernet
IEEE 802.3 u 100BASE-T
IEEE 802.3 ab 1000BASE-T
IEEE 802.3 bz 2.5G /5GBase-T
IEEE 802.3 an 10GBASE-T
IEEE 802.3 az EEE
IEEE 802.3 x full-duplex flow control
Desktop
LED indicators per port: Speed/Link/Activity
Loop LED: Loop
Per system: Power/Status
Dimensions (H x W x D) 26 x 160 x 110 mm
Weight (net): 0.45 kg
Weight (total weight) 0.522 kg
Operating temperature 0°C to 40°C (32°F to 104°F)
Relative humidity 10~95% non-condensing
CertificatesCE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC
Electromagnetic
Specifications
Class BJumbo Frame Packet 12K
Warranty 2 years
