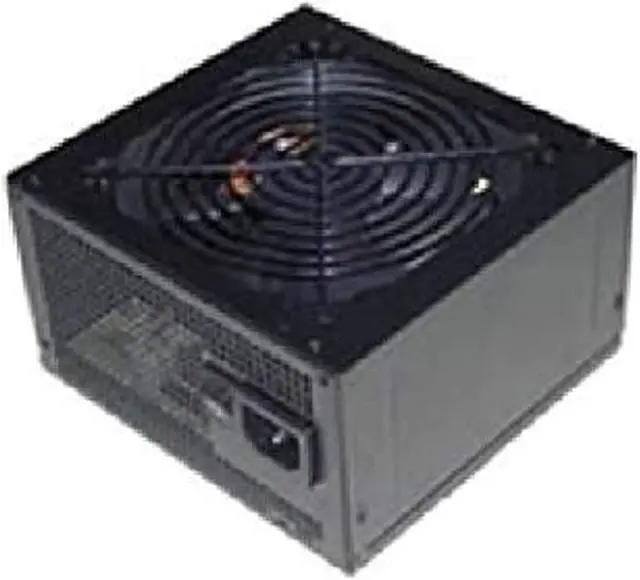

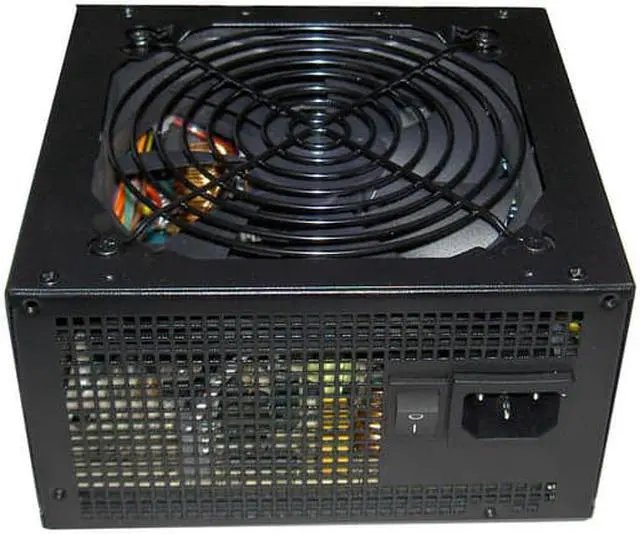

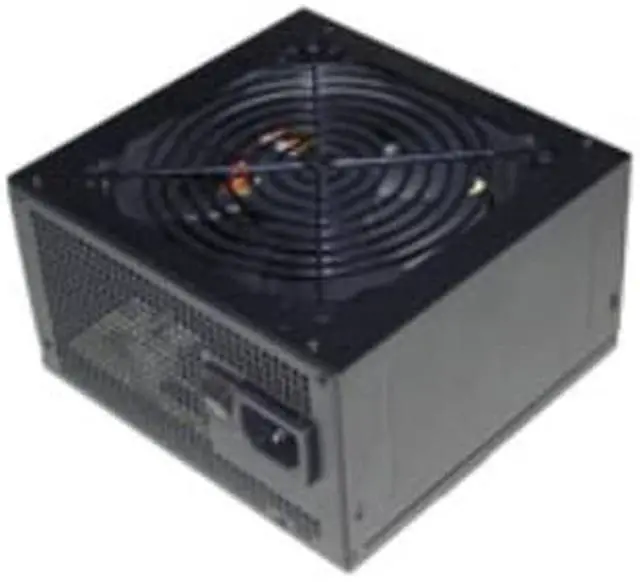

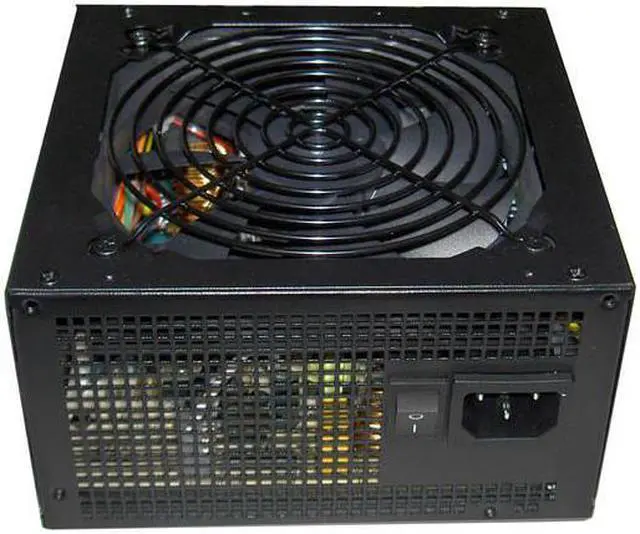

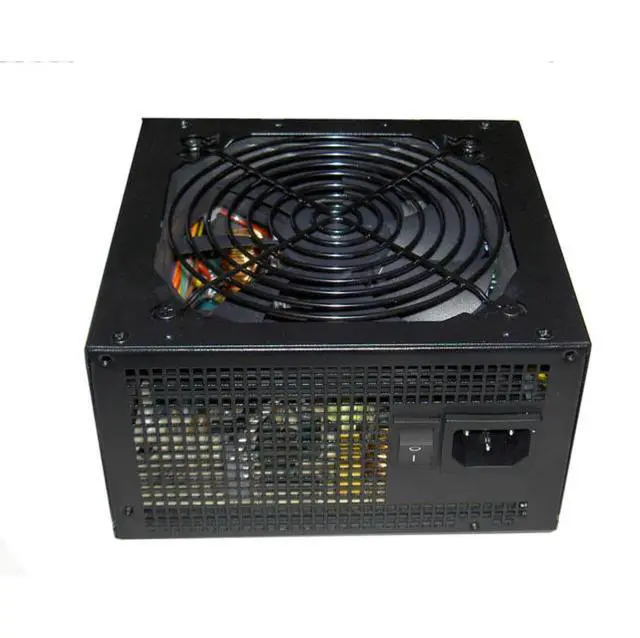

topower ep-500pm 500w atx12v v2.3 power supply
- topower ep-500pm 500w atx12v v2.3 power supply
+
+
Overview
Specs
Reviews
Specifications Mfr Part Number: EP-500PM
Features: 75% Efficiency
Rating Maximum Power: 500W
Fans: 1x 120 mm Cooling
Fan Input: Input
Voltage: 115 ~ 230 V
Input Frequency Range: 50/60Hz
Input Current: 10 ~ 6
A Output: + 3.3V @ 24A, +5V @ 24A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0.5A, +5VSB @ 2.5A
Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin ATX Power Connector, 1x 6+2pin PCI-Express Connector, 1x 6pin PCI-Express Connector, 6x SATA Connectors, 6x 4pin Molex Connectors, 2x
FDD Connectors Approvals: UL, FCC
Form Factor: ATX12V 2.3
Dimensions (WxLxH): 6.0 x 5.5 x 3.3 inch / 150.0 x 140.0 x 85.0 mm
Weight: 4.0 lbs / 1.81 kg
Features: 75% Efficiency
Rating Maximum Power: 500W
Fans: 1x 120 mm Cooling
Fan Input: Input
Voltage: 115 ~ 230 V
Input Frequency Range: 50/60Hz
Input Current: 10 ~ 6
A Output: + 3.3V @ 24A, +5V @ 24A, +12V1 @ 20A, +12V2 @ 20A, -12V @ 0.5A, +5VSB @ 2.5A
Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin ATX Power Connector, 1x 6+2pin PCI-Express Connector, 1x 6pin PCI-Express Connector, 6x SATA Connectors, 6x 4pin Molex Connectors, 2x
FDD Connectors Approvals: UL, FCC
Form Factor: ATX12V 2.3
Dimensions (WxLxH): 6.0 x 5.5 x 3.3 inch / 150.0 x 140.0 x 85.0 mm
Weight: 4.0 lbs / 1.81 kg
