NexCOBOT Industrial PC | EtherCAT I/O Module NEIO-1811 32-CH Digital Input/Output EtherCAT Slave Module

Unlock advanced control with the NexCOBOT NEIO-1811, a 32-CH Digital Input/Output EtherCAT Slave Module designed for high-performance industrial automation.

Versatile Industrial Computer Module for Automation

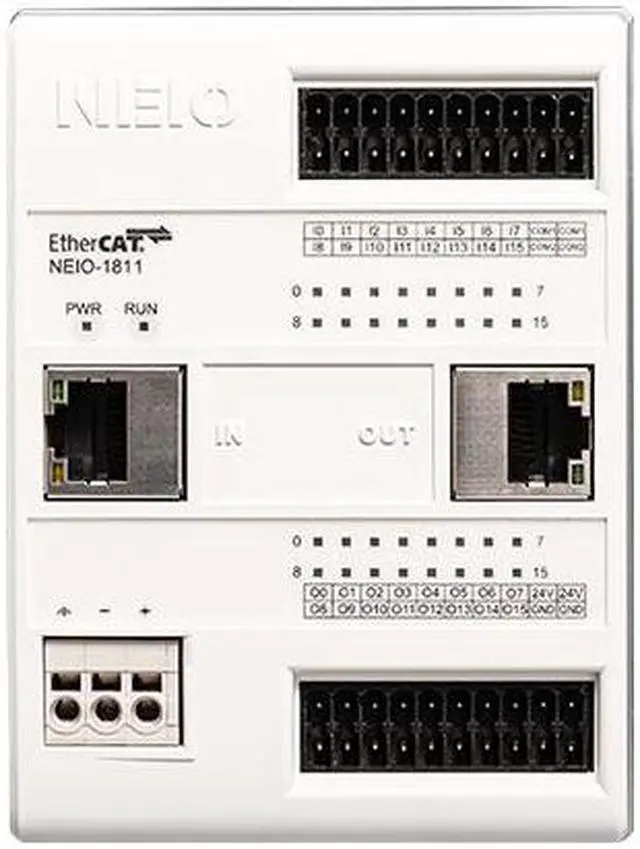

Palm-Sized Industrial Computer Powerhouse: The NexCOBOT EtherCAT NEIO-1811 is a compact yet robust industrial computer module designed for versatile automation applications. With 16 channels of digital input and 16 channels of digital output, this module offers exceptional flexibility for managing industrial automation and industrial display systems. It complies with IEC 61131-2 standards and features high-grade isolation, making it a reliable choice for complex industrial environments.

Reliable Connectivity and Efficient Communication

Smart Daisy-Chain Design for Industrial Automation: The NEIO-1811's daisy-chain design enables seamless integration into existing systems, facilitating efficient communication between devices. Its dual RJ-45 bus interfaces, compatible with the EtherCAT protocol, allow for a maximum distance of 100 meters between stations, offering the versatility required for industrial automation. With onboard LED indicators and detachable screw terminals, this module provides intuitive installation and real-time monitoring, ideal for industrial display systems and factory automation.

Robust Design and Exceptional Compatibility

Built for Tough Industrial Conditions: The NEIO-1811 is designed to withstand harsh industrial environments, with an operating temperature range from -5 °C to 60 °C and a storage temperature range from -40 °C to 85 °C. It has passed the EtherCAT Conformance Test conducted by the EtherCAT Technology Group (ETG), ensuring excellent compatibility with other EtherCAT devices. Its 2.5 kV isolation for both digital inputs and outputs provides an added layer of safety and reliability, crucial for industrial computer applications.

Specifications

Digital Input:

Number of Inputs: 16

Input Type: PNP/NPN

Input Voltage: 24 VDC

On-State Voltage, 1

- Sinking logic (PNP): 1130 V (IEC 61131-2, type3)

- Sourcing logic (NPN): 015 V

Off-State Voltage,0

- Sinking Logic (PNP): -35 V (IEC 61131-2, type3)

- Sourcing Logic (NPN): 1730 V

Input Filter: 3 ms (±15%)

Isolation Protection: 2.5 kV

Digital Output:

Number of Outputs: 16

Output Type: NPN

Output Voltage: 24 VDC

Load Type: Resistive, Capacitive, Inductive

Max. Output Current: 500 mA/CH

Switching Times:

- Off to On: 100 s

- On to Off: 150 s

Isolation Protection: 2.5 kV

Communication:

Protocol: EtherCAT

Bus Interface: 2 x RJ-45

Media: Ethernet cable (min. CAT5), shielded

Distance Between Stations: maximum. 100m (100BASE-TX)

Data Transfer Rate: 100 Mbps

Power Requirements:

DC Input Range: 24 VDC (±20%)

Mechanical Information:

Dimensions (W x H x D): 77.8 x 104.5 x 51.84 mm

Mounting: Din-rail (35 mm mounting clip)

Environment:

Operating Temperature: -5 °C60 °C

Storage Temperature: -40°C85°C

Relative humidity: 5 95% (non-condensing)

Shock: IEC 60068-2-27

Vibration: IEC 60068-2-6, IEC 60068-2-64

Enclosure type rating: IP20

Certifications:

CE/FCC Class A

Warranty

2 years global warranty
