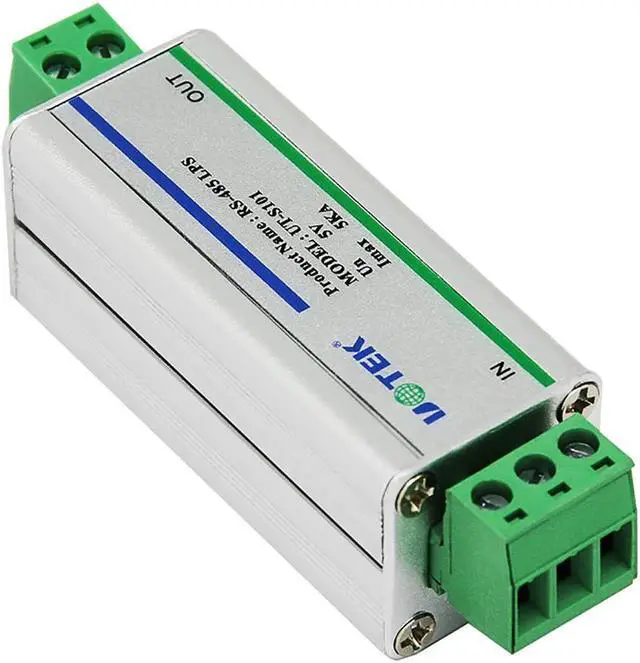

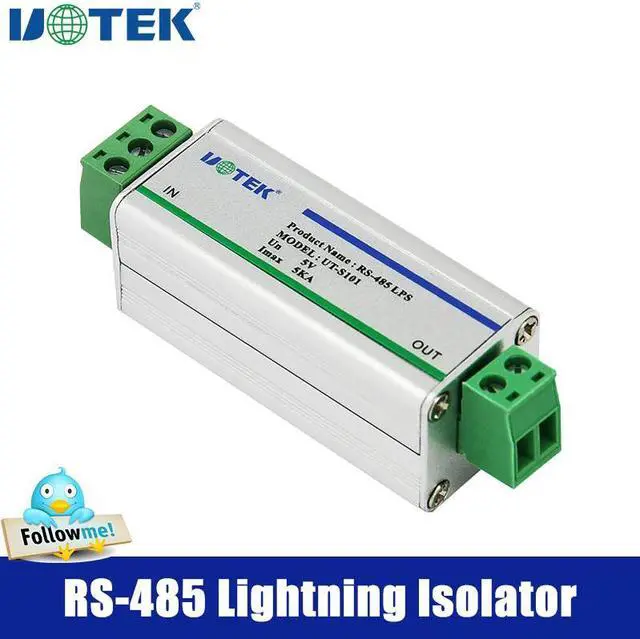

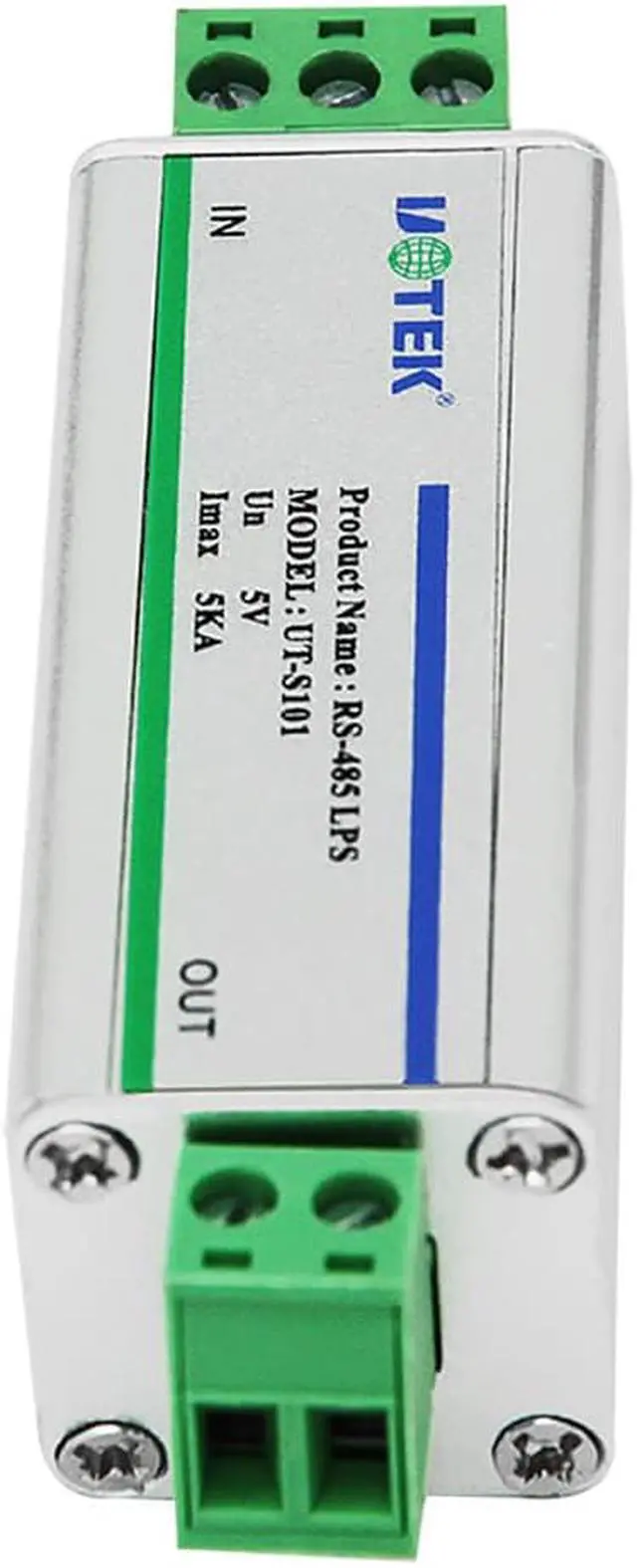

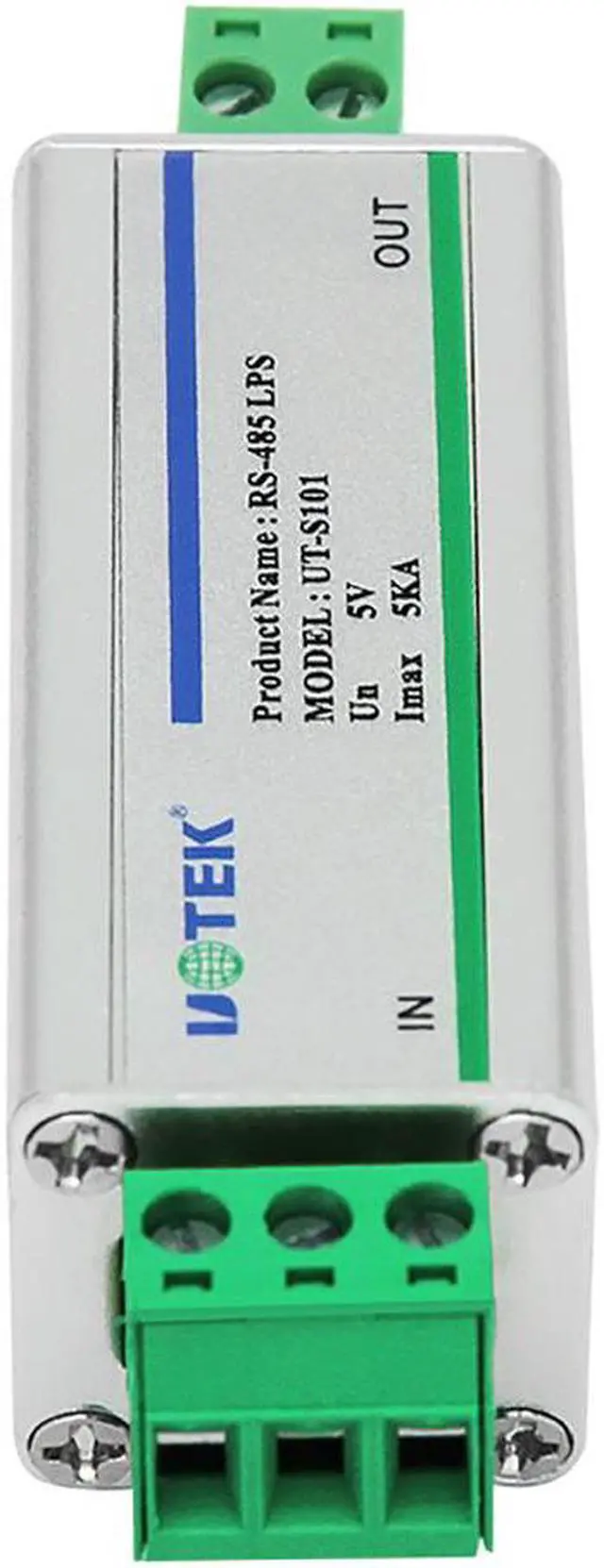

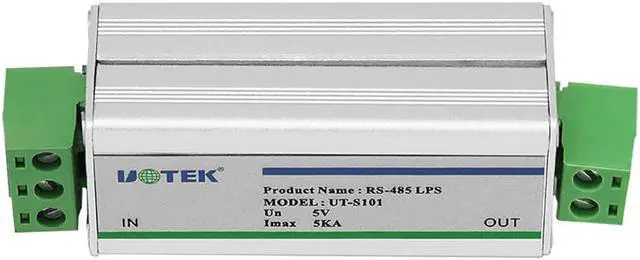

UOTEK Industrial Grade RS-485 Lightning Isolator Arrester RS485 Isolation Module Surge Protector ESD Level4 IP30 5KA 6V DC 4.2V AC 10M BPS Multi-protection UT-S101
- Multi-protection
- Huge current through capacity
- Low limiting voltage
- Fast response time
- High transmission rate
+
+
Overview
Specs
Reviews
Parameter:
Rating voltage Un: 5V
Operating voltage (Max DC) Uc: 6V
Operating voltage (Max AC) Uc: 4.2V
Current rating: 0.12A
Nominal discharging current(8/20 us)In: 3KA
Max discharging current In: 5KA
Limiting voltage Upl: 11V
Impedance Ro: 10 Ohm
Capacitance Cll: 80pF
Capacitance Cpe: 140pF
Response time Ta: <1 ns
Operating temperature: -40~85
Testing standard: IEC61000-4-5
Testing level: X
Insulation resistance: >1M
Insection loss (dB): 0.5 dB
Housing protection: IP30
Dimension: 25 x 25 x 82mm
Material: shielded aluminum
Connect: terminal block (RS-485)
ESD protection level: 4
Transmission rate (BPS): 10M
Rating voltage Un: 5V
Operating voltage (Max DC) Uc: 6V
Operating voltage (Max AC) Uc: 4.2V
Current rating: 0.12A
Nominal discharging current(8/20 us)In: 3KA
Max discharging current In: 5KA
Limiting voltage Upl: 11V
Impedance Ro: 10 Ohm
Capacitance Cll: 80pF
Capacitance Cpe: 140pF
Response time Ta: <1 ns
Operating temperature: -40~85
Testing standard: IEC61000-4-5
Testing level: X
Insulation resistance: >1M
Insection loss (dB): 0.5 dB
Housing protection: IP30
Dimension: 25 x 25 x 82mm
Material: shielded aluminum
Connect: terminal block (RS-485)
ESD protection level: 4
Transmission rate (BPS): 10M
