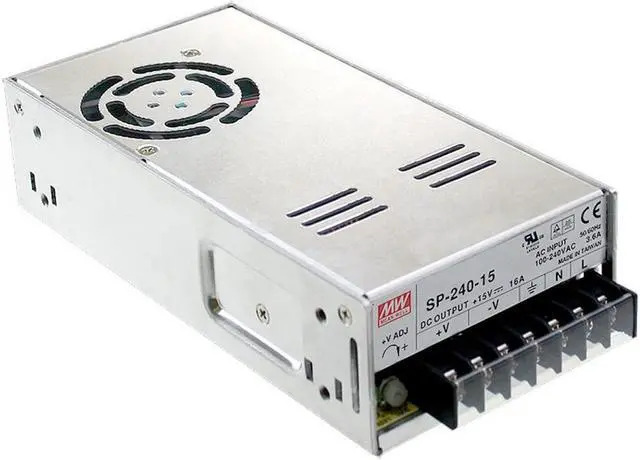

[PowerNex] Mean Well SP-240-7.5 7.5V 32A 240W Single Output with PFC Function Power Supply
- Output Voltage: 7.5V
- Approx. Wattage: 240W
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Warranty: 3 Years Warranty
+
+
Overview
Specs
Reviews
Features:
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Optional remote ON/OFF control
100% full load burn-in test
3 years warranty

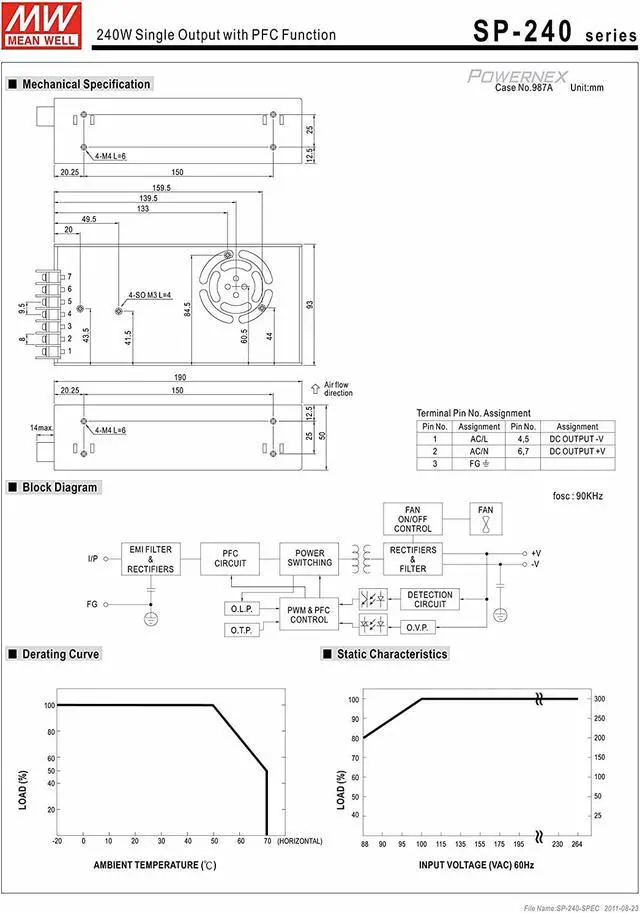

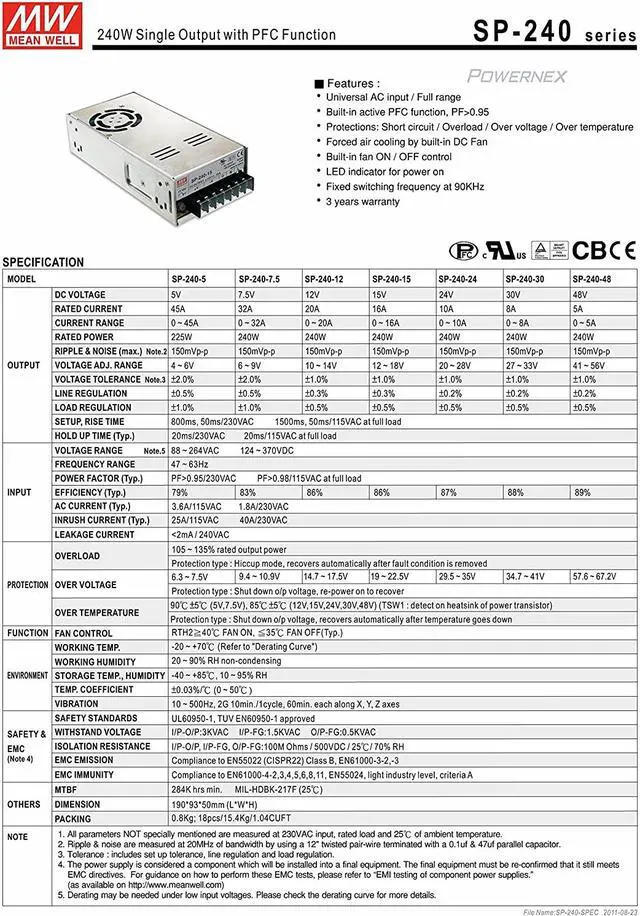

General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:88~264VAC; 124~370VDC
AC inrush current (max.):Cold start, 40A at 230VAC
DC adjustment range:±15% rated output voltage
Overload protection Range:105%~135%
Overload protection Type:Hiccup mode, auto-recovery
Over voltage protection Range:120%~150%
Over voltage protection Type:Shut off, AC recycle to re-start
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature:-20~+70°C
Safety standards:UL60950-1, TUV EN60950-1,
EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Connection:7P / 9.5mm pitch terminal block with cover
Dimension (LxWxH):190x 93x50
Case No.:987A
Packing:18pcs/15.4kg
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Optional remote ON/OFF control
100% full load burn-in test
3 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:88~264VAC; 124~370VDC
AC inrush current (max.):Cold start, 40A at 230VAC
DC adjustment range:±15% rated output voltage
Overload protection Range:105%~135%
Overload protection Type:Hiccup mode, auto-recovery
Over voltage protection Range:120%~150%
Over voltage protection Type:Shut off, AC recycle to re-start
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature:-20~+70°C
Safety standards:UL60950-1, TUV EN60950-1,
EMC standards:EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
Connection:7P / 9.5mm pitch terminal block with cover
Dimension (LxWxH):190x 93x50
Case No.:987A
Packing:18pcs/15.4kg
