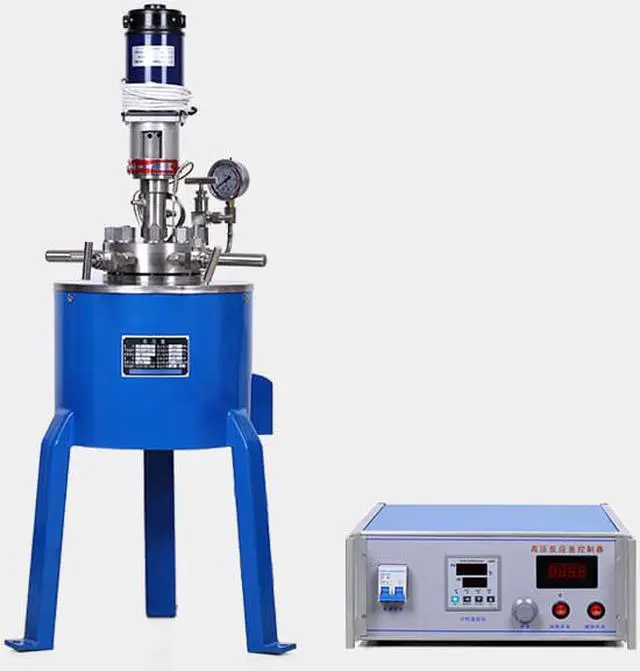

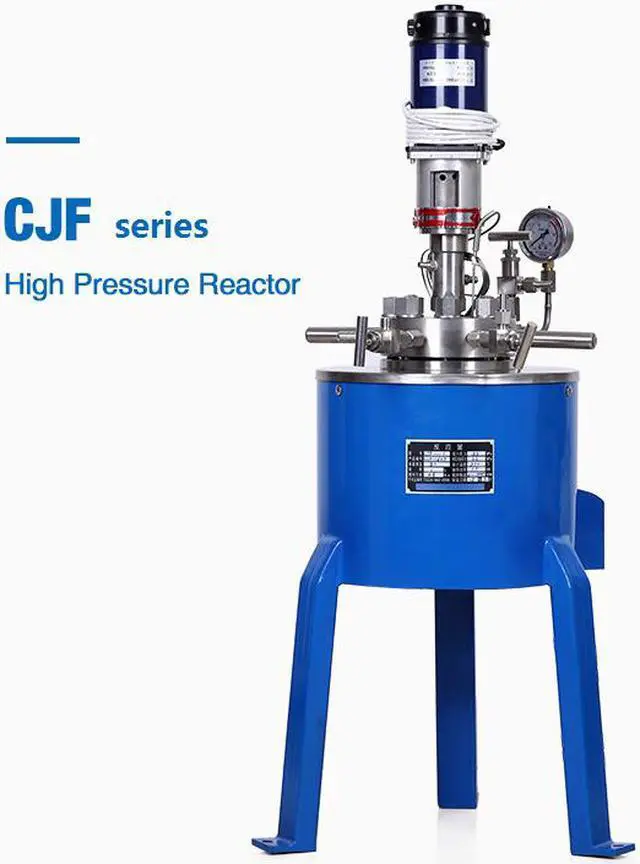

HNZXIB 500ml High Pressure Reactor 22MPa CJF series Automated Stirred Autoclave Stainless Steel 350°C Heating Temperature Control
- Capacity: 500ml
- Temperature: 350°C (662°F)
- Pressure: 22Mpa (220Bar)
- Material: Stainless steel
- Stirring Motor
+
+
Overview
Specs
Reviews
> > >

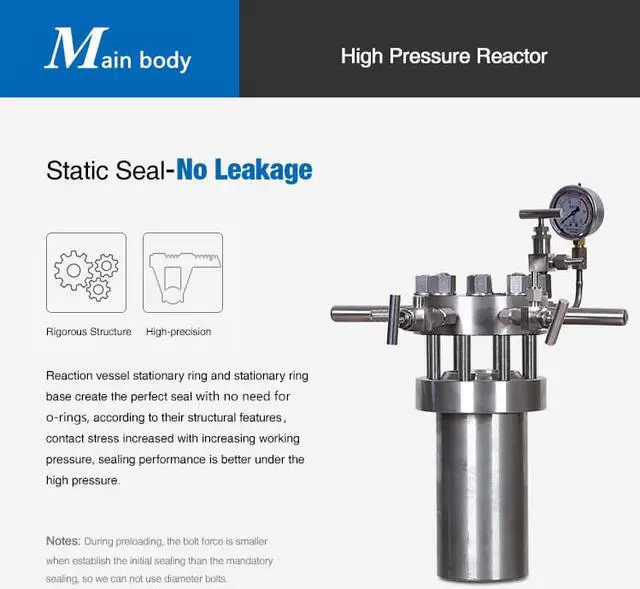

Product introduction: CJF series is widely used for reaction vessal for gas-liquid, liquid-liquid, liquid-solid or gas-liquid solid three phase chemical material. CJF series adopt static sealing structure, and using magnetic coupling connection between agitator and motor drive, which thoroughly solve the leakage problem caused by dynamic sealing and agitation. Therefore, CJF series are very suitable for various chemical medium which is inflammable, explosive, toxic, strong permeation, precious medium to proceed stirring reaction. It is an ideal reactor without leakage for Vulcanization, Fluorination, Oxidation in petroleum, chemical industry, organic synthesis, polymer polymerization, food process, etc. > > >
Technical Data Setting Pressure: 22Mpa / 220bar
Setting Temperature: 350°C / 662°F Accuracy of
Temperature Control: ±1°C
Heating Method: General electric heating, others are far-infrared, thermal oil, steam, circulating water, etc.
Stirring Torque: 120 N.
cm Heating Power: 0.6 kW

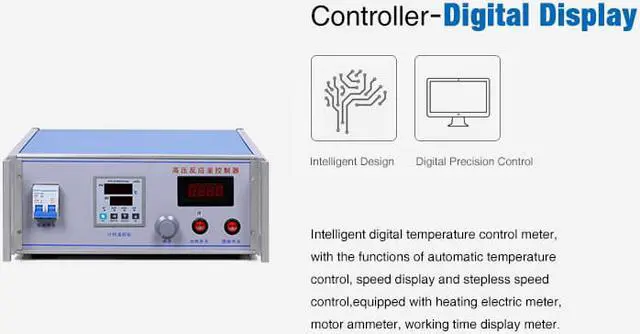

Temperature Controller: Real-time display and adjust the speed, temperature, time, with standard PID automatic temperature adjustment meter.
Working environment: Ambient Temperature 0-50°C, Relative Humidity 30-80%.
Voltage: 220V 50/60Hz Ceramic liner or PTFE liner is optional, Bottom drain valve is available, please ask seller for quotation.
Product introduction: CJF series is widely used for reaction vessal for gas-liquid, liquid-liquid, liquid-solid or gas-liquid solid three phase chemical material. CJF series adopt static sealing structure, and using magnetic coupling connection between agitator and motor drive, which thoroughly solve the leakage problem caused by dynamic sealing and agitation. Therefore, CJF series are very suitable for various chemical medium which is inflammable, explosive, toxic, strong permeation, precious medium to proceed stirring reaction. It is an ideal reactor without leakage for Vulcanization, Fluorination, Oxidation in petroleum, chemical industry, organic synthesis, polymer polymerization, food process, etc. > > >
Technical Data Setting Pressure: 22Mpa / 220bar
Setting Temperature: 350°C / 662°F Accuracy of
Temperature Control: ±1°C
Heating Method: General electric heating, others are far-infrared, thermal oil, steam, circulating water, etc.
Stirring Torque: 120 N.
cm Heating Power: 0.6 kW
Temperature Controller: Real-time display and adjust the speed, temperature, time, with standard PID automatic temperature adjustment meter.
Working environment: Ambient Temperature 0-50°C, Relative Humidity 30-80%.
Voltage: 220V 50/60Hz Ceramic liner or PTFE liner is optional, Bottom drain valve is available, please ask seller for quotation.
