Quantum Project Mini Linux Development Board Core Board Expansion Board

Be the first to review this product...

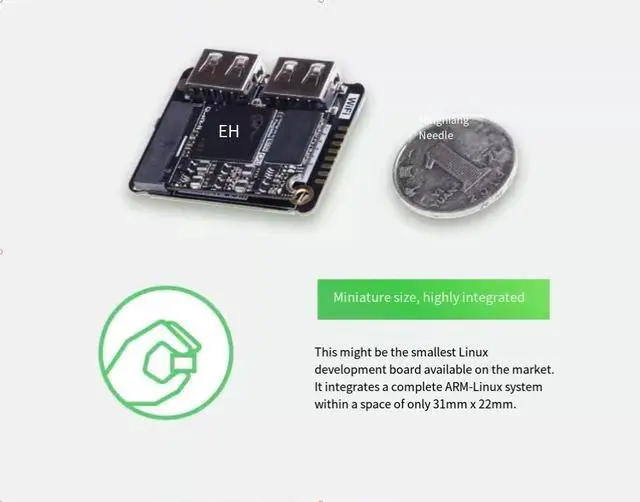

  • Quark-N might be the smallest Linux development board on the market and a magic tool for developing personal servers and intelligent voice assistant robots. The 6-layer high-density gold-plated PCB design integrates a complete ARM-Linux system (CPU, DDR, eMMC) within a 2x3cm space. The board leads out most of the GPIOs through the M.2Key-A gold finger interface, minimizing the difficulty of the base plate design. You can easily design your own base plate with two layers of boards to achieve the creation of your interesting works.

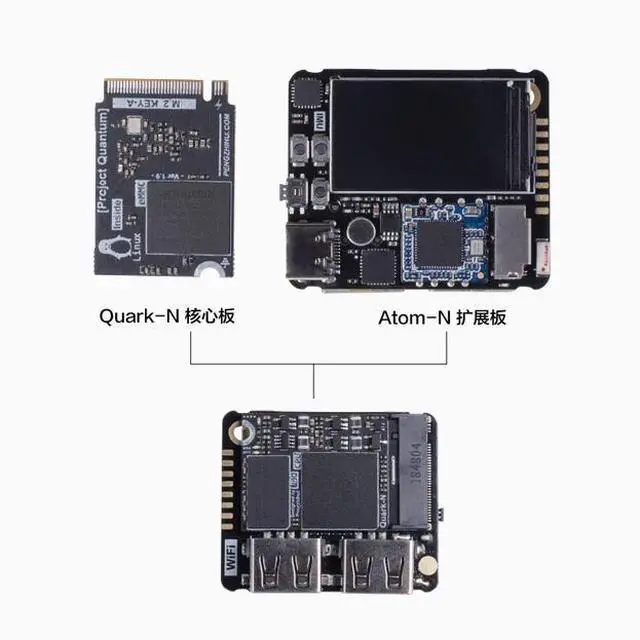

  • Atom-n, whose Chinese name is Atom, is the supporting expansion board of QuarK-N. It is connected to Quark through the M.2 interface. Compared with the more conventional card computer, a row of gold fingers are led out on Atom-N to enable IO expansion, extending interfaces such as SP1, I2C, UART, and GPIO, which is convenient for completing one's own design. The addition of a microphone, MPU6050 motion sensor, four on-board keys (GPIO-KEY, Uboot, Recovery, Res
+
+
Overview
Specs
Reviews

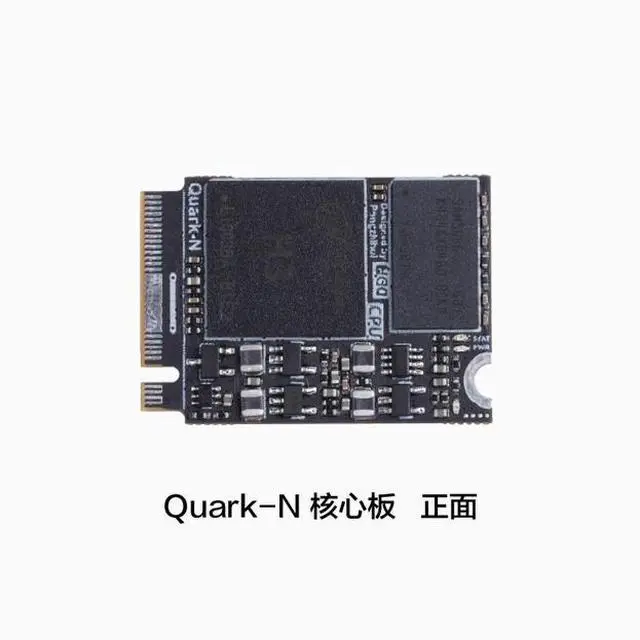

Quark-N core board
Processor: Allwinner H3, Quad-core Cortex-A7 Up@ 1GHz
Memory: 512MB LPDDR3
Storage: 16GB eMMc
Interfaces: Ethernet, SP1, I2C, UART
Reusable GPIO
MIC, LINEOU
pcb: 6-layer high-density gold-plated design
Operating temperature: 0-80°C
Size: 31mmx22mm

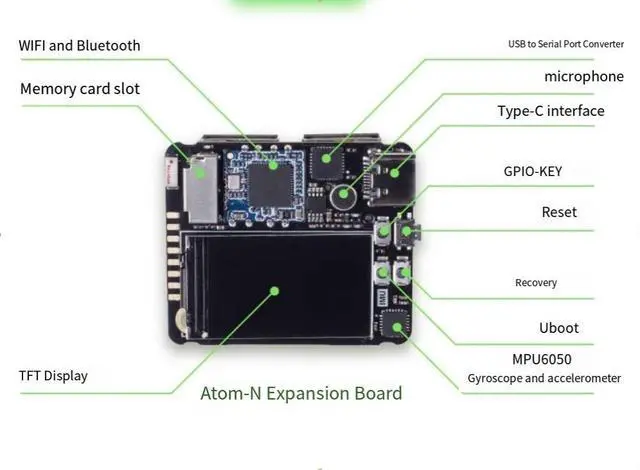

Atom-N expansion board
Slot: M. 2 interface for Quark-N7 Up@1GHZ
USB: USB x2 Type-Cx1
Wireless link: RTL8723BU
Wi-Fi: IEEE 802.11 b/g/n 2.4GH z
Bluetooth: BT V 2.1 /BT V 3.0 /BT V 4.0

On-board: Microphone x1
MPU6050 motion Sensor (gyroscope, acceleration sensor)x1
Keys x4(GPIO-KEY, Uboot, Recovery, Reset)
TFT display x1
Storage: MicroSD card slot
Size: 40mmx35mm
