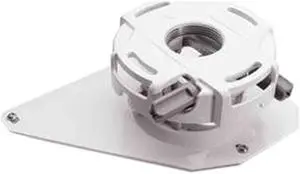

Specifications: Maximum Load Capacity: 75.00 lbs.
Height: 2.8"
Width: 7.5"
Depth: 7.5"
Additional Information:
Pitch: +/-16.5 Degrees
Roll: +/-7.5 Degrees
Yaw: +/-41 Degrees
Cable routing through body
Lock-It security hardware deters theft
Eight interchangeable legs to reach wider mounting points
Mates to standard 1.5" NPT or directly to structural surfaces
Now includes Lock-It security leveling barrel for even greater
Certifications & Standards:
OSHPD
UL
DSA
Specifications: Length of The Hanger 116 mm - 578 mm
Adjustable Length 398 mm - 578 mm (with increments of 22.50 mm)
Projectors' Hanging Holes 300 mm (L) x 250 mm (W)
Vertical and Swing angle + / -10°
Horizontal Angle 360°
Focal Length: Focal distance (f) : 45.6 mm ~ 73.8 mm
Throw Ratio: Throw ratio 16:10 aspect ratio *
WUXGA 2.8 – 4.6:1 for PT-MZ770/MZ670/MZ570/EZ770Z
WXGA 2.8 – 4.6:1 for PT-MW730/MW630/MW530/ EW730Z
Throw ratio 4:3 aspect ratio *
XGA 2.8 – 4.6:1 for PT-EX800Z
Features: Applicable projector [Group A]: PT-EZ770Z series : PT-EZ770Z/EZ770ZL/EW730Z/EW730ZL/ EX800Z/EX800ZL
Applicable projector [Group B] : PT-MZ670 series : PT-MZ670/MZ670L/MZ570/MZ570L/MW630/ MW630L/MW530/MW530L PT-MZ770 series : PT-MZ770/MZ770L/MW730/ MW730L
Applicable projectors : PT-MZ880 series : PT-MZ880/MZ780/MZ680 For these projectors see the individual spec files of the projectors.
Dimensions (H x W x D): 108 x 108 x 197 mm [4-1/4 x 4-1/4 x 7-3/4 in (at maximum length)]
Specifications: Adjustments: Roll: 4 degree, Pitch: 25 degree, Yaw: 360 degree
Certifications: UL Listed
Color: White
Overall Dimensions (H x W x D): 1.8" x 6.5" x 5.5" (44 x 165 x 140 mm)
Solution Type: Universal
Weight Capacity: 50 lbs (22.7 kg)
Specifications: Weight limitations of cart’s head-unit assembly as follows:
SV41 and SV42 SLA LCD carts = 23 lbs / 10.4 kg
SV41 and SV42 laptop carts (SLA and LiFe) = 14 lbs / 6.4 kg
SV42 LiFe LCD carts = 19 lbs / 8.6 kg
Attaches to the cart’s worksurface via included head-unit bracket, or to the back of the cart using included t-slot bracket
* If attaching to Ergotron Wall Track, separately ordered Track Mount Bracket (97-091) is required
