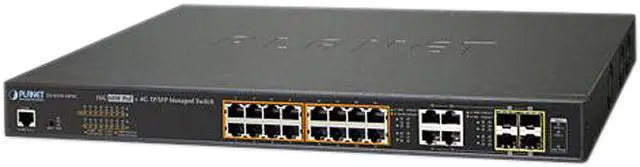

Planet GS-4210-16P4C 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP / SFP Combo Managed Switch / 220W
- 8K MAC Address Table
- Managed
+
+
Specs
Reviews
Learn more about the PLANET GS-4210-16P4C
| Brand | PLANET |
|---|---|
| Model | GS-4210-16P4C |
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX / 100BASE-FX IEEE 802.3z Gigabit SX / LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at High Power over Ethernet RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
|---|---|
| Network Management Type | Managed |
| Primary Ports | 20 x 10/100/1000BASE-T Gigabit RJ45 copper with 16-port IEEE 802.3at / af PoE injector 4 x 100/1000BASE-X mini-GBIC / SFP slots, shared with port-17 to port-20 compatible with 100BASE-FX SFP |
|---|
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| Jumbo Frames | 10KB |
| Security | IEEE 802.1X - Port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS / TACACS+ user access authentication IP-MAC port binding MAC filtering Static MAC address DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
|---|---|
| QoS | Yes |
| Port Mirroring | Yes |
| LEDs | PWR, SYS, LNK / ACT, PoE-in-Use, 1000, FAN 1 Alert, FAN 2 Alert, PoE PWR Alert |
| Power | Power Requirements: AC 100 ~ 240V, 50/60 Hz, auto-sensing Power Consumption / Dissipation: 251 watts (max.) / 861.2 BTU PoE Power Output: Per port 52V DC, 30.8 watts (max.) |
| Dimensions | 1.75" x 17.32" x 11.81" |
|---|---|
| Weight | 9.11 lbs. |
| Temperature | Operating Temperature: 0 ~ 50 degree Celsius Storage Temperature: -20 ~ 70 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| First Listed on Newegg | December 28, 2018 |
|---|
